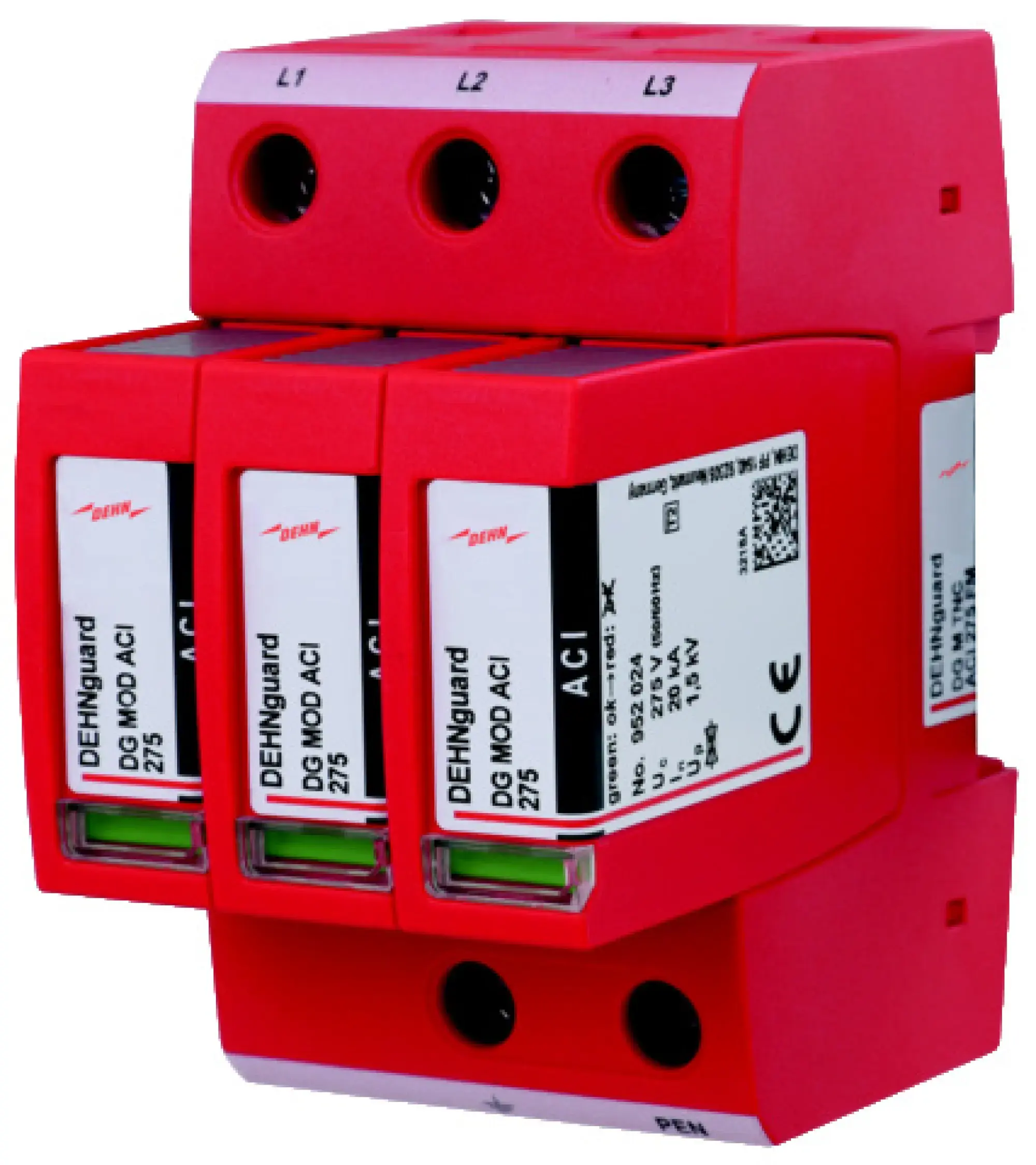

Dehn 952330 DEHNguard M surge arrester type 2 3-pole Uc 275V w. ACI technology
€349.88
% €619.04 (43.48% saved)
Available, delivery time: 2-3 Bussines days
Product number: WST8810209558
Manufacturer: DEHNP/N: 952330
Product information "Dehn 952330 DEHNguard M surge arrester type 2 3-pole Uc 275V w. ACI technology"
Dehn DEHNguard M surge arrester type 2 3-pole Uc 275V w. ACI technology
Dehn 952330
EAN
Description
Multipole DEHNguard M ACI surge arrester type 2 according to EN 61643-11 uses an integrated switch / spark gap combination making external fuses superfluous, consisting of a base part and plug-in protection modules. High reliability due to Thermo Dynamic Control SPD monitoring device. For protecting low-voltage consumer's installations against surges. For use in conformity with the lightning protection zone concept at the boundaries from 0B – 1 and higher.
Documents & Downloads
Product Attributes
Technical data
| P/N (Part Number) | 952330 |
|---|---|
| ETIM | EC000941 |
| Weight | 0.354261 kg |
| Weight (packaged) | 0.36 kg |
Designations
Energietechnik Surge Protection for Power Supply Systems Type 2 Surge Arresters
