952122

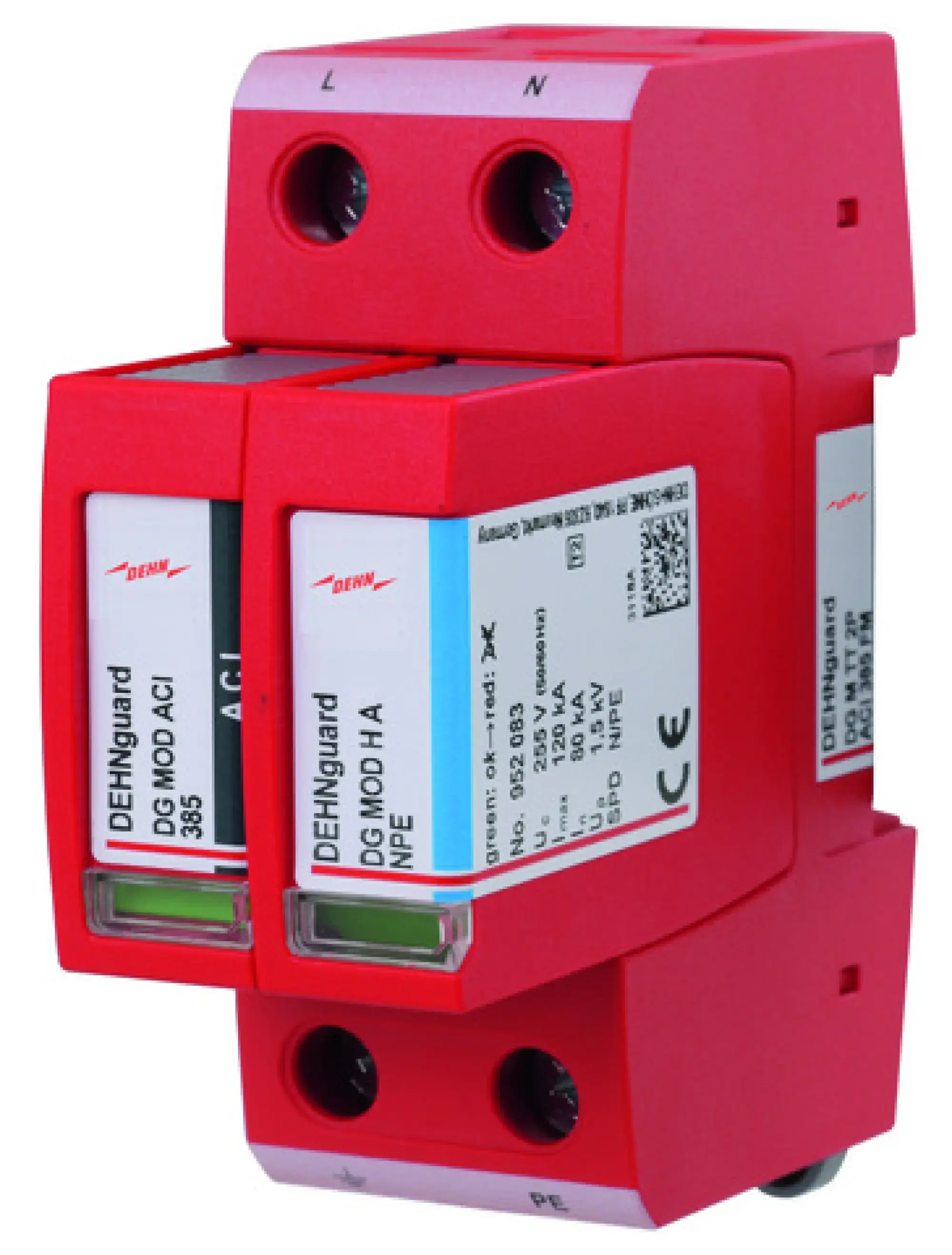

Dehn 952122 Surge arrester type 2 DEHNguard M 2-pole Uc 385V w. ACI technology
€196.31
% €347.36 (43.49% saved)
Available, delivery time: 2-3 Weeks
Product number: WST8810209564
Manufacturer: DEHNP/N: 952122
Product information "Dehn 952122 Surge arrester type 2 DEHNguard M 2-pole Uc 385V w. ACI technology"
Dehn Surge arrester type 2 DEHNguard M 2-pole Uc 385V w. ACI technology
Dehn 952122
EAN
Description
Multipole DEHNguard M ACI surge arrester type 2 according to EN 61643-11 with integrated ACI switch / spark-gap combination consisting of a base part and plug-in protection modules. High reliability due to Thermo Dynamic Control SPD monitoring device. For protecting low-voltage consumer's installations against surges. For use in conformity with the lightning protection zone concept at the boundaries from 0B – 1 and higher.
Documents & Downloads
Product Attributes
Technical data
| P/N (Part Number) | 952122 |
|---|---|
| ETIM | EC000941 |
| Weight | 0.252001 kg |
| Weight (packaged) | 0.3 kg |
Designations
Energietechnik Surge Protection for Power Supply Systems Type 2 Surge Arresters
