942220

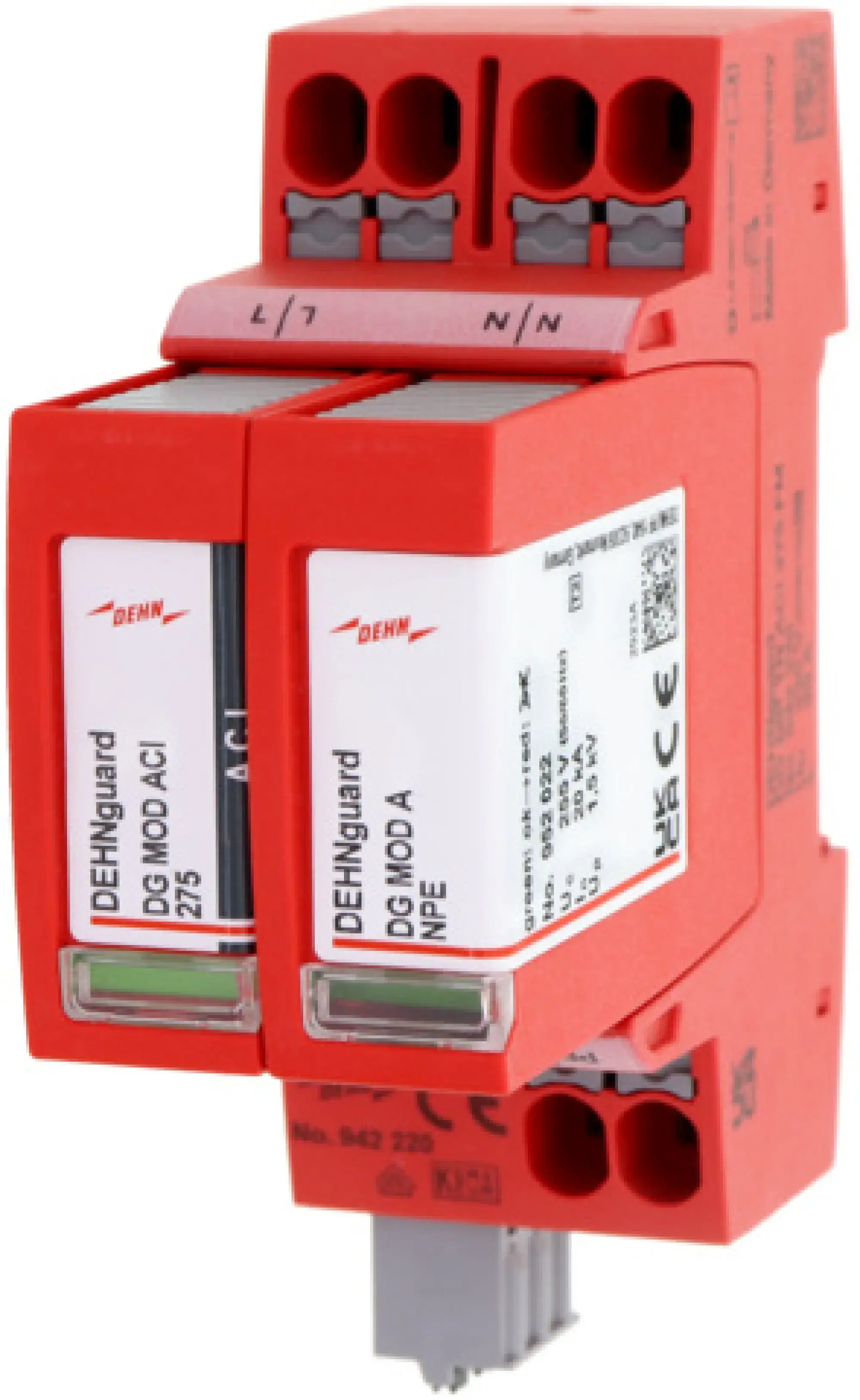

Dehn 942220 Type 2 surge arrester DEHNguard MP FM single-phase Uc 275V TN Systems
€169.86
% €300.48 (43.47% saved)
Available, delivery time: 2-3 Weeks
Product number: WST8810209555
Manufacturer: DEHNP/N: 942220
Product information "Dehn 942220 Type 2 surge arrester DEHNguard MP FM single-phase Uc 275V TN Systems"
Dehn Type 2 surge arrester DEHNguard MP FM single-phase Uc 275V TN Systems
Dehn 942220
EAN
Description
Multipole type-2 DEHNguard MP ACI surge arrester, according to EN 61643-11, with integrated ACI switch/spark-gap combination, consisting of a base part with plug-in protection modules and double-push-in connection clamp suitable for stub wiring and feed-through wiring. High device reliability due to Thermo Dynamic Control arrester monitoring. For protecting low-voltage consumer installations against surges. For installation in conformity with the lightning protection zone concept at the boundaries from 0B – 1 and higher.
Documents & Downloads
Product Attributes
Technical data
| P/N (Part Number) | 942220 |
|---|---|
| ETIM | EC000941 |
| Weight | 0.192171 kg |
| Weight (packaged) | 0.23 kg |
Designations
Energietechnik Surge Protection for Power Supply Systems Type 2 Surge Arresters
