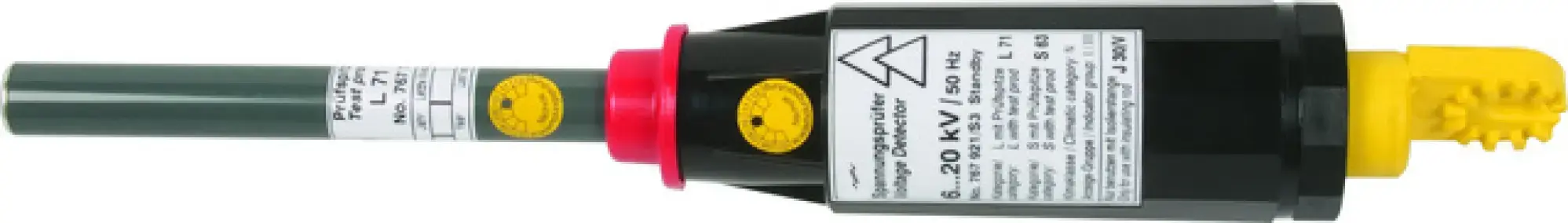

Dehn 767932 Indic. w. test pr. PHE III 10...30kV 50Hz cat. L w. standby func. a. gear coupling
€2,267.43
Available to order, delivery time: 2-3 Weeks
Art. No: WST8810209191 P/N: 767932 Manufacturer: DEHN
Secure Payment
Fast Shipping
Expert Advice
Product information "Dehn 767932 Indic. w. test pr. PHE III 10...30kV 50Hz cat. L w. standby func. a. gear coupling"
Dehn Indic. w. test pr. PHE III 10...30kV 50Hz cat. L w. standby func. a. gear coupling
Dehn 767932
EAN
Description
Capacitive PHE III voltage detector as a separate device in accordance with EN/IEC 61243-1 (DIN VDE 0682-411) for verifying safe isolation from supply voltage on all poles at the work location in accordance with EN 50110-1 (DIN VDE 0105-100) in electrical installations. With universal gear coupling in accordance with EN/IEC 60832 (DIN VDE 0682-211). Category "L" for overhead lines. Suitable for use in wet weather conditions. With visual and acoustic indication and self-testing element.
Documents & Downloads
Product Attributes
Technical data
| P/N (Part Number) | 767932 |
|---|---|
| ETIM | EC002783 |
| Weight | 1.07 kg |
| Weight (packaged) | 1.45 kg |
Designations
Arbeitsschutz Safety Equipment / Arc fault protection Voltage Detectors
