478129

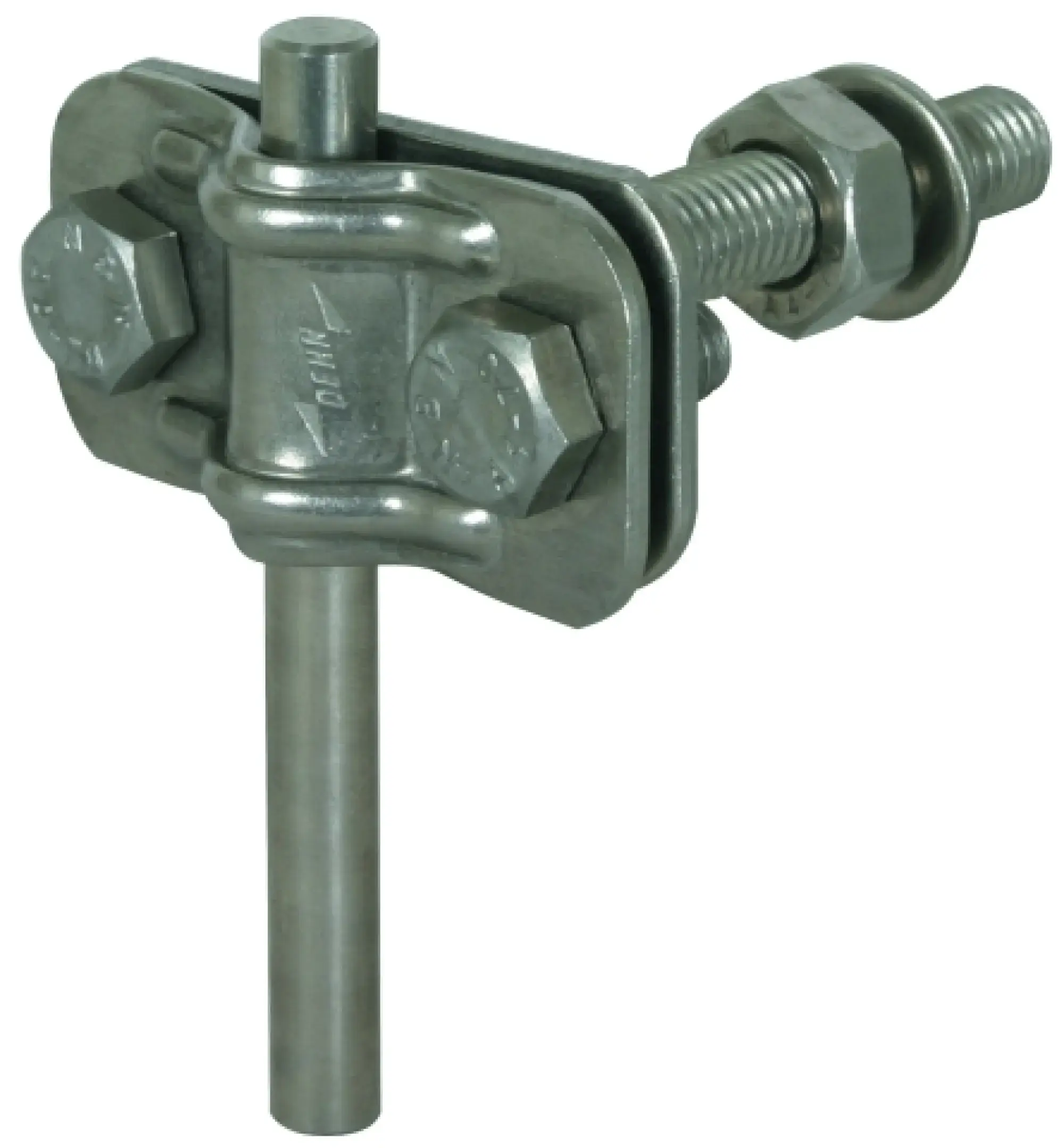

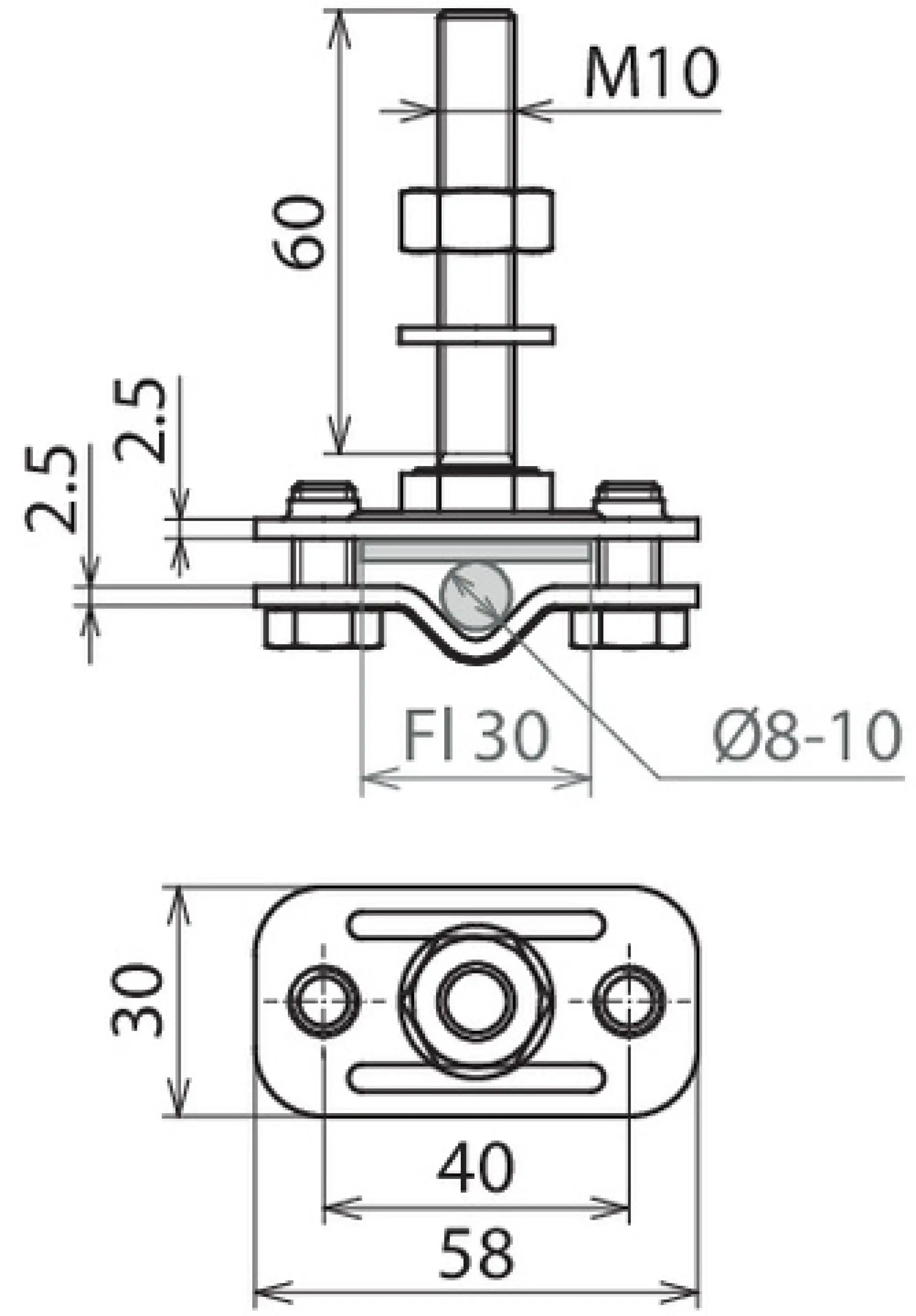

Dehn 478129 Terminal for fixed earthing point M10 f. Rd 8-10/Fl 30mm StSt (V4A)
€19.07
% €34.51 (44.74% saved)
Available, delivery time: 4-6 Bussines days
Product number: WST8810209730
Manufacturer: DEHNP/N: 478129
Product information "Dehn 478129 Terminal for fixed earthing point M10 f. Rd 8-10/Fl 30mm StSt (V4A)"
Dehn Terminal for fixed earthing point M10 f. Rd 8-10/Fl 30mm StSt (V4A)
Dehn 478129
EAN
Description
Connection clamps with threaded bolt for connecting round and flat conductors to fixed earthing terminals with an M10/12 thread. Also suitable for installation on the rear side of the fixed earthing terminal without connecting shaft, e.g. for a flat strip. Light design, with M10 connection thread.
Documents & Downloads
Product Attributes
Technical data
| P/N (Part Number) | 478129 |
|---|---|
| ETIM | EC000513 |
| Weight | 0.14 kg |
| Weight (packaged) | 0.15 kg |
Designations
Blitzschutz Earthing / Equipotential Bonding Fixed Earthing Terminals, Wall Bushings Lightning Protection / Earthing
