365127

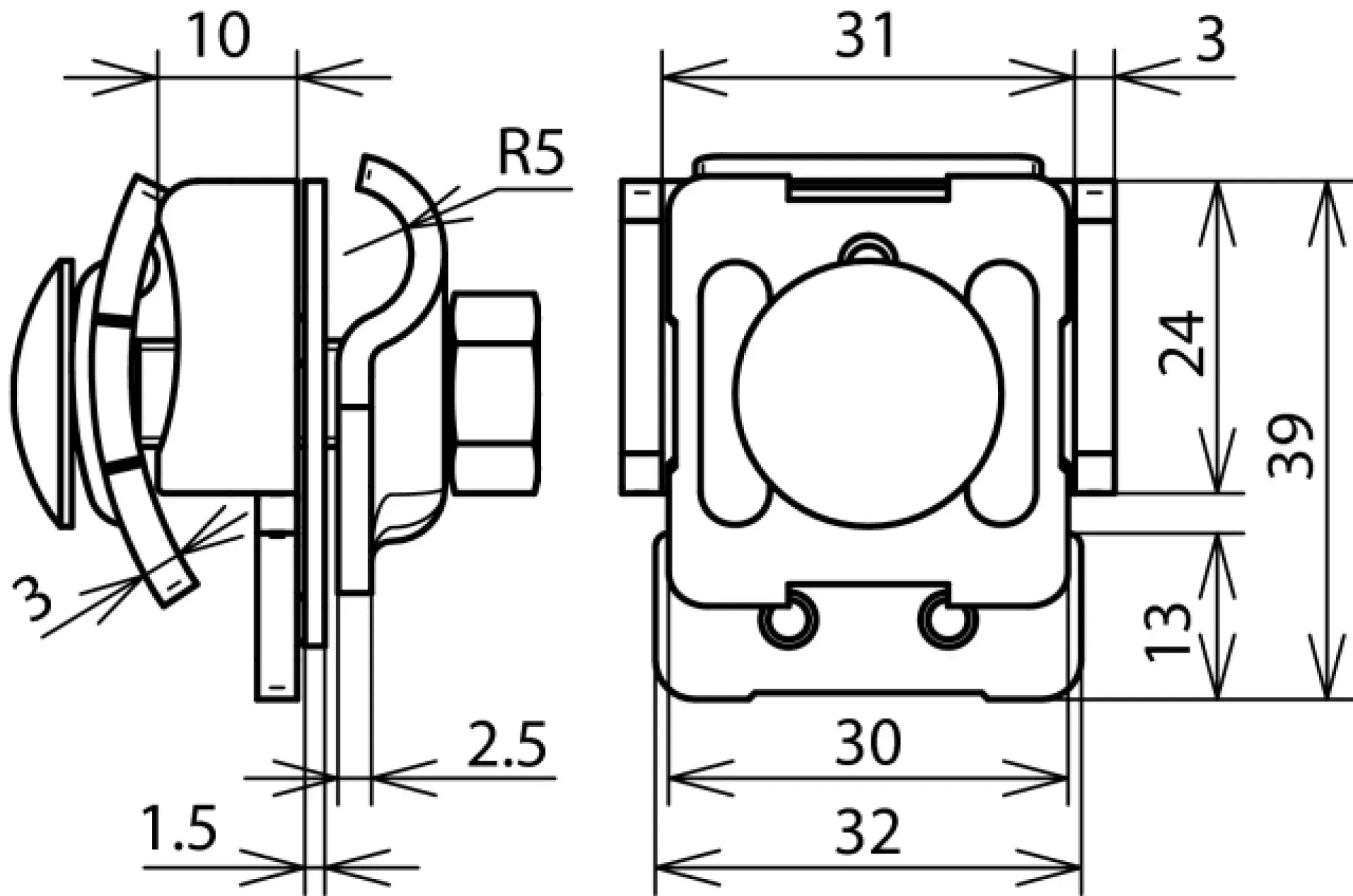

Dehn 365127 Bimetallic saddle clamp Cu-St/tZn clamping range 0.7-8mm for Rd 6-10mm
€7.10
% €12.85 (44.75% saved)
Available, delivery time: 2-3 Weeks
Product number: WST8810209948
Manufacturer: DEHNP/N: 365127
Product information "Dehn 365127 Bimetallic saddle clamp Cu-St/tZn clamping range 0.7-8mm for Rd 6-10mm"
Dehn Bimetallic saddle clamp Cu-St/tZn clamping range 0.7-8mm for Rd 6-10mm
Dehn 365127
EAN
Description
Seam clamp according to EN 62561-1, for connecting round conductors with seams. Bimetallic for St/tZn seams with intermediate plate (Cupal), longitudinal or cross conductor routing.
Documents & Downloads
Product Attributes
Technical data
| P/N (Part Number) | 365127 |
|---|---|
| ETIM | EC000513 |
| Weight | 0.104 kg |
| Weight (packaged) | 0.11 kg |
Designations
Blitzschutz Clamps, Connectors Lightning Protection / Earthing
