105351

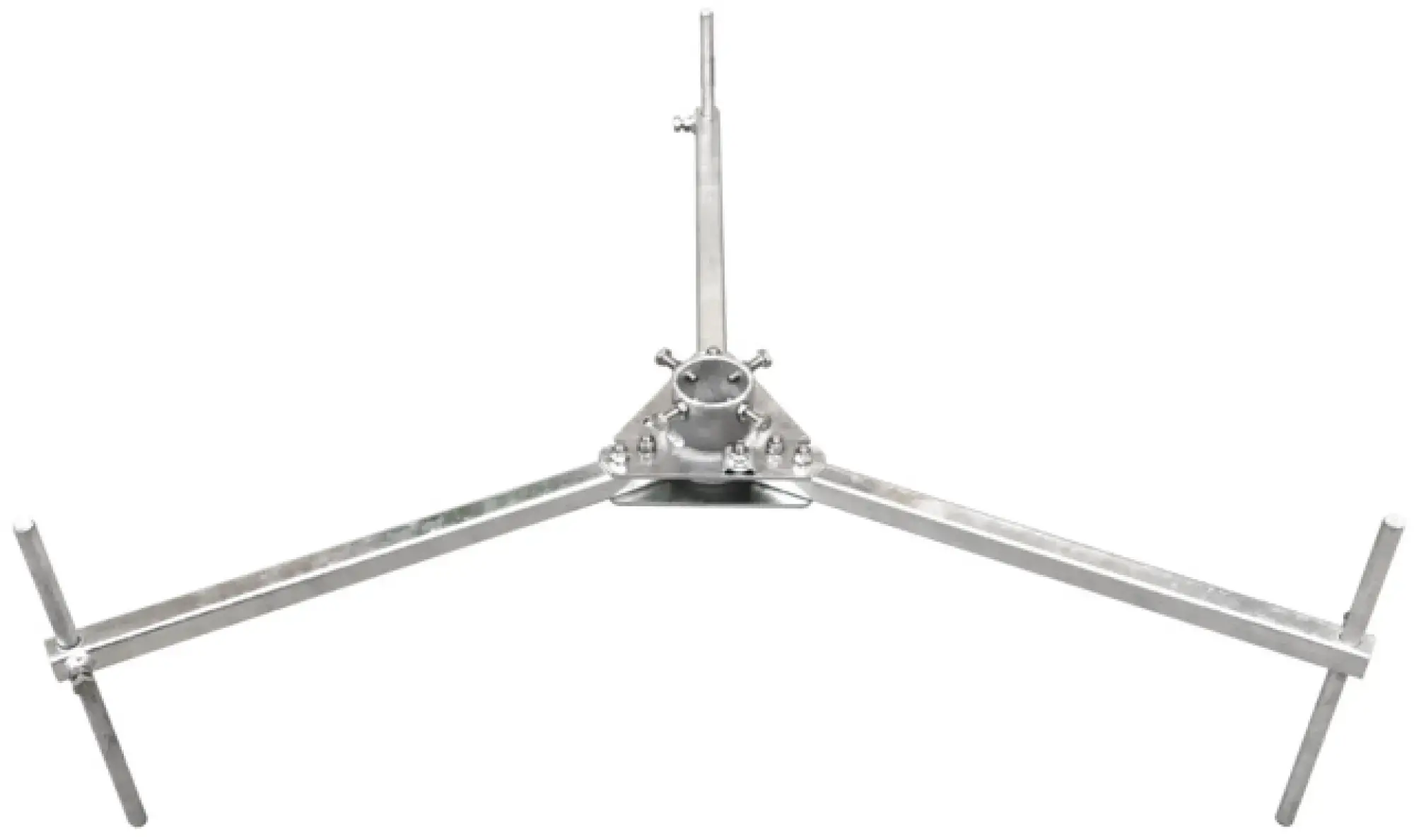

Dehn 105351 Tripod adjustable in height and hinged f. tubes D 50mm inclin. angle 10° St/tZn
€372.94
% €675.68 (44.81% saved)
Available, delivery time: 2-3 Bussines days
Product number: WST8810211442
Manufacturer: DEHNP/N: 105351
Product information "Dehn 105351 Tripod adjustable in height and hinged f. tubes D 50mm inclin. angle 10° St/tZn"
Dehn Tripod adjustable in height and hinged f. tubes D 50mm inclin. angle 10° St/tZn
Dehn 105351
EAN
Description

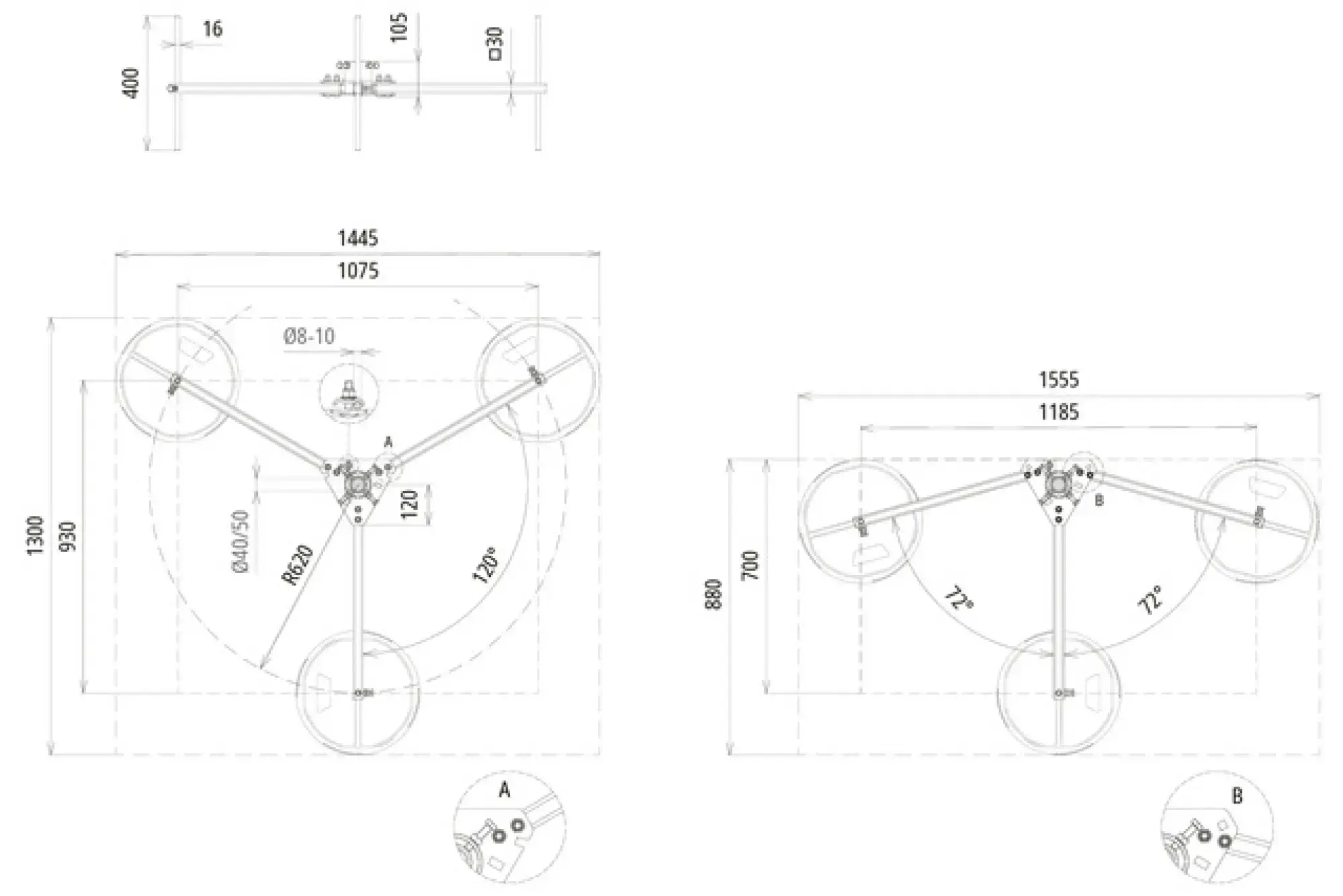

Tripod for installation of DEHNiso-Combi supporting tubes (D50 length 3200 mm). For erection with wedge-mounting concrete bases, without additional fixing on construction elements. Adjustable to the roof inclination up to max. 10°. Hinged design, especially for installing the HVI Conductor inside of the supporting tube. To keep within the bending radius of the HVI Conductor at the bottom of the tripod, put two concrete bases under and one on top of the brace.
Documents & Downloads
Product Attributes
Technical data
| P/N (Part Number) | 105351 |
|---|---|
| ETIM | EC001626 |
| Weight | 11.5 kg |
| Weight (packaged) | 11.5 kg |
Designations
Air-termination Rods, Accessories Blitzschutz Lightning Protection / Earthing
