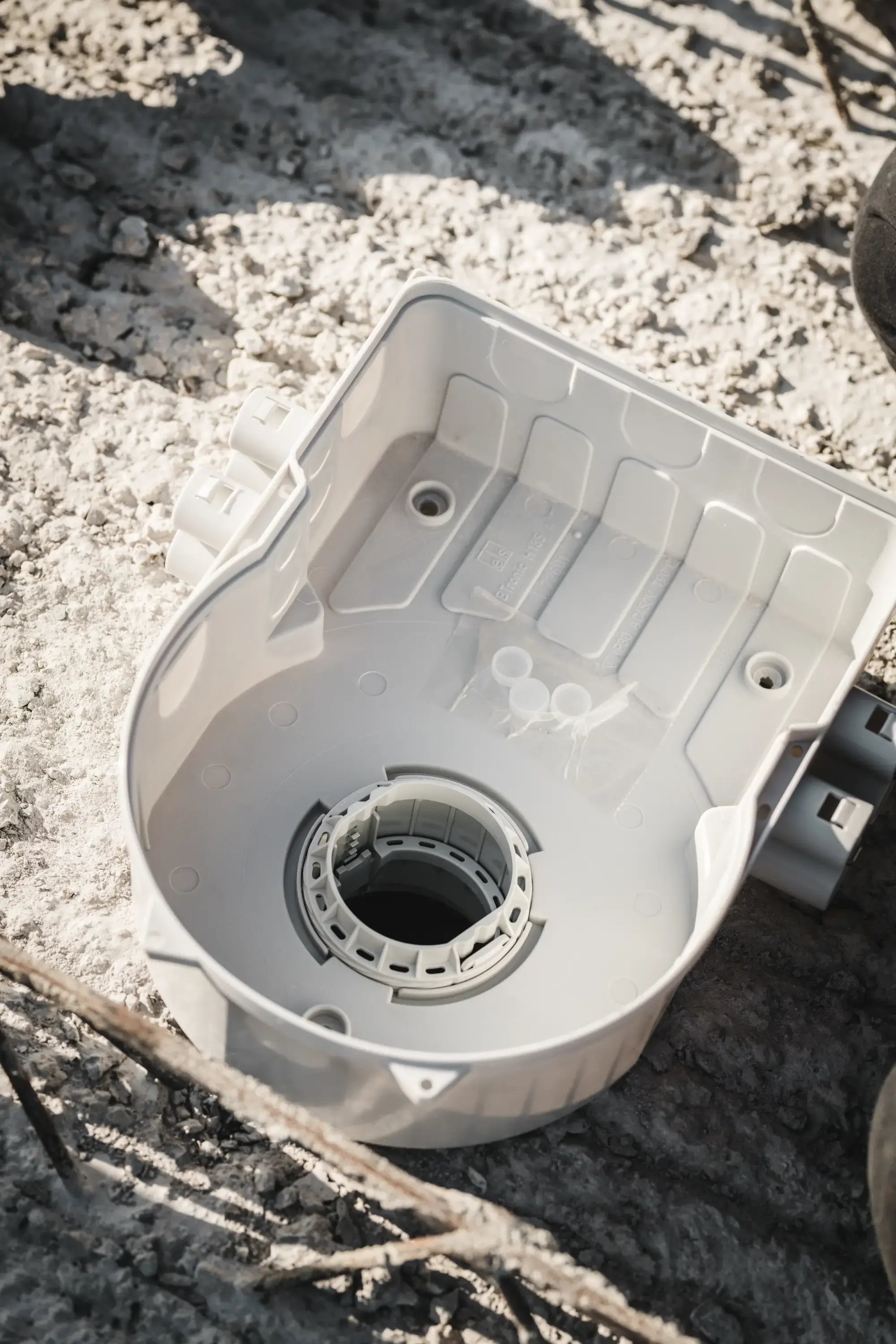

Spelsberg 97680101 Enclosure, other, Suitable for concrete construction, Rated insulation voltage 400V AC, Halogen free

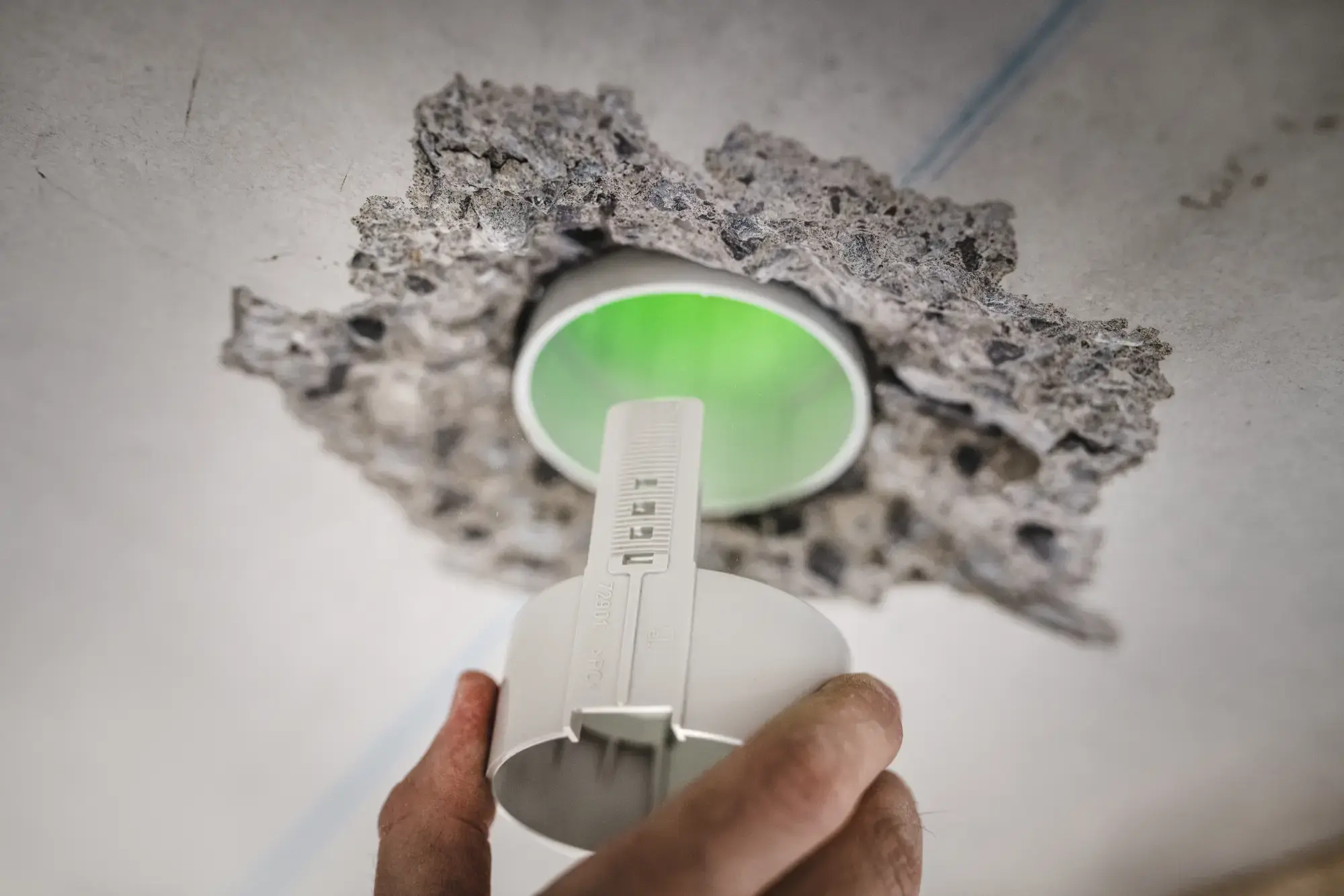

Enclosure, for prefabricated construction, for installing LV/HV/LED luminaires, suitable for subsequent installation in prefabricated ceilings 45-70mm with Ø 82mm core drilling, for the installation of VDE-approved lights per DIN EN 60598 (VDE 0711), as well as with F identification or MM identification, max. installation height LV lights: 105mm, HV lights: 110mm, lamp output max. 50W Alu, with additional connection space, (e.g. for installing an electronic safety transformer up to max. 150 VA), rated insulation voltage: 400V AC, Halogen free, Outlet aperture: Ø 76mm, ORD (Outer Ring Diameter of lights), min. Ø 85mm, 8 combi-conduit entry points 4 x M20, 4 x M25 integrated conduit stopper and strain relief for conduits M20, M25, dowel installation at floor slab, integrated conduit adapter, sealing range M20-M25
Dimensions: 255 x 280 x 92mm
