Dehn 123430 Air-term. rod f. metal roofs Al/StSt -KIT- D 22/16/10mm L 3000mm Al with braces
€ 188,87
% € 342,24 (44.81% bespaard)
Beschikbaar, levertijd: 2-3 Weken
Productnummer: WST8810210781
Manufacturer: DEHNP/N: 123430
Productinformatie "Dehn 123430 Air-term. rod f. metal roofs Al/StSt -KIT- D 22/16/10mm L 3000mm Al with braces"
Dehn Air-term. rod f. metal roofs Al/StSt -KIT- D 22/16/10mm L 3000mm Al with braces
Dehn 123430
EAN
Beschrijving

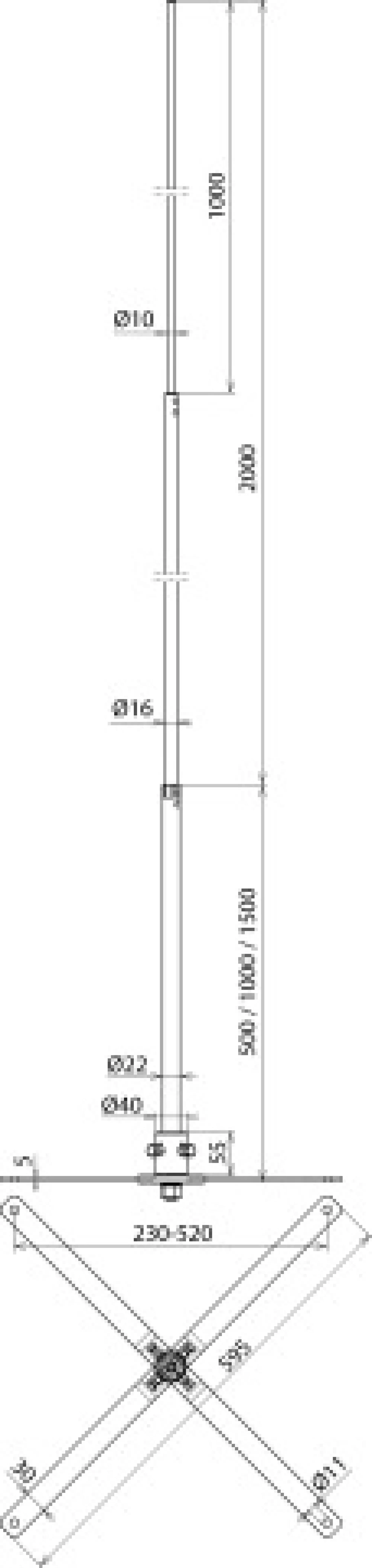

Air-termination rod for metal roofs, height 3000 mm, for protecting roof-mounted structures, domelights etc., adjustable to a roof inclination up to max 10°. The air-termination rod is fixed at the end of the braces (holes Ø11 mm) by means of four roof conductor holders. The roof conductor holders must be chosen according to the roof profile (e.g round standing seam No. 223 010 or standing seam Part No. 365 059).
Documenten & Downloads
Productkenmerken
Technische gegevens
| P/N (Onderdeelnummer) | 123430 |
|---|---|
| ETIM | EC000505 |
| Gewicht | 3.22 kg |
| Gewicht (verpakt) | 3.22 kg |
Benamingen
Air-termination Rods, Accessories Blitzschutz Lightning Protection / Earthing
