105713

Dehn 105713 -SET-tele. air-term. rod w. brace L6.5m Al & tripod R 1435 mm HDG st (St/tZn)

€ 1.122,41

% € 2.033,71 (44.81% bespaard)

Beschikbaar, levertijd: 2-3 Weken

Productnummer: WST8810210392

Manufacturer: DEHN
P/N: 105713

Productinformatie "Dehn 105713 -SET-tele. air-term. rod w. brace L6.5m Al & tripod R 1435 mm HDG st (St/tZn)"

Dehn -SET-tele. air-term. rod w. brace L6.5m Al & tripod R 1435 mm HDG st (St/tZn)

Dehn 105713

EAN

Beschrijving

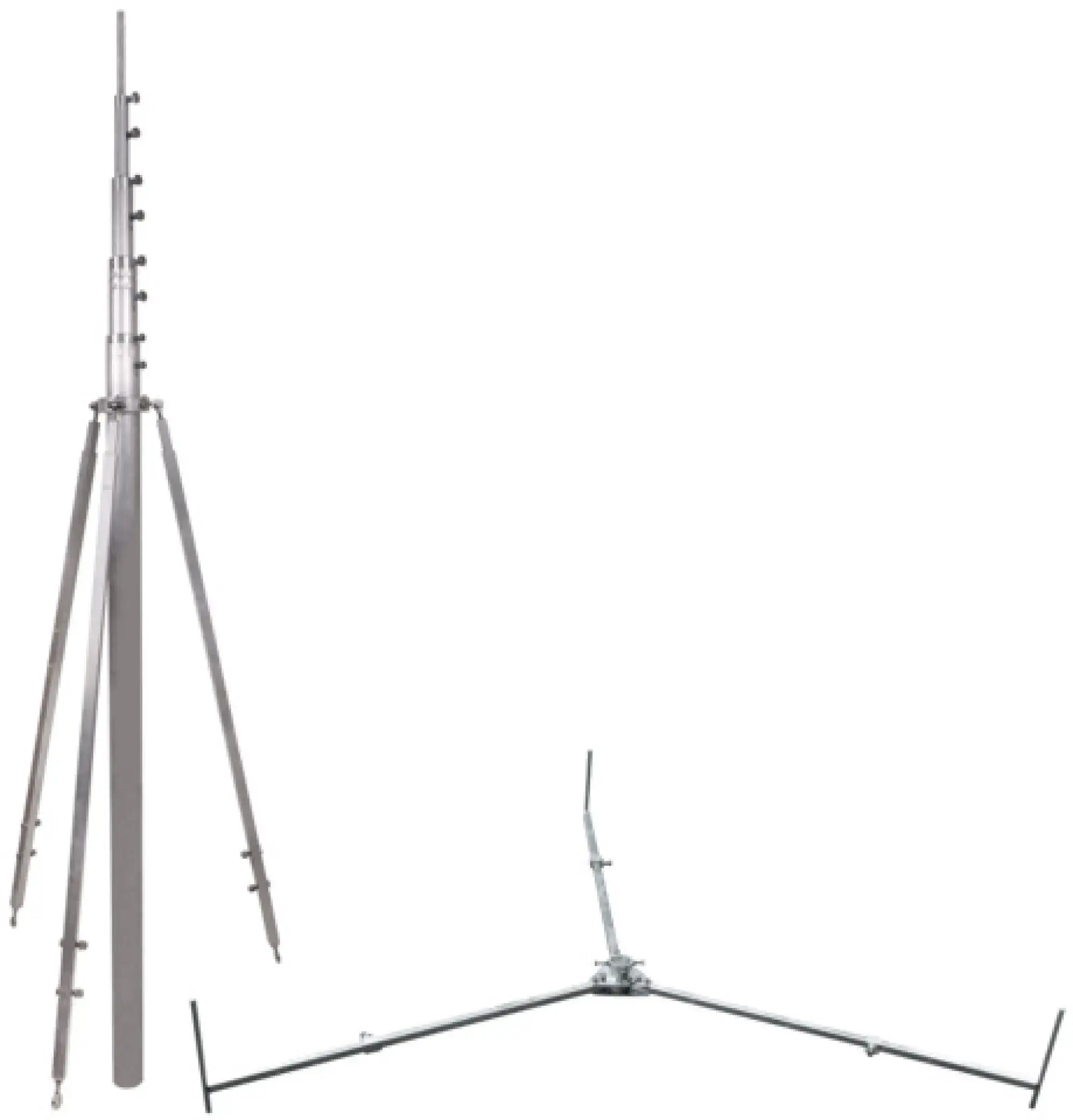

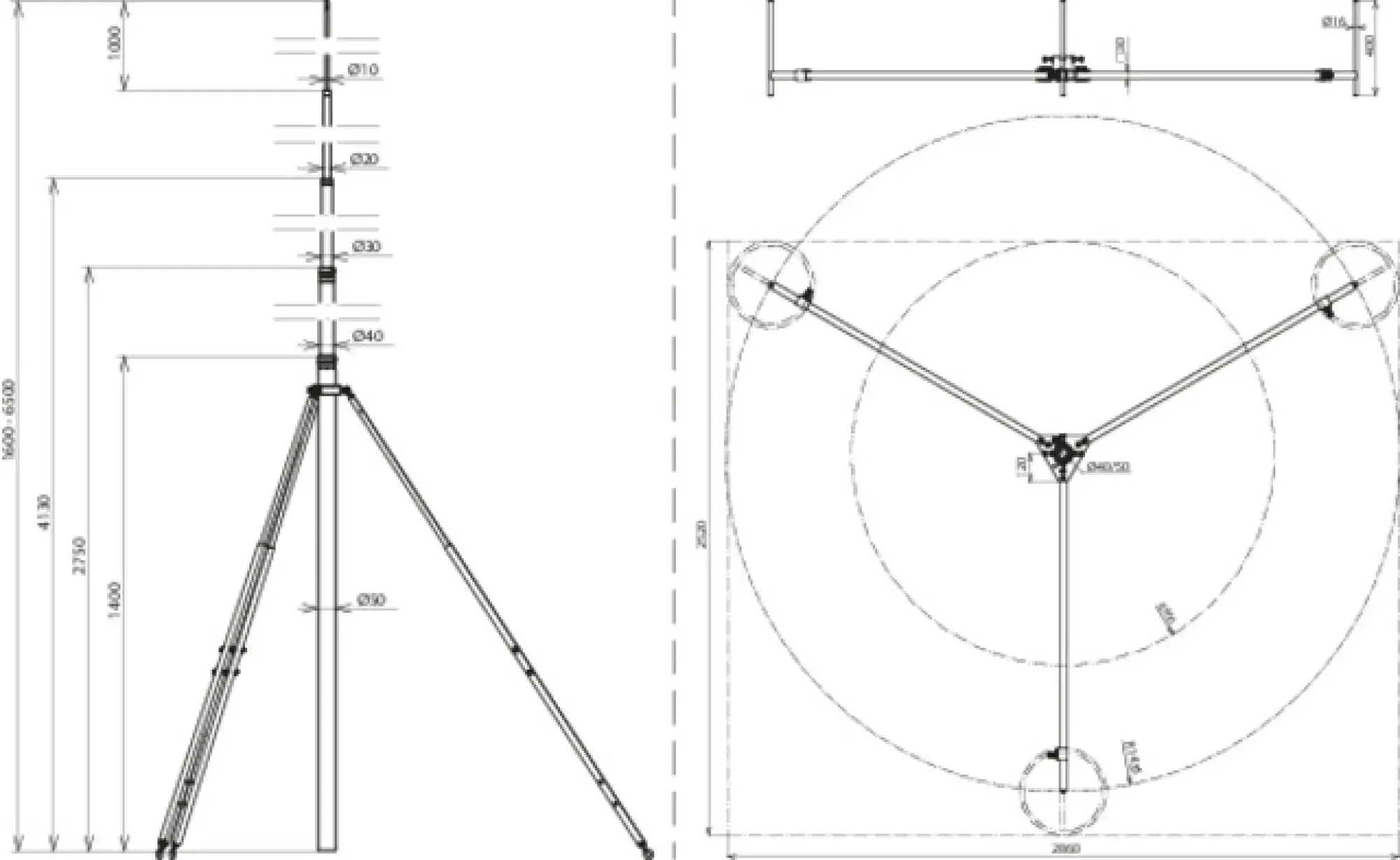

Telescopic, self-supporting air-termination rod with hinged HDG steel tripod. For protecting large roof-mounted structures, adjustable to a roof slope up to max. 10°. The air-termination rods are dimensioned to Eurocode1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA) for a max. gust wind speed of 189 km/h. Version with a height of 6500 mm.

Documenten & Downloads

Productkenmerken

Technische gegevens

P/N (Onderdeelnummer)	105713
ETIM	EC000505
Gewicht	25.82 kg
Gewicht (verpakt)	26.32 kg

Benamingen

Air-termination Rods, Accessories Blitzschutz Lightning Protection / Earthing
