105712
Dehn 105712 -SET- telesc. air-term. rod L6.5m Al with 4-legged stand D50mm R680mm StSt
€ 1.010,33
% € 1.830,70 (44.81% bespaard)
Beschikbaar, levertijd: 2-3 Weken
Productnummer: WST8810210395
Manufacturer: DEHNP/N: 105712
Productinformatie "Dehn 105712 -SET- telesc. air-term. rod L6.5m Al with 4-legged stand D50mm R680mm StSt"
Dehn -SET- telesc. air-term. rod L6.5m Al with 4-legged stand D50mm R680mm StSt
Dehn 105712
EAN
Beschrijving

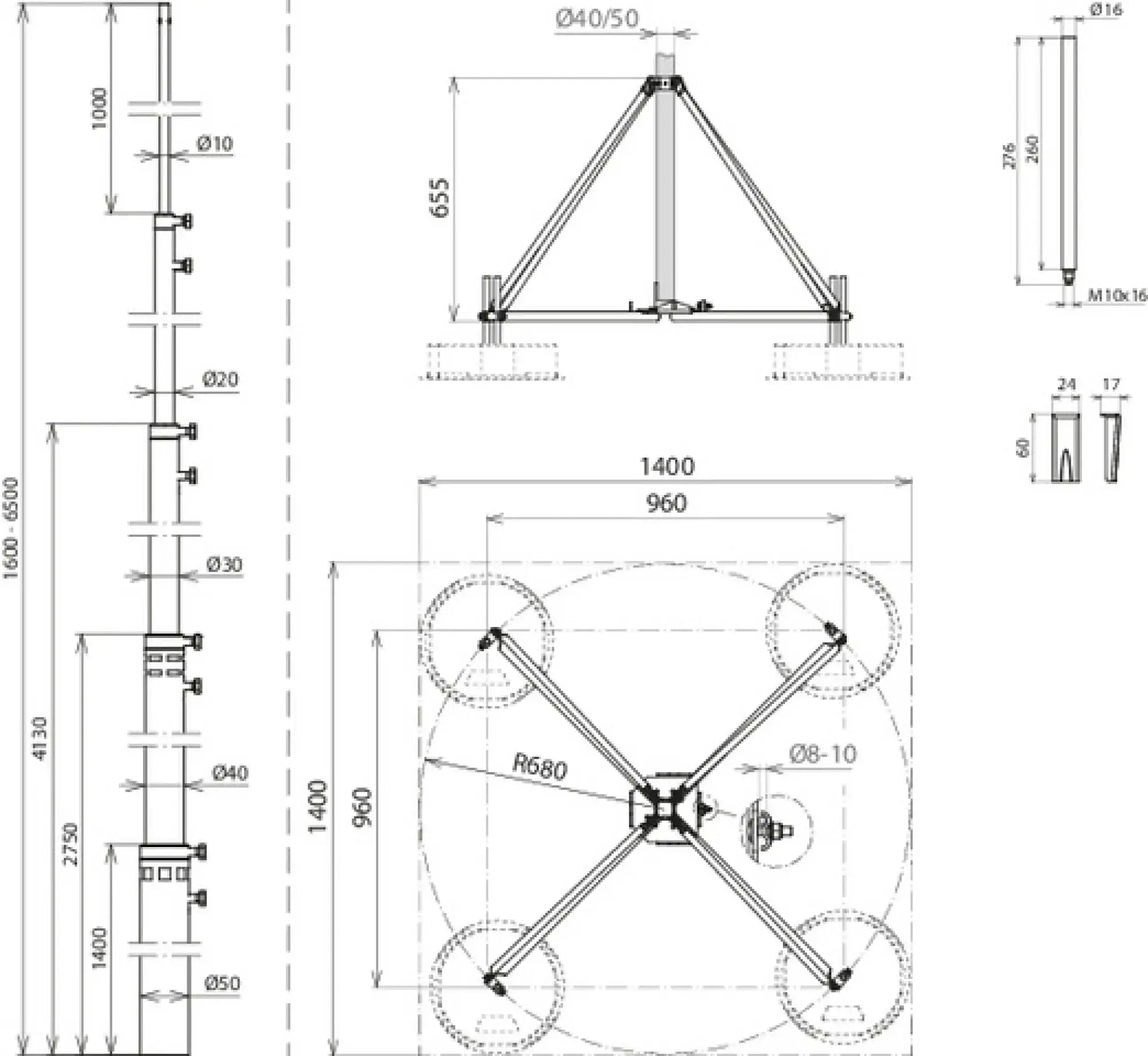

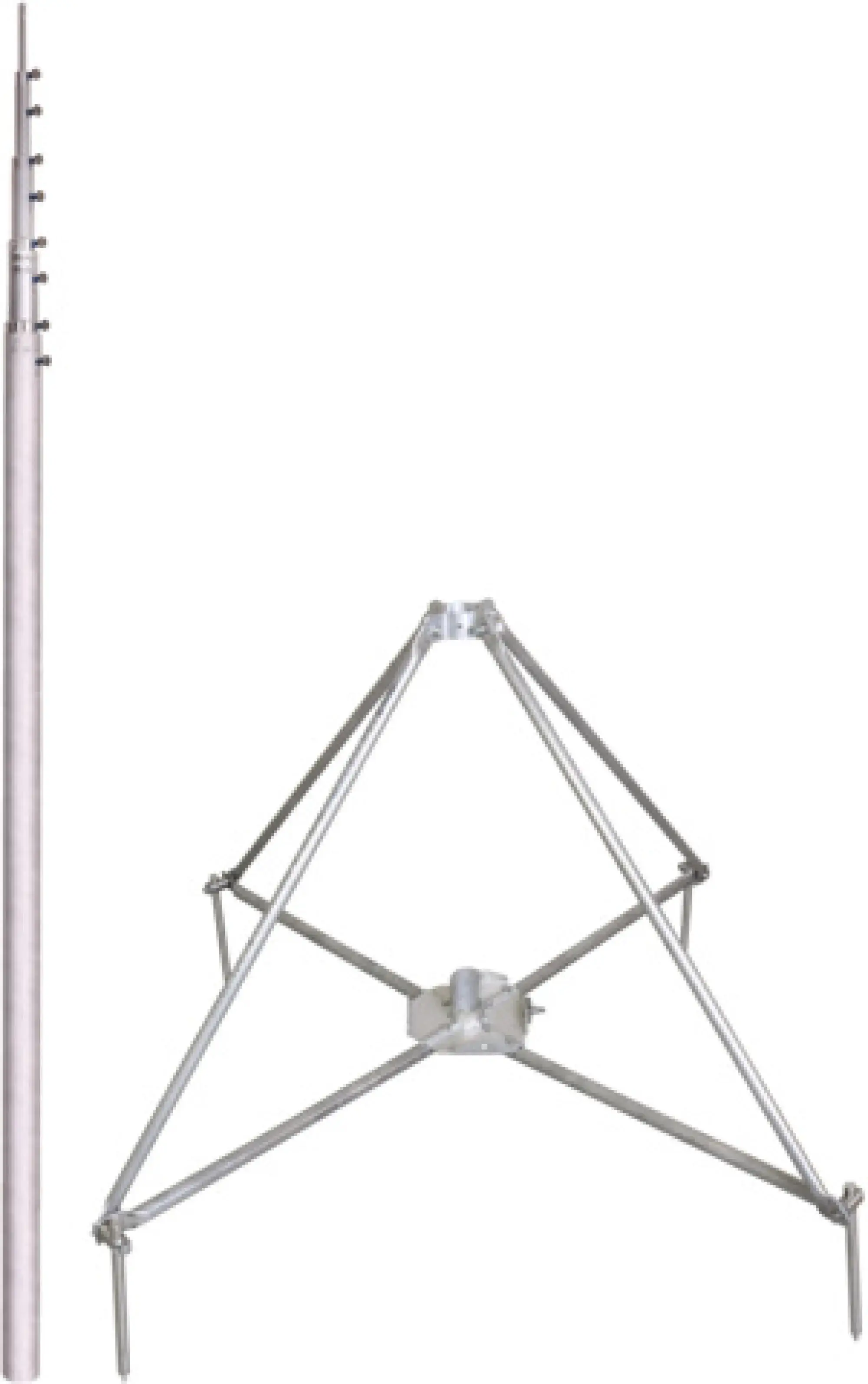

Telescopic, self-supporting air-termination rod with hinged stainless steel tripod. For protecting large roof-mounted structures, adjustable to a roof slope up to max. 10°. The air-termination rods are dimensioned to Eurocode1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA) for a max. gust wind speed of 189 km/h. Version with a height of 6500 mm.
Documenten & Downloads
Productkenmerken
Technische gegevens
| P/N (Onderdeelnummer) | 105712 |
|---|---|
| ETIM | EC000505 |
| Gewicht | 15.74 kg |
| Gewicht (verpakt) | 16.77 kg |
Benamingen
Air-termination Rods, Accessories Blitzschutz Lightning Protection / Earthing
