105550
Dehn 105550 Air-term. rod D 40/22/16/10mm Al L 5500mm with hinged tripod St/tZn -KIT-
€ 621,04
% € 1.125,26 (44.81% bespaard)
Beschikbaar, levertijd: 2-3 Weken
Productnummer: WST8810209304
Manufacturer: DEHNP/N: 105550
Productinformatie "Dehn 105550 Air-term. rod D 40/22/16/10mm Al L 5500mm with hinged tripod St/tZn -KIT-"

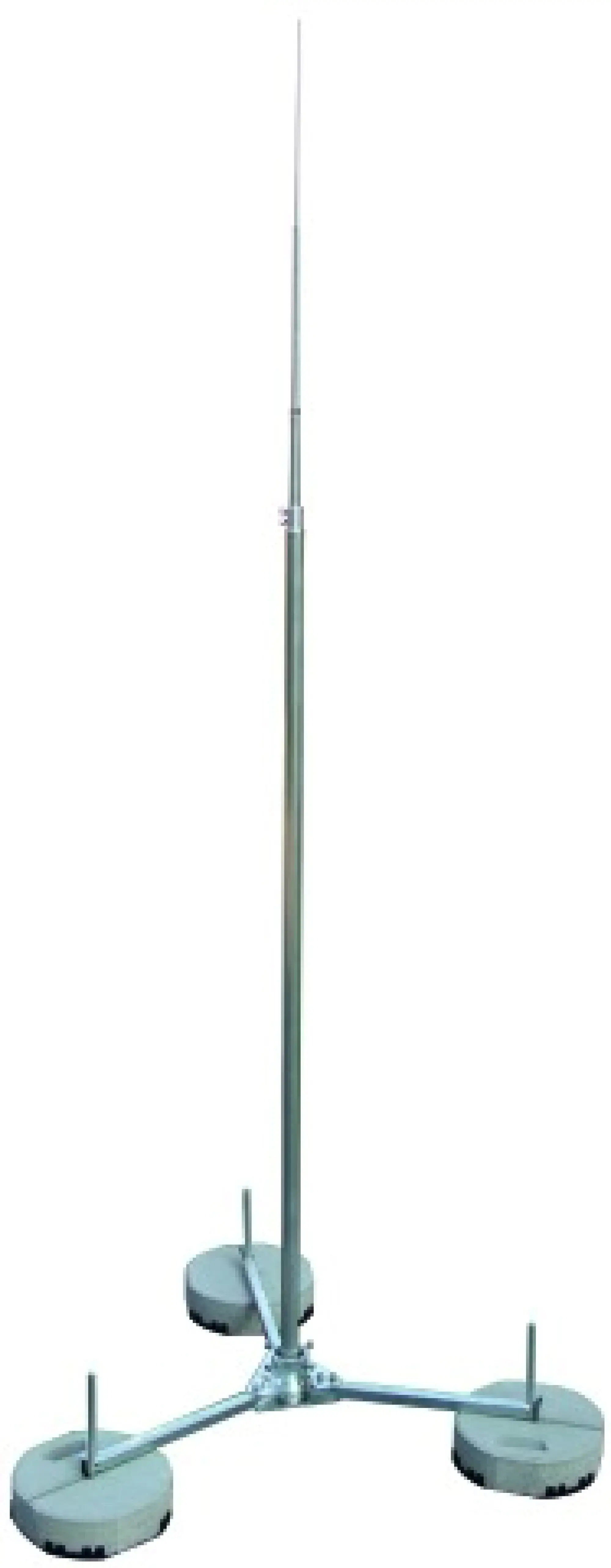

Dehn Air-term. rod D 40/22/16/10mm Al L 5500mm with hinged tripod St/tZn -KIT-
Dehn 105550
EAN
Beschrijving
Self-supporting air-termination rod with hinged tripod, tested to DIN EN 62561-(1+2). For protecting large roof-mounted structures, adjustable to a roof slope up to max. 10°. The air-termination rods are dimensioned to Eurocode1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)for a max. gust wind speed of 147 km/h. Version with a height of 5500 mm, including connection clamp for round conductor 6–10 mm.
Documenten & Downloads
Productkenmerken
Technische gegevens
| P/N (Onderdeelnummer) | 105550 |
|---|---|
| ETIM | EC000505 |
| Gewicht | 15.2 kg |
| Gewicht (verpakt) | 15.2 kg |
Benamingen
Air-termination Rods, Accessories Blitzschutz Lightning Protection / Earthing
