105500
Dehn 105500 Air-term. rod D 40/16/10mm Al L 5000mm w. hinged tripod St/tZn -KIT-
€ 610,60
% € 1.106,34 (44.81% bespaard)
Beschikbaar, levertijd: 2-3 Weken
Productnummer: WST8810209303
Manufacturer: DEHNP/N: 105500
Productinformatie "Dehn 105500 Air-term. rod D 40/16/10mm Al L 5000mm w. hinged tripod St/tZn -KIT-"
Dehn Air-term. rod D 40/16/10mm Al L 5000mm w. hinged tripod St/tZn -KIT-
Dehn 105500
EAN
Beschrijving

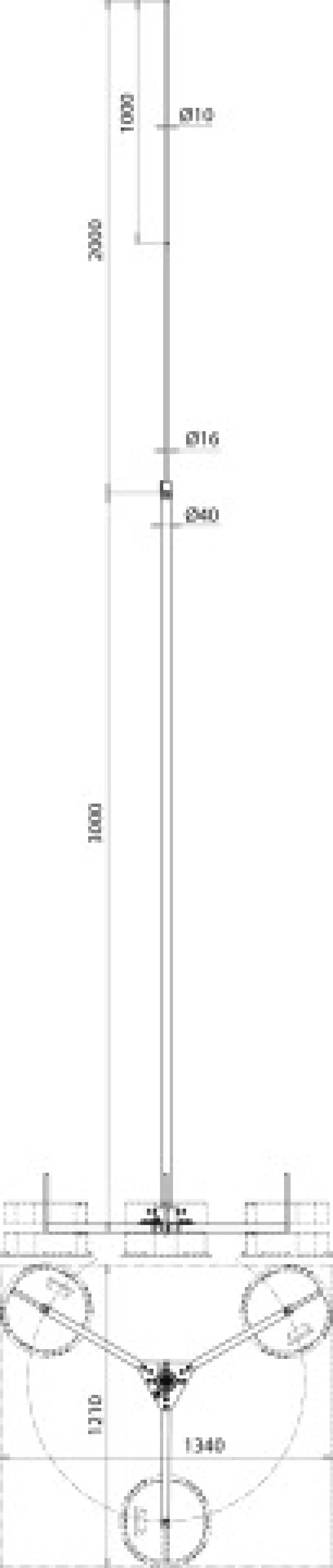

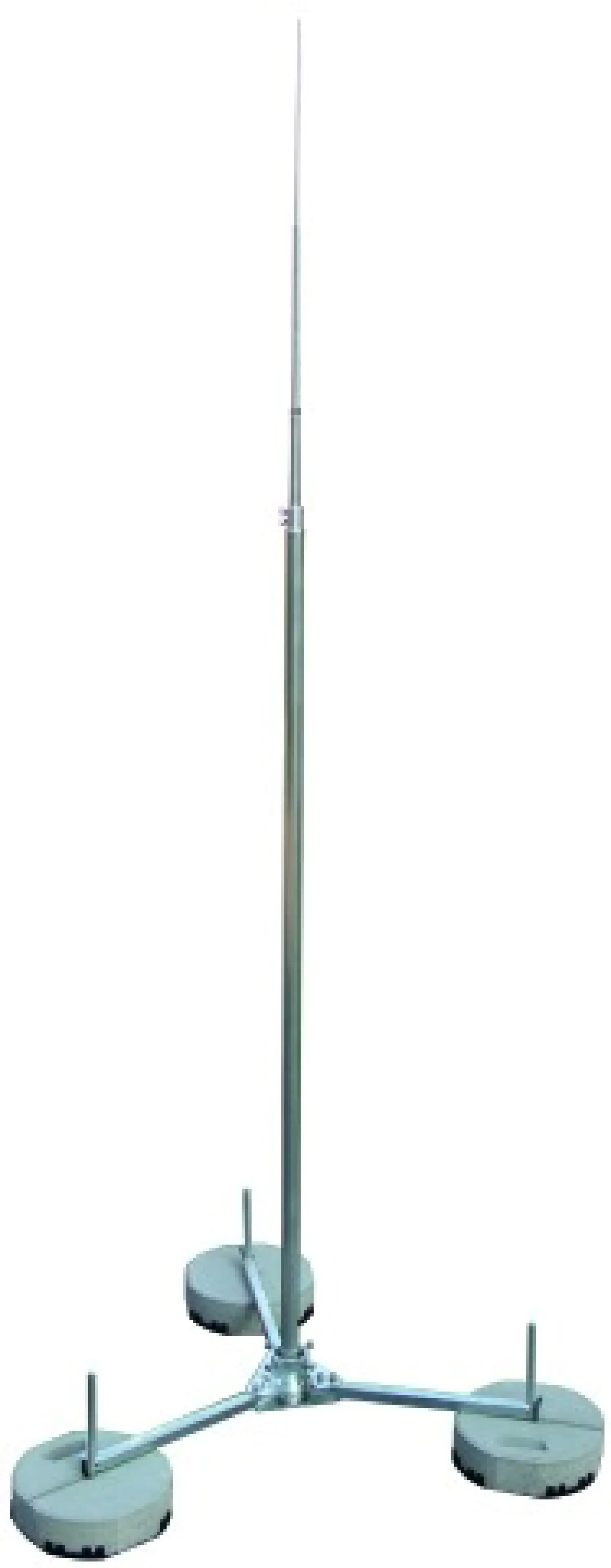

Self-supporting air-termination rod with hinged tripod, tested to DIN EN 62561-(1+2). For protecting large roof-mounted structures, adjustable to a roof slope up to max. 10°. The air-termination rods are dimensioned to Eurocode1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)for a max. gust wind speed of 163 km/h. Version with a height of 5000 mm, including connection clamp for round conductor 6–10 mm.
Documenten & Downloads
Productkenmerken
Technische gegevens
| P/N (Onderdeelnummer) | 105500 |
|---|---|
| ETIM | EC000505 |
| Gewicht | 15 kg |
| Gewicht (verpakt) | 15 kg |
Benamingen
Air-termination Rods, Accessories Blitzschutz Lightning Protection / Earthing
