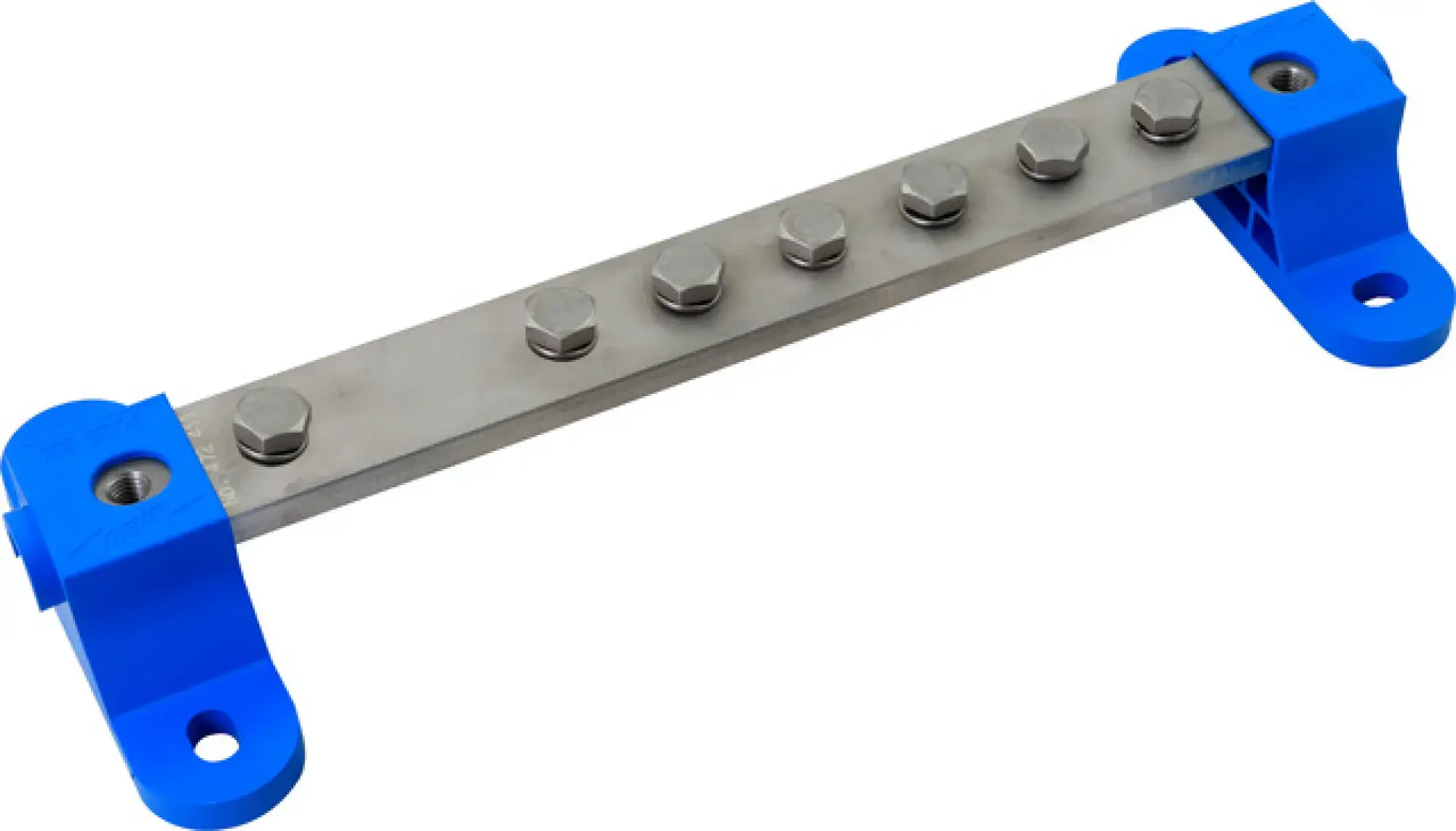

Dehn 472411 Equipotential bonding bar for Ex areas of zone 1/21, 2/22 for 7x cable lug

Non-sparking, Ex equipotential bonding bar for integrating metallic conductors and wires into the lightning equipotential bonding according to IEC 62305-3 as well as for protective and functional equipotential bonding according to IEC 60364-4-41/IEC 60364-5-54. For use in Ex zones 1 and 2 (gases, vapours, mists) and Ex zones 21 and 22 (dusts) explosion group IIC (safety factor 1) according to CLC 50703-2. Complies with temperature class T4 and IEC 62561-1 Lightning current carrying capability Class H (100kA). Screws secured against self-loosening according to VDE 0185-305-3 Supplement 2. Both indoor and outdoor installation permissible. To avoid whisker formation in hazardous areas, the use of tin-plated crimped cable lugs with a nickel barrier layer is recommended. The product has the following connections: 7x cable lug (M10 x 20 mm with spring washer)
