Dehn 472498 Connection kit, Rd 10 mm for EB-bar Ex area zone 1/21, 2/22

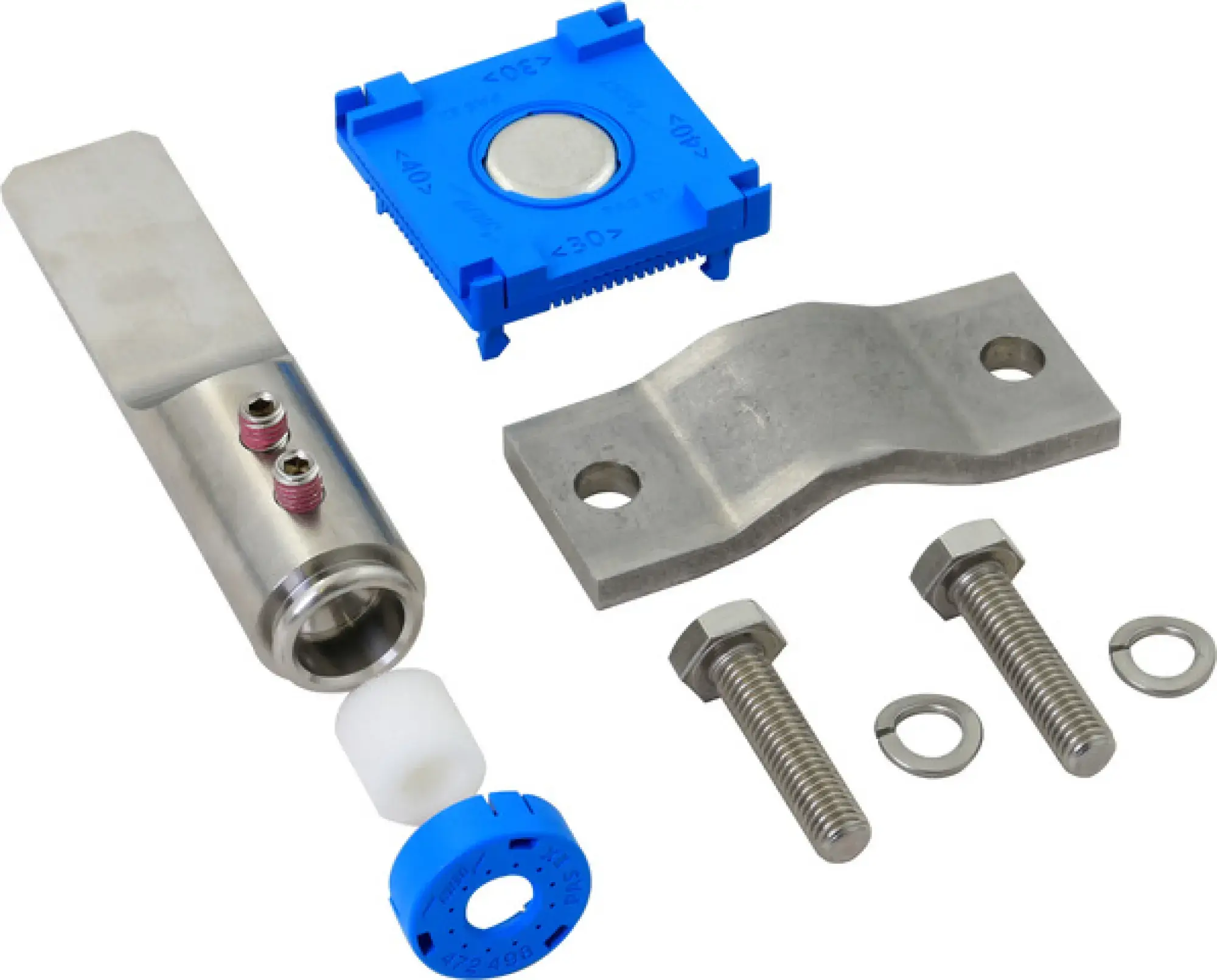

Connection kit, Rd 10 mm for PAS EX 11AP M10 V2A and PAS EX 7AP M10 V2A. For integration of metallic conductors and wires into the lightning equipotential bonding according to IEC 62305-3 as well as for protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54. For use in Ex zones 1 and 2 (gases, vapours, mists) and Ex zones 21 and 22 (dusts) explosion group IIC (safety factor 1) according to CLC 50703-2. Complies with temperature class T4 and IEC 62561-1 Lightning current carrying capability Class H (100kA). Screws secured against self-loosening according to VDE 0185-305-3 Supplement 2. Both indoor and outdoor installation permissible.
