FPF-9120-14-SW
HITACHI FPF-9120-14-SW EMC Line Filter, 1-ph 250 V, 14 A
37,89 €
% 50,12 € (ahorro del 24.4%)
Disponible, plazo de entrega: 7-10 Días laborables
Número de producto: WCH8810307246
Manufacturer: HITACHIP/N: FPF-9120-14-SW
Información sobre el producto "HITACHI FPF-9120-14-SW EMC Line Filter, 1-ph 250 V, 14 A"

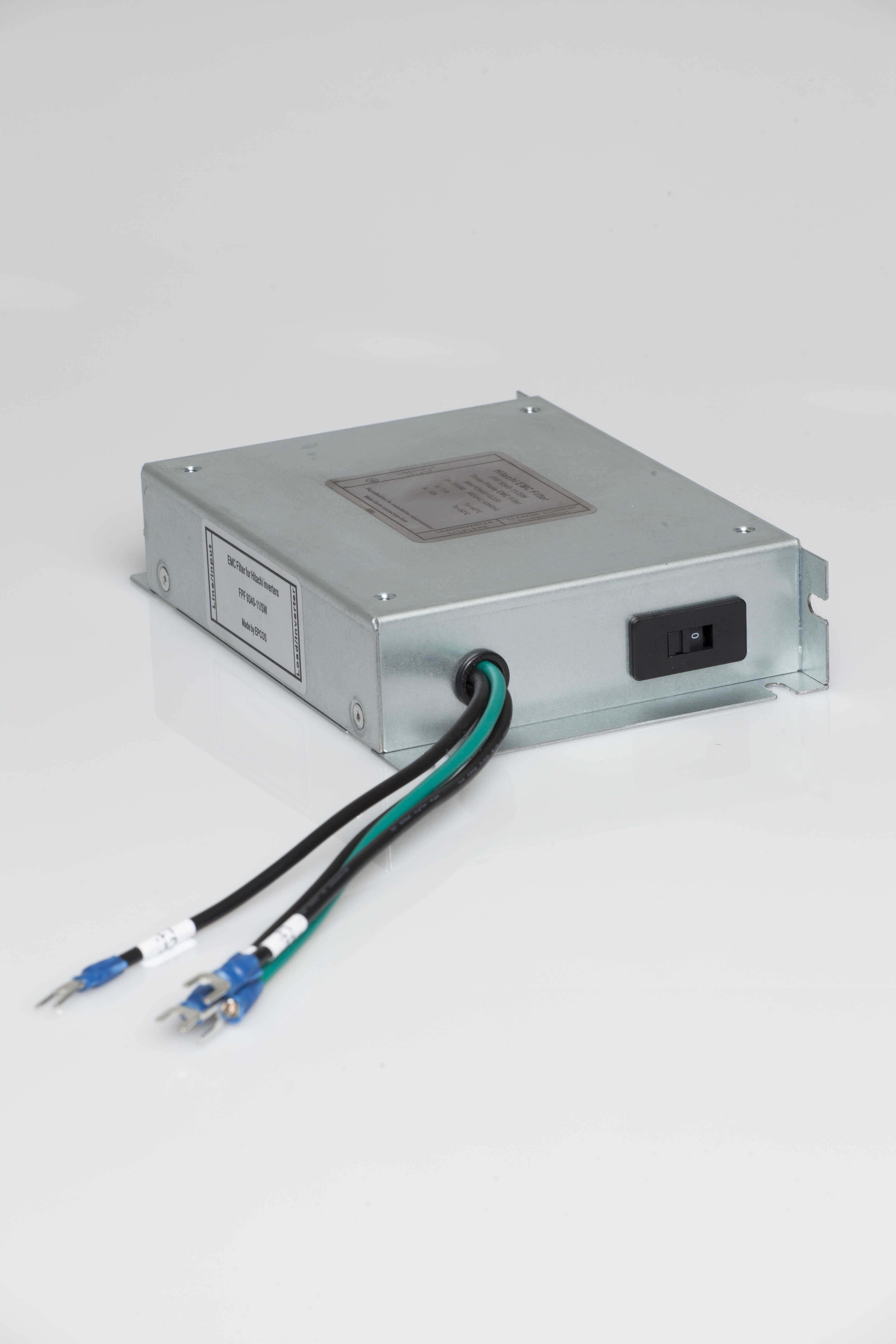

HITACHI EMC Line Filter FPF-9120-14-SW, 1-phase 250 V, 14 A, IP00
Hitachi FPF-9120-14-SW
EAN —
Description
EMC line filter for base or side mounting on a C1-007SFE2 frequency inverter. Electrical connection for 1-phase 250 V, 50–60 Hz, 14 A, in IP00 design. Complies with the limit values for C1 / C2 according to EN 61800-3. Using an integrated switch, a low leakage current mode can be activated.
Product Attributes
| Electrical connection | 1-phase 250 V, 50–60 Hz |
|---|---|
| Rated current | 14 A |
| Protection class (IP) | IP00 |
| Standards / Limits | EN 61800-3, Classes C1 / C2 |
| Permitted shielded motor cable length (C1/C2) | 20 m / 50 m |
| Permitted cable length in low leakage mode (C1/C2) | 5 m / 10 m |
| Leakage current (typ. / worst case) | 4.1 mA / 55 mA |
| Low leakage current (typ. / worst case) | 2.1 mA / 31 mA |
| Low leakage current switch | 1 |
| Mounting type | Base or side mounting |
| Width | 111 mm |
| Height | 169 mm |
| Depth | 40 mm |
Technical Data
| P/N (Part number) | FPF-9120-14-SW |
|---|---|
| EAN | — |
| ETIM | — |
| SCIP | — |
| ECLASS | — |
| Weight | 1.0 kg |
| Weight (packaged) | 1.4 kg |
Keywords
EMC line filter base-mounted EMC filter side-mounted EMC filter 1-phase 250V 50–60Hz 14A IP00 low leakage current EN61800-3 C1 C2
