€324.06
% €437.92 (26% saved)
No longer available
Product number: WST8810007566
Manufacturer: Schneider ElectricP/N: 9001KR16H2

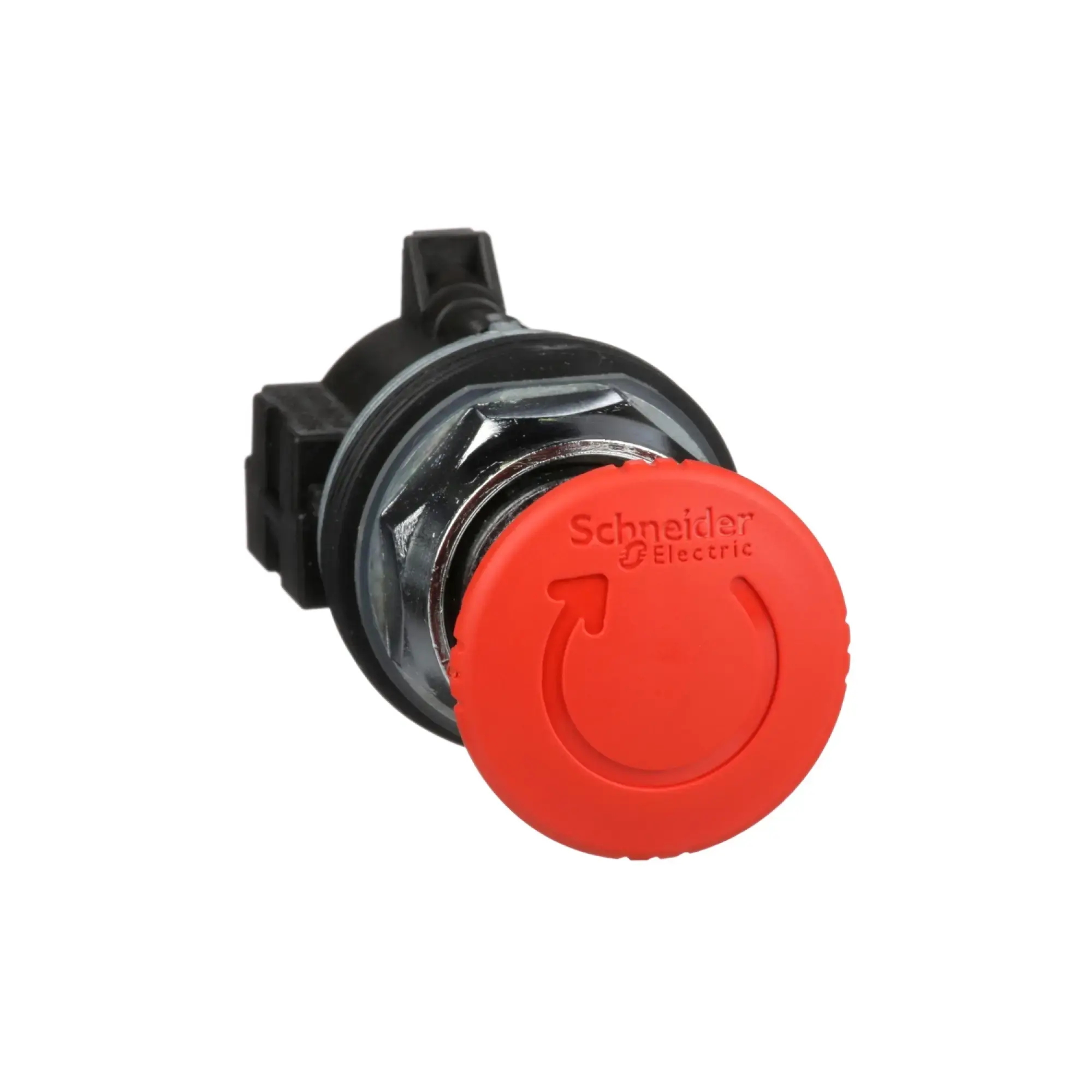

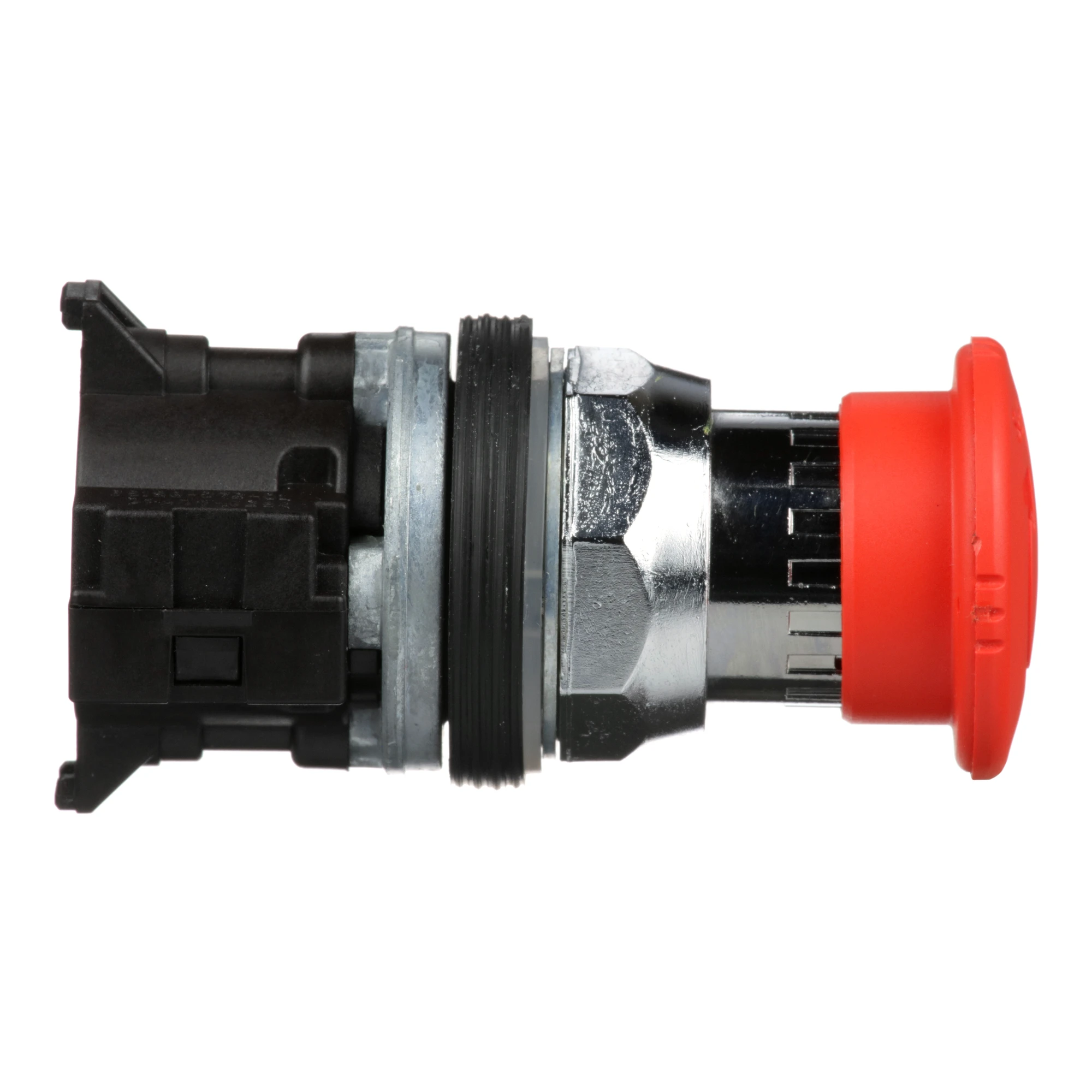

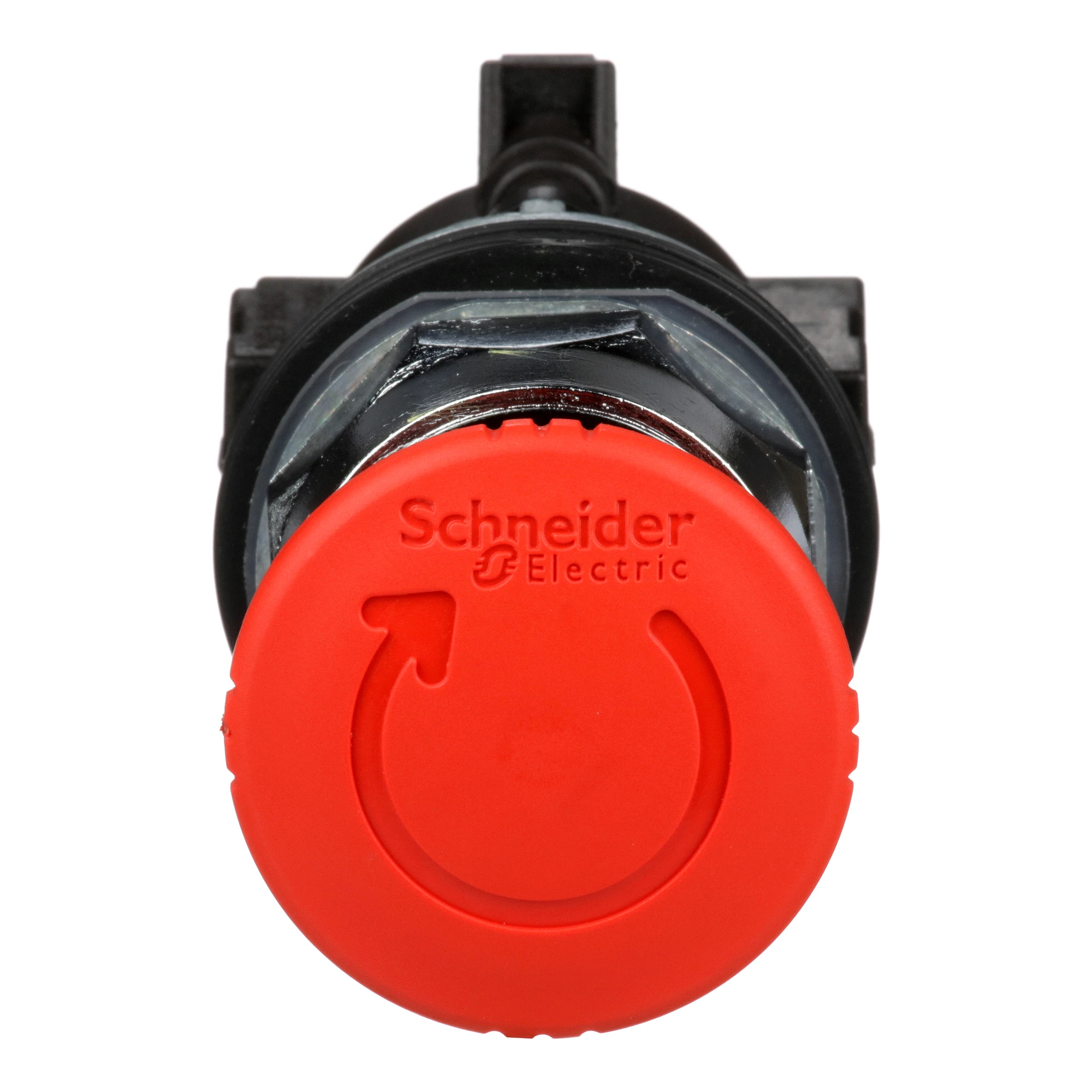

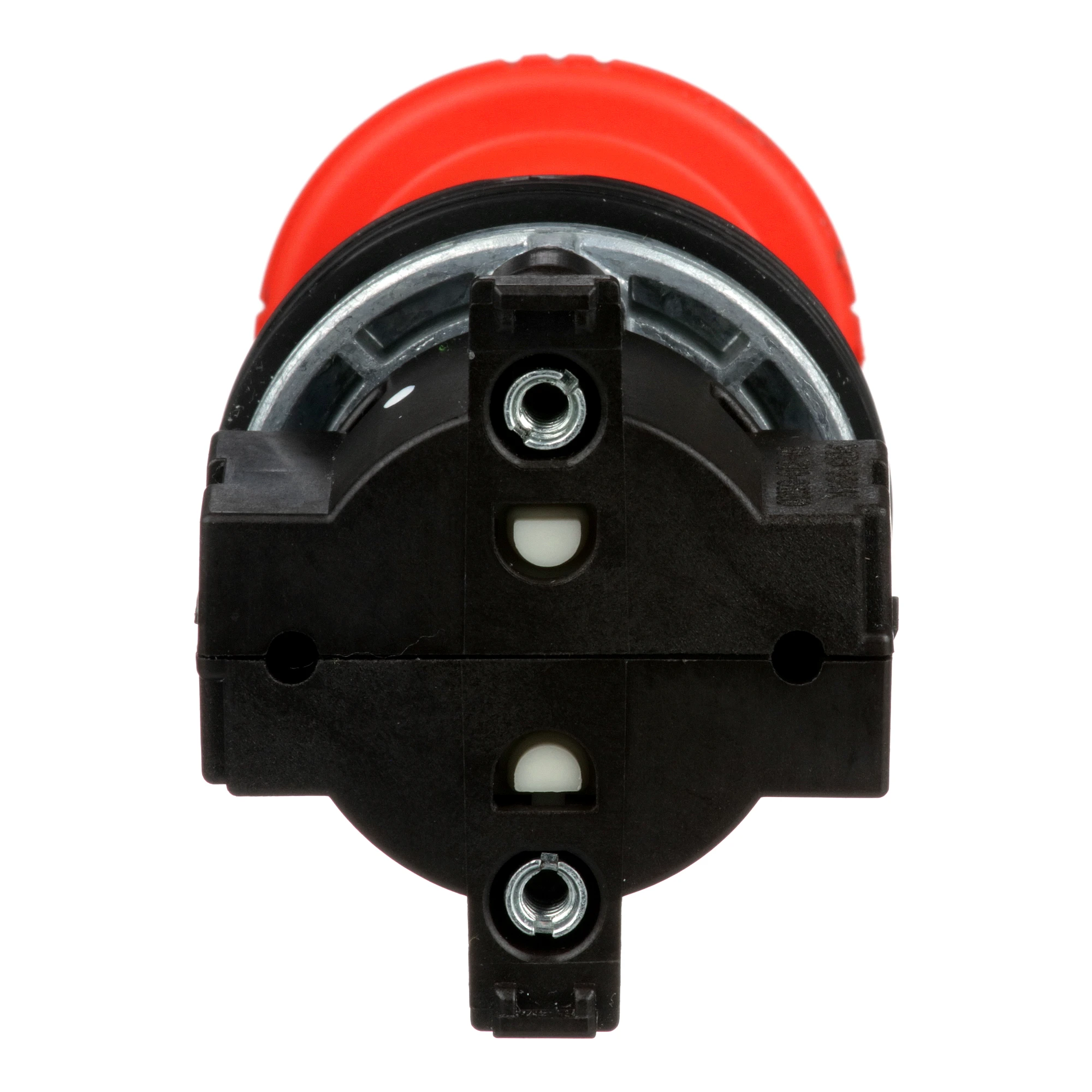

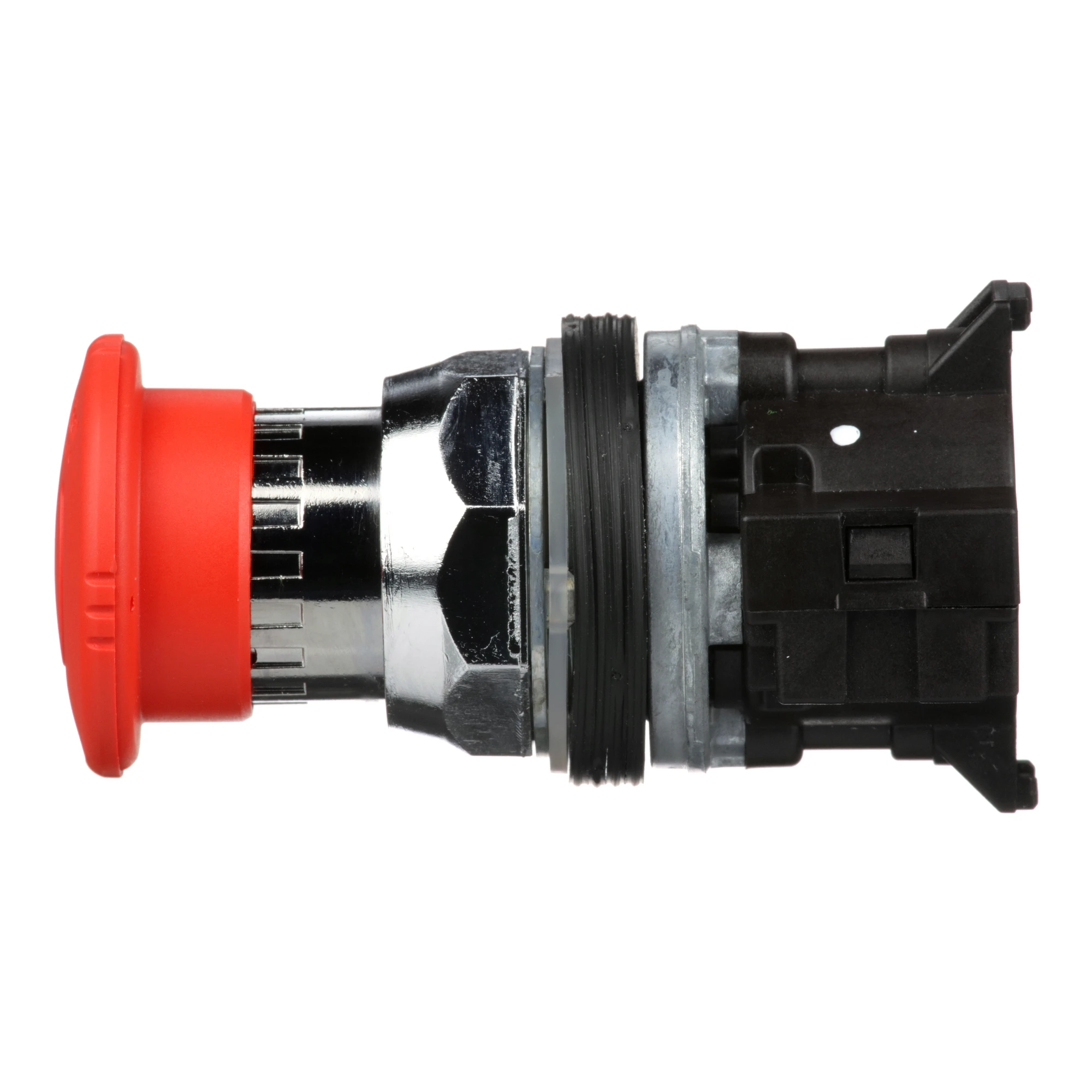

Product information "Schneider Electric 9001KR16H2 Red Ø30 Emergency Stop Pushbutton Ø40 Tamper-proof/Twist Release 2C/O"
Schneider Electric Red Ø30 Emergency Stop Pushbutton Ø40 Tamper-proof/Twist Release 2C/O
Schneider Electric 9001KR16H2
EAN 0785901623595
Description
This Harmony 9001K emergency stop / shutoff 30mm mushroom head modular red button has 2 positions, operates with a twist to unlock. It features a chrome-plated metal bezel and 2 x normally open + 2 x normally closed contacts. It comes with a switch element and has screw terminals. This emergency stop/shutdown button, also known as EMS (Emergency Machine Stop) and EMO (Emergency Off), can be easily installed in a standard cut-out with a diameter of 30mm. Connection via simple screw terminal connections. Its clear color and distinctive 40mm mushroom shape make it visibly stand out from a distance. Thanks to its IP66 rating, it is impact-resistant, dustproof, waterproof, and vibration-proof, making it ideal for use in harsh environments.
Documents & Downloads
Product Attributes
| Art der Entriegelung | Dreh-Entriegelung |
|---|---|
| Anzahl der Kontakte als Öffner | 2 |
| Anzahl der Kontakte als Schließer | 2 |
| Schutzart (IP) | IP66 |
| Schutzart (NEMA) | 4X |
| Montageart | Einbau |
| Mit Beleuchtung | |
| Versorgungsspannung der Lampe | -V |
| Lochdurchmesser | 31mm |
| Anschlussart Hilfsstromkreis | Schraubanschluss |
| Durchmesser der Kappe | 30mm |
Technical data
| P/N (Part Number) | 9001KR16H2 |
|---|---|
| EAN | 0785901623595 |
| ETIM | EC002034 |
| SCIP | ae0c4eb9-0bfb-40a4-851f-5c619fbe777d |
| ECLASS | eClass_10_ACN986011 |
| Weight | 0.14 kg |
| Weight (packaged) | 0.23 kg |
Designations
Button Control device Control unit Illuminated pushbutton Pushbutton Selector switch Signal lamp Signaling device Switch
