40207001

Spelsberg 40207001 Junction box, Type of protection IP66/IP67/IP69, max. 2,5², IK09, Protection class II, Ui 450V AC, Ui 450V DC, DLG, DNV, VDE, Halogen free

€ 11,53

% € 17,73 (34.97% bespaard)

Nu te bestellen, levertijd: 2-3 Werkdagen

Art. No: WST8810233983 P/N: 40207001 Fabrikant: Spelsberg

Veilig Betalen

Snelle Verzending

Deskundig Advies

Productinformatie "Spelsberg 40207001 Junction box, Type of protection IP66/IP67/IP69, max. 2,5², IK09, Protection class II, Ui 450V AC, Ui 450V DC, DLG, DNV, VDE, Halogen free"

Spelsberg Junction box, Type of protection IP66/IP67/IP69, max. 2,5², IK09, Protection class II, Ui 450V AC, Ui 450V DC, DLG, DNV, VDE, Halogen free

Spelsberg 40207001

EAN

Beschrijving

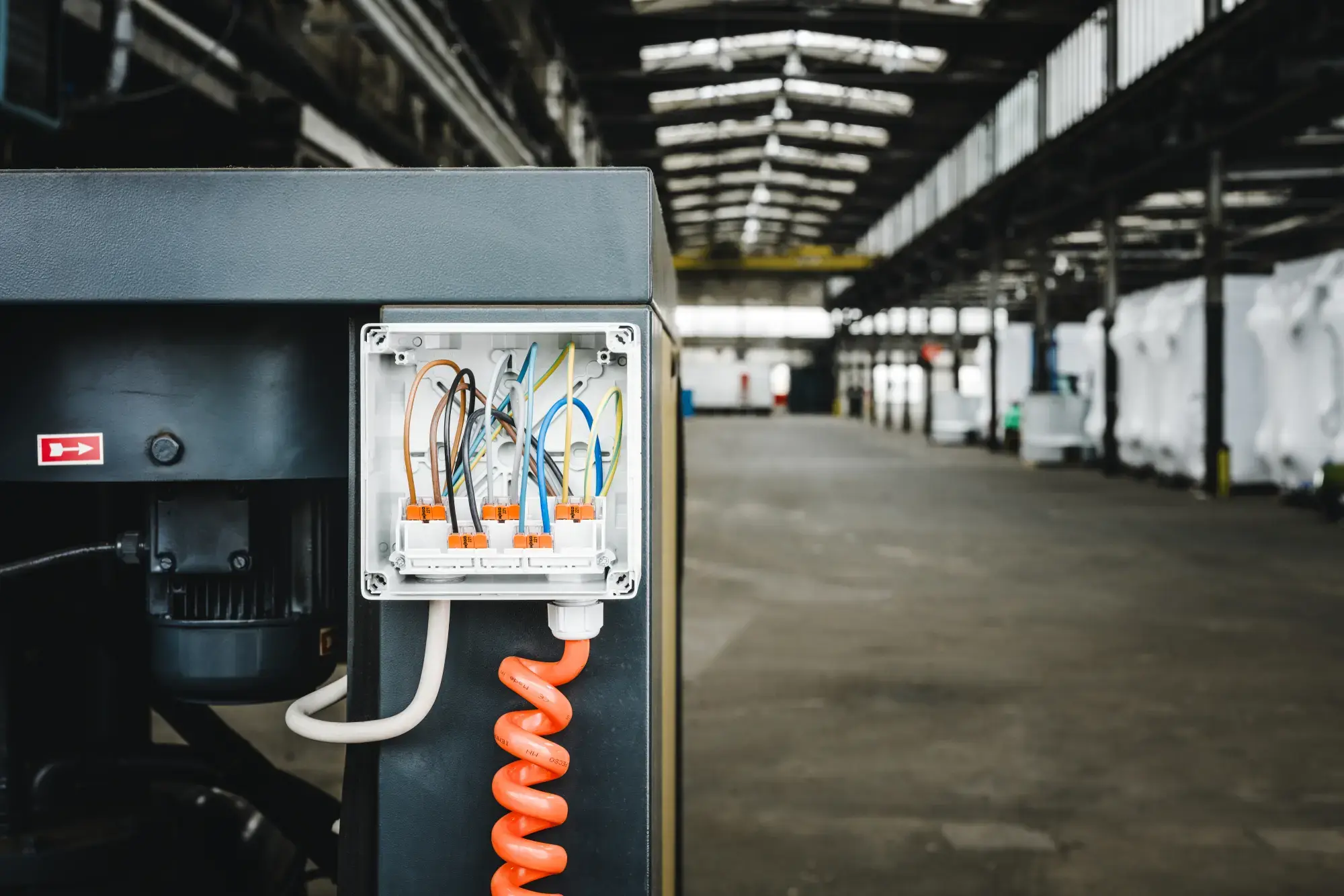

Junction box, protection class IP66/IP67/IP69, nominal cross-section 2.5mm², Ui=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and Offshore Installations), knockouts, M16/M20, (1 rear, 7 side), internal fixing points, with screwless terminals, for installation in industrial environments and unprotected outdoor areas, black, In=24 A, with 3 floor-fixed, screwless 3-wire terminals, Wago 221-413-2.5mm², clampable cross-sections per pole: 3 x 0.2 to 2.5mm² rigid Cu and 3 x 0.14 to 2.5mm² flexible Cu
Dimensions: 92 x 92 x 60mm
Accessories supplied: 4 double membrane seals IP66 M20 sealing range 7-13mm, cover retainer

Documenten & Downloads

Productkenmerken

Technische gegevens

P/N (Onderdeelnummer)	40207001
ETIM	EC002600
Gewicht	0.18 kg
Gewicht (verpakt)	0.18 kg
