KBA40ABG4W

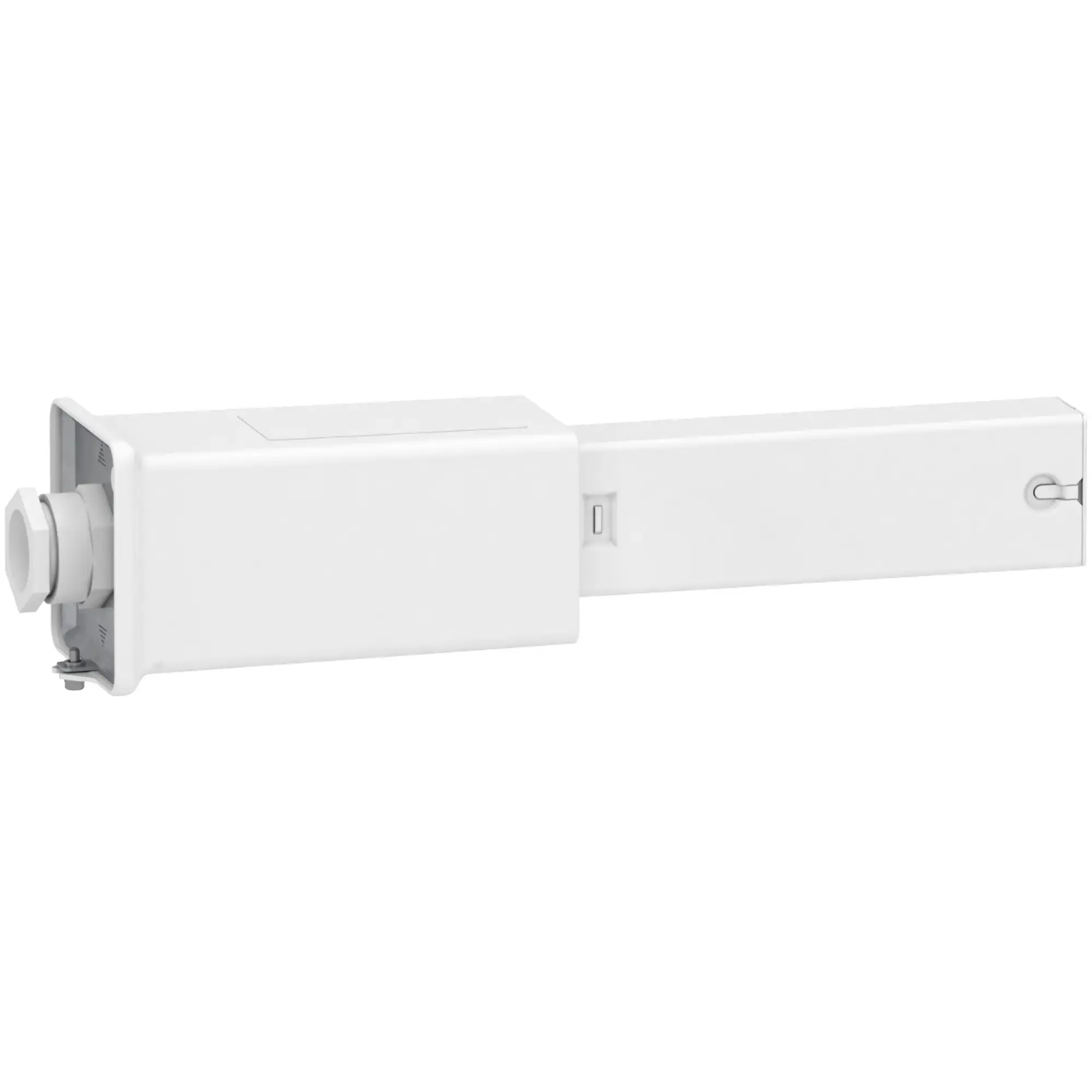

Schneider Electric KBA40ABG4W Canalis KBA - Voedingunit - 40A - Montage: Links - Wit
€ 43,11
% € 64,97 (33.65% bespaard)
Beschikbaar, levertijd: 2-3 Werkdagen
Productnummer: WST8810016405
Manufacturer: Schneider ElectricP/N: KBA40ABG4W
Productinformatie "Schneider Electric KBA40ABG4W Canalis KBA - Voedingunit - 40A - Montage: Links - Wit"
Schneider Electric Canalis KBA - Voedingunit - 40A - Montage: Links - Wit
Schneider Electric KBA40ABG4W
EAN 3606480000263
Beschrijving
Canalis feed-unit for KBA. The rated operational voltage is from 230VAC to 400VAC. The rated operational current is 25A and 40A. The bar material of feed-unit is aluminium with white RAL 9003 surface treatment. Busbar mounting by screws with left mounting location, connection by Pg 16 terminal block and 10 mm² screw clamp connector. Designed with 1 circuit allowing. It provides IP55 protection which conforming to IEC 60529 standard. It is compliant with both IEC 60439-2 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).
Documenten & Downloads
Productkenmerken
| Bemessungsstrom AC 50 Hz | 40A |
|---|---|
| Einspeisungsstelle | Ende |
| Ausführung | Einzel |
| Polzahl | 5 |
| Bemessungsspannung AC 50 Hz | 230V |
| Farbe | weiß |
| RAL-Nummer | 9003 |
| Schutzart (IP) | IP55 |
| Schutzart (NEMA) | |
| Länge | 300mm |
| Breite | 75.5mm |
| Höhe | 78.5mm |
Technische gegevens
| P/N (Onderdeelnummer) | KBA40ABG4W |
|---|---|
| EAN | 3606480000263 |
| ETIM | EC000122 |
| ECLASS | eClass_10_ACN415011 |
| Gewicht | 0.44 kg |
| Gewicht (verpakt) | 0.44 kg |
Benamingen
40A Canalis IP55 KBA busway railkokersysteem stopcontact verlichting voedingseenheid
