1831995

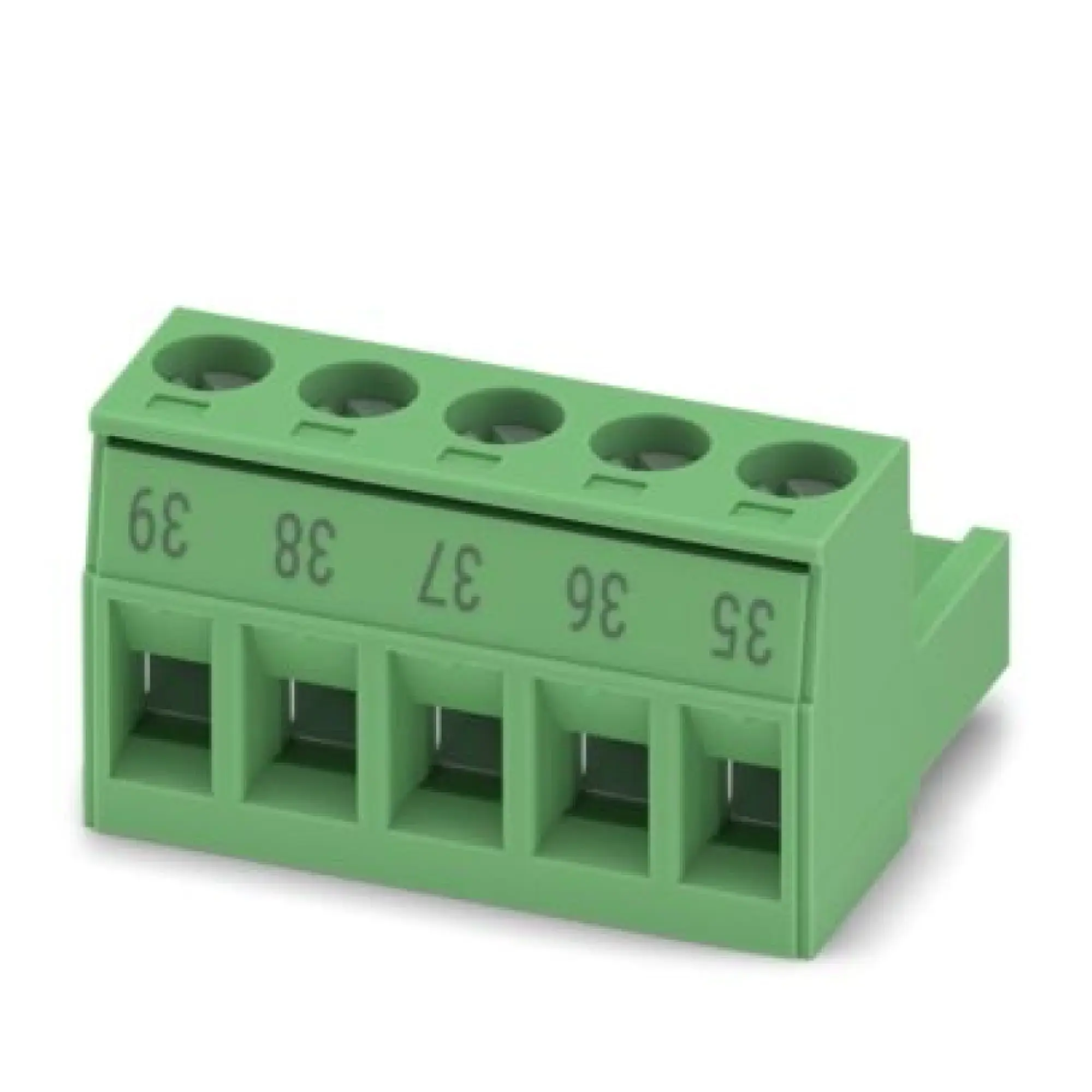

Phoenix Contact 1831995 PCB connector MSTB 2,5/ 5-ST-5,08 BD:39-35SO
€ 0,04
% € 0,05 (20% bespaard)
Beschikbaar, levertijd: 2-3 Weken
Productnummer: WST8810190124
Manufacturer: Phoenix ContactP/N: 1831995
Productinformatie "Phoenix Contact 1831995 PCB connector MSTB 2,5/ 5-ST-5,08 BD:39-35SO"
Phoenix Contact PCB connector MSTB 2,5/ 5-ST-5,08 BD:39-35SO
Phoenix Contact 1831995
EAN 4067923471801
Beschrijving
PCB connector, nominal cross section: 2.5 mm², color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Socket, number of rows: 1, number of positions: 5, product range: MSTB 2,5/..-ST, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5, locking: without, mounting method: without, type of packaging: packed in cardboard
Documenten & Downloads
Productkenmerken
| Verbindungsart | sonstige |
|---|---|
| Polzahl | 5 |
| Rastermaß der Kontakte (mm) | 5.08 |
| Rastermaß der Anschlüsse (mm) | 5.08 |
| Winkel Kontakt/Leiteranschluss | sonstige |
| Überspannungskategorie | III |
| Verschmutzungsgrad | 2 |
| Anschließbare Kabeltype | Rundkabel |
| Gehäusefarbe | grün |
Technische gegevens
| P/N (Onderdeelnummer) | 1831995 |
|---|---|
| EAN | 4067923471801 |
| ETIM | EC002638 |
| Gewicht | 9.0E-5 kg |
| Gewicht (verpakt) | 0.01 kg |
