420207
Dehn 420207 Downpipe clamp D 100mm Cu-St/tZn bimetallic with clamping frame 6-10mm
€ 14,97
% € 27,13 (44.82% bespaard)
Beschikbaar, levertijd: 2-3 Weken
Productnummer: WST8810211647
Manufacturer: DEHNP/N: 420207
Productinformatie "Dehn 420207 Downpipe clamp D 100mm Cu-St/tZn bimetallic with clamping frame 6-10mm"
Dehn Downpipe clamp D 100mm Cu-St/tZn bimetallic with clamping frame 6-10mm
Dehn 420207
EAN
Beschrijving

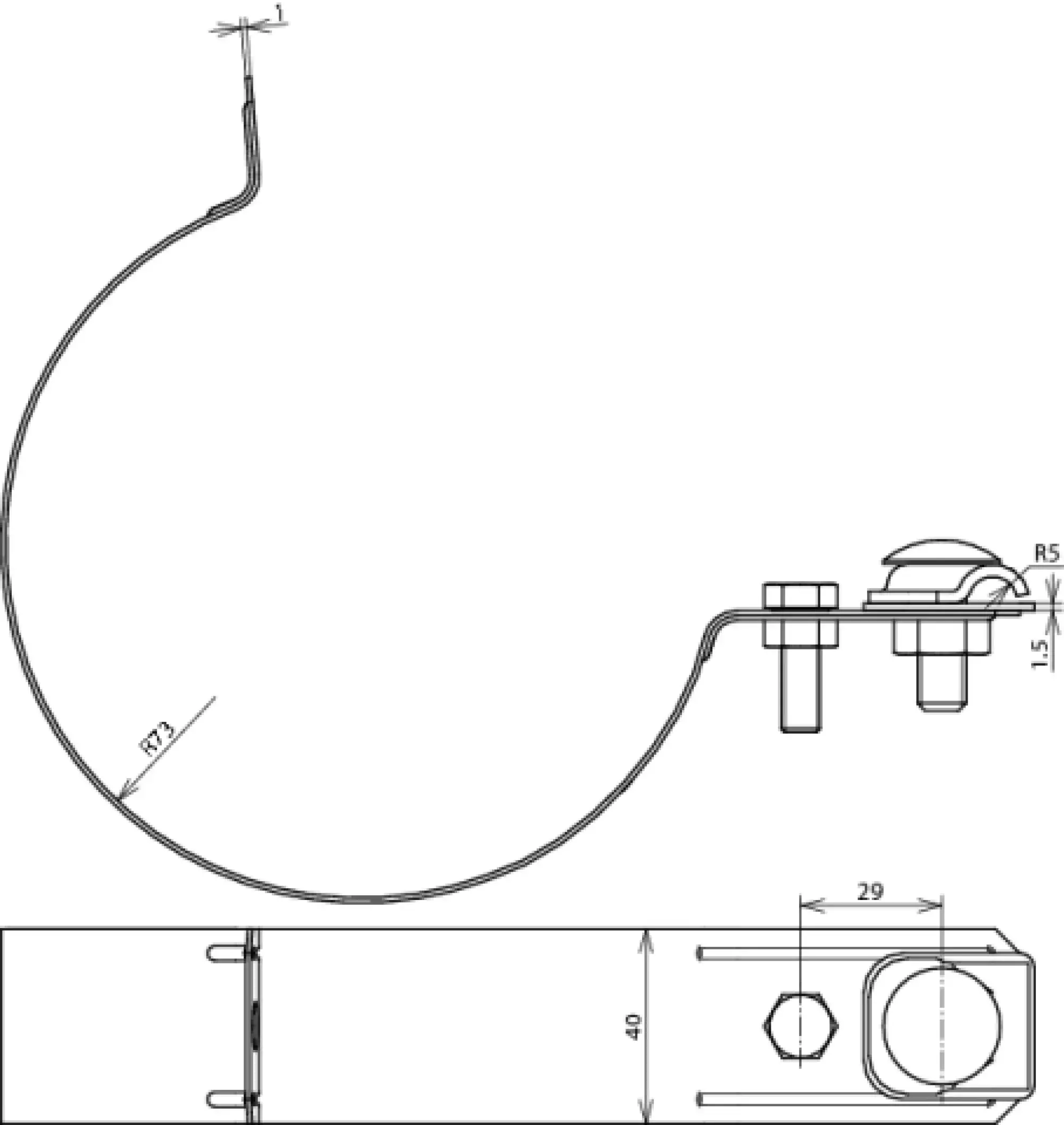

Pipe clamp according to EN 62561-1, for connecting downpipes to the lightning equipotential bonding according to IEC 62305-3. Connection possibilities D11 mm for round conductors, e.g. with KS connector or clamping piece. Bimetallic type for St connecting conductors to Cu downpipes, with St/tZn clamping piece and intermediate plate (Cupal), for fixed pipe diameters with screw M8.
Documenten & Downloads
Productkenmerken
Technische gegevens
| P/N (Onderdeelnummer) | 420207 |
|---|---|
| ETIM | EC000511 |
| Gewicht | 0.2147 kg |
| Gewicht (verpakt) | 0.22 kg |
Benamingen
Blitzschutz Earthing / Equipotential Bonding Equipotential Bonding Lightning Protection / Earthing
