392209
Dehn 392209 MV clamp StSt 200kA f. Rd 8-10/16mm w. hexagon screw and spring washer
€ 13,30
% € 24,04 (44.68% bespaard)
Beschikbaar, levertijd: 2-3 Weken
Productnummer: WST8810211581
Manufacturer: DEHNP/N: 392209
Productinformatie "Dehn 392209 MV clamp StSt 200kA f. Rd 8-10/16mm w. hexagon screw and spring washer"
Dehn MV clamp StSt 200kA f. Rd 8-10/16mm w. hexagon screw and spring washer
Dehn 392209
EAN
Beschrijving

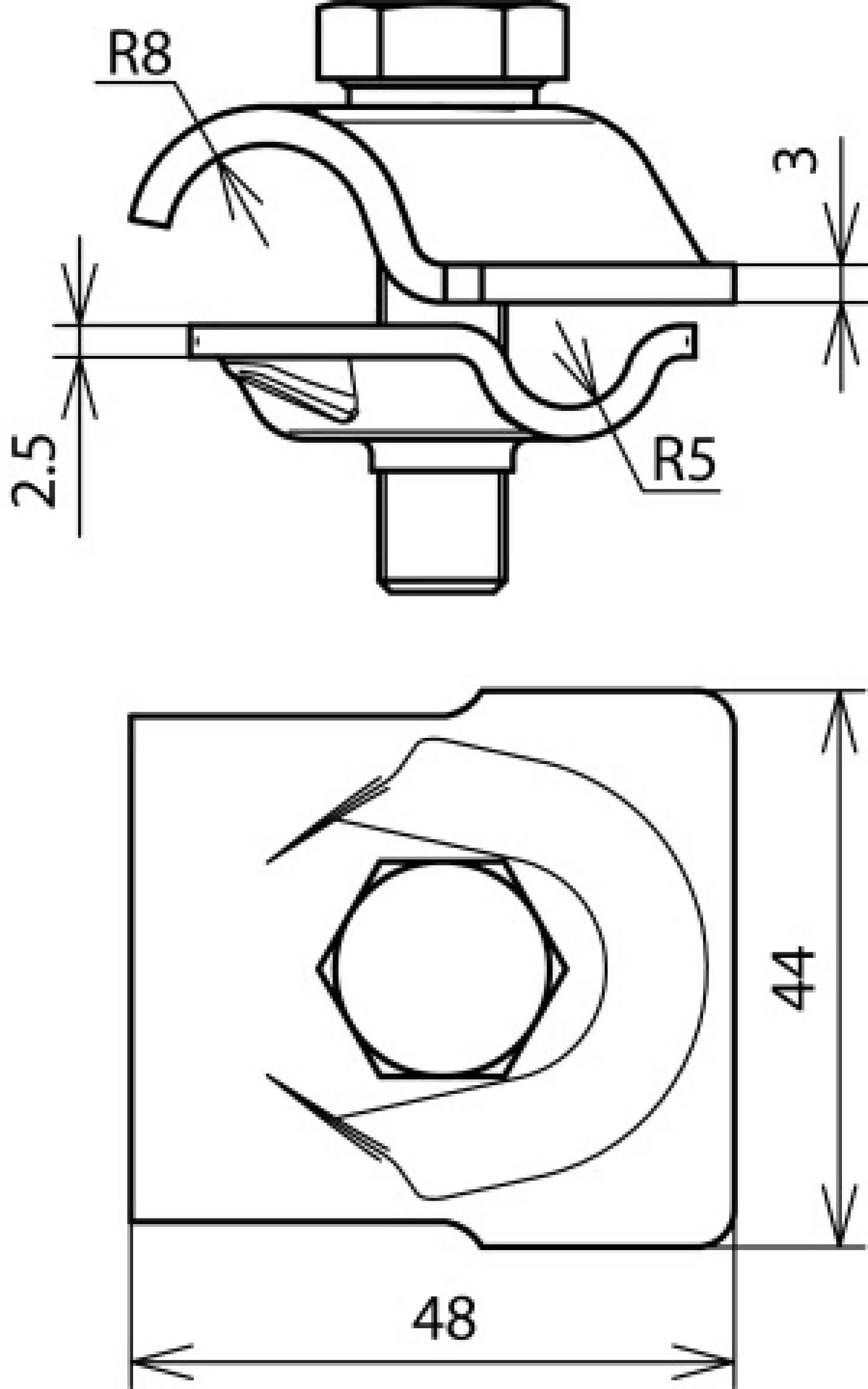

Multipurpose connecting clamp for connecting earth entry or air-termination rod (Ø 16 mm) with round conductor (Ø 8-10 mm). Tested for lightning current carrying capability up to 200 kA (10/350 μs) based on EN 62561-1. Two-piece design with hexagon screw and thread in the base part.
Documenten & Downloads
Productkenmerken
Technische gegevens
| P/N (Onderdeelnummer) | 392209 |
|---|---|
| ETIM | EC000514 |
| Gewicht | 0.14 kg |
| Gewicht (verpakt) | 0.14 kg |
Benamingen
Blitzschutz Earthing / Equipotential Bonding Equipotential Bonding for Ex Areas Lightning Protection / Earthing
