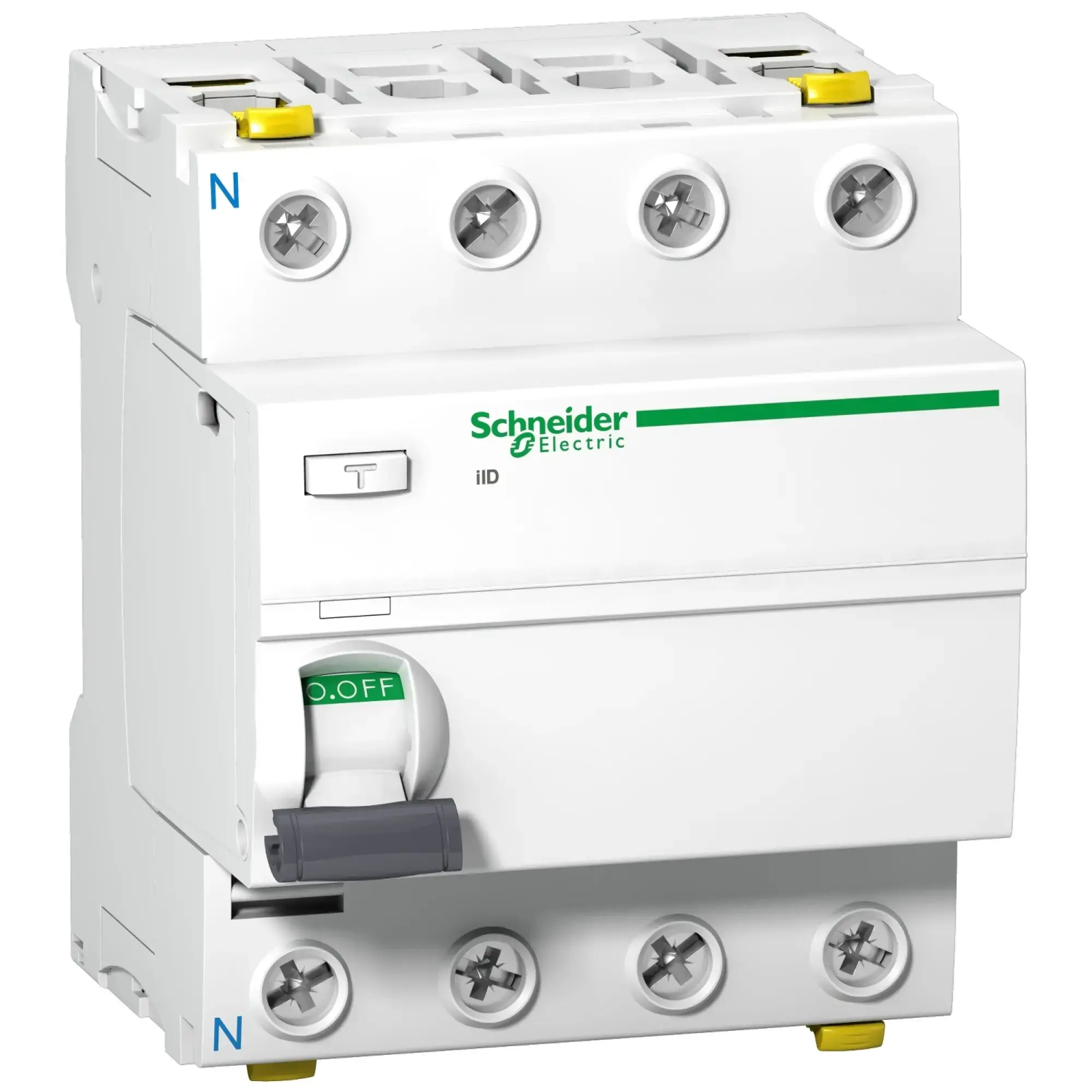

Schneider Electric A9Z26440 ACTI9 IID 4P 40A 500MA A- TYPE INTERRUPTE

Residual current circuit breaker Acti 9 iID, 1.5kA (IEC/EN 61008-1). 4-pole, rated current 40A, earth fault sensitivity 500mA, earth leakage protection class Type A, operating voltage (Ue) 400V AC, insulation voltage (Ui) 500V AC. Ensures additional protection in case of direct contact (≤ 30mA). Fault protection for indirect contact, for example, in the case of insulation faults (≥ 100mA, ≤ 300mA). Fault protection in construction power distribution units (500mA). Switching and disconnecting of circuits. Step switching for low-wear switching of contacts. With mechanical front-side fault indication (VisiTrip) for displaying tripping due to overload or short circuit. Safe contact indication (VisiSafe) of the residual current device when green, ensuring that no voltage is present on the outgoing side. Test button for regular function testing. Double connection terminals for connection of cables or busbars on both sides. Easy removal of individual devices when busbar is installed, thanks to the front-accessible fixing element. Additional optional side-mounted auxiliary modules - undervoltage release (iMN), overvoltage trip (iMSU), shunt trip (iMX), auxiliary switch for status notification (iOF), fault signal switch (iSD). Tool-free mounting on the left side of the device. Color RAL 9003. The residual current circuit breaker iID satisfies the following standards: IEC/EN 61008-1 and IEC/EN 60947-2. Furthermore, this series is VDE certified!.
