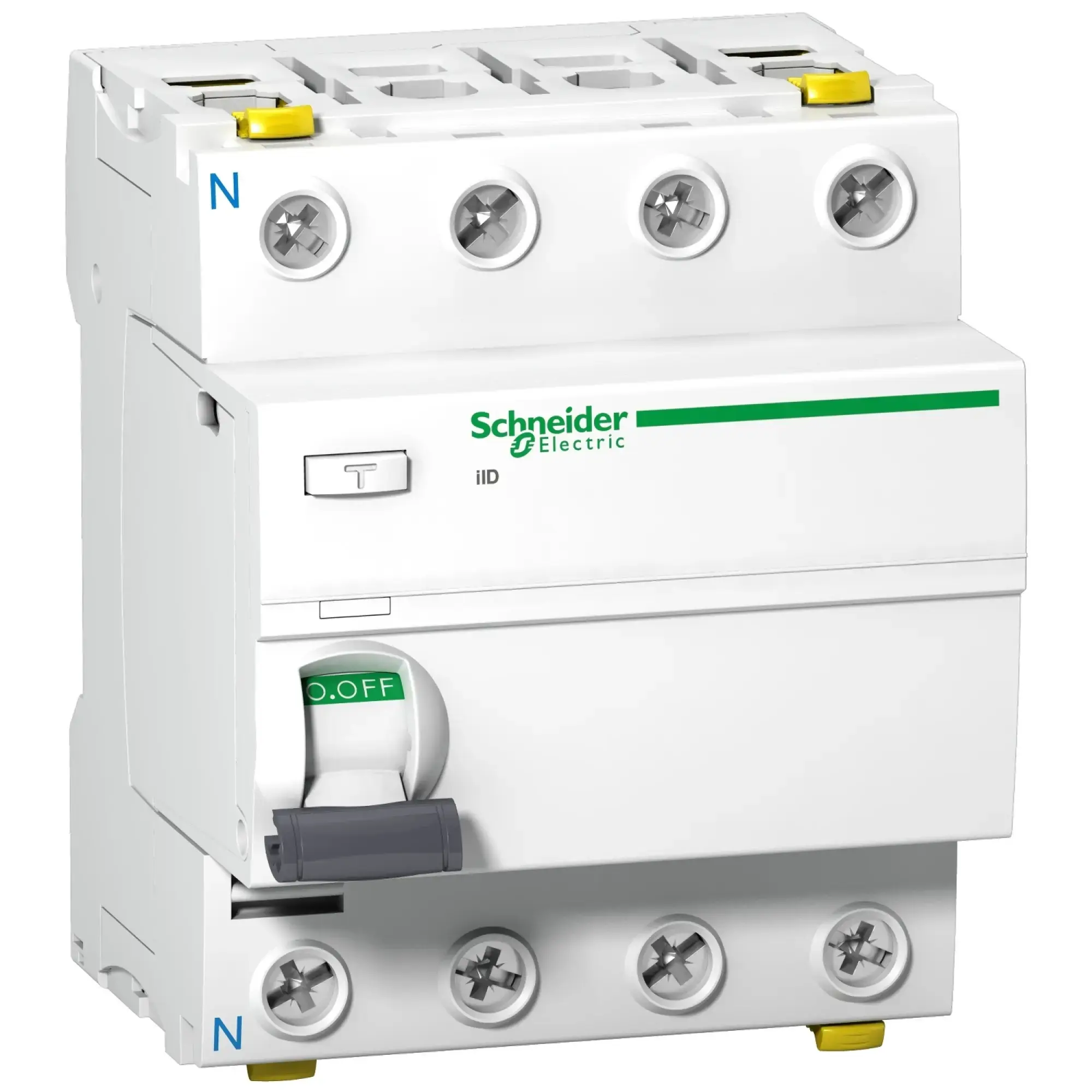

Schneider Electric A9Z25480 ACTI9 IID 4P 80A 300MA-S A-TYPE INTERRUP

The Acti 9 iID residual current circuit breaker, 1.5kA (IEC/EN 61008-1). 4-pole, rated current 80A, earth fault sensitivity 300mA, earth fault protection class type A, selective, operating voltage (Ue) 400V AC, insulation voltage (Ui) 500V AC. Provides additional protection in case of direct contact (≤ 30mA). Protection against indirect contact, for example, in case of insulation faults (≥ 100mA, ≤ 300mA). Fault protection in construction site power distribution boards (500mA). Switching and disconnecting of circuits. Snap-action mechanism for low-wear switching of the contacts. Front-side mechanical fault indication display (VisiTrip) for indication of trippings caused by overload or short-circuit. Safe contact display (VisiSafe) of the residual current circuit breaker, with a green indicator ensuring safety from live voltage on the load side. Test button for regular functional testing. Dual connection terminals for two-sided connection of cables or busbars. Easy removal of the individual device when a busbar is installed, thanks to the front accessible fixing element. Selective version- for ensuring correct differentiation between different residual current devices and tripping of the unit closest to the defect. Additional auxiliary modules available (optional)- undervoltage release (iMN), overvoltage release (iMSU), shunt trip (iMX), auxiliary contact for status reporting (iOF), fault signalisation switch (iSD). Tool-less mounting on the left side of the unit. Color RAL 9003. The iID residual current circuit breaker meets the following standards- IEC/EN 61008-1 and IEC/EN 60947-2. Furthermore, this series is VDE certified!
