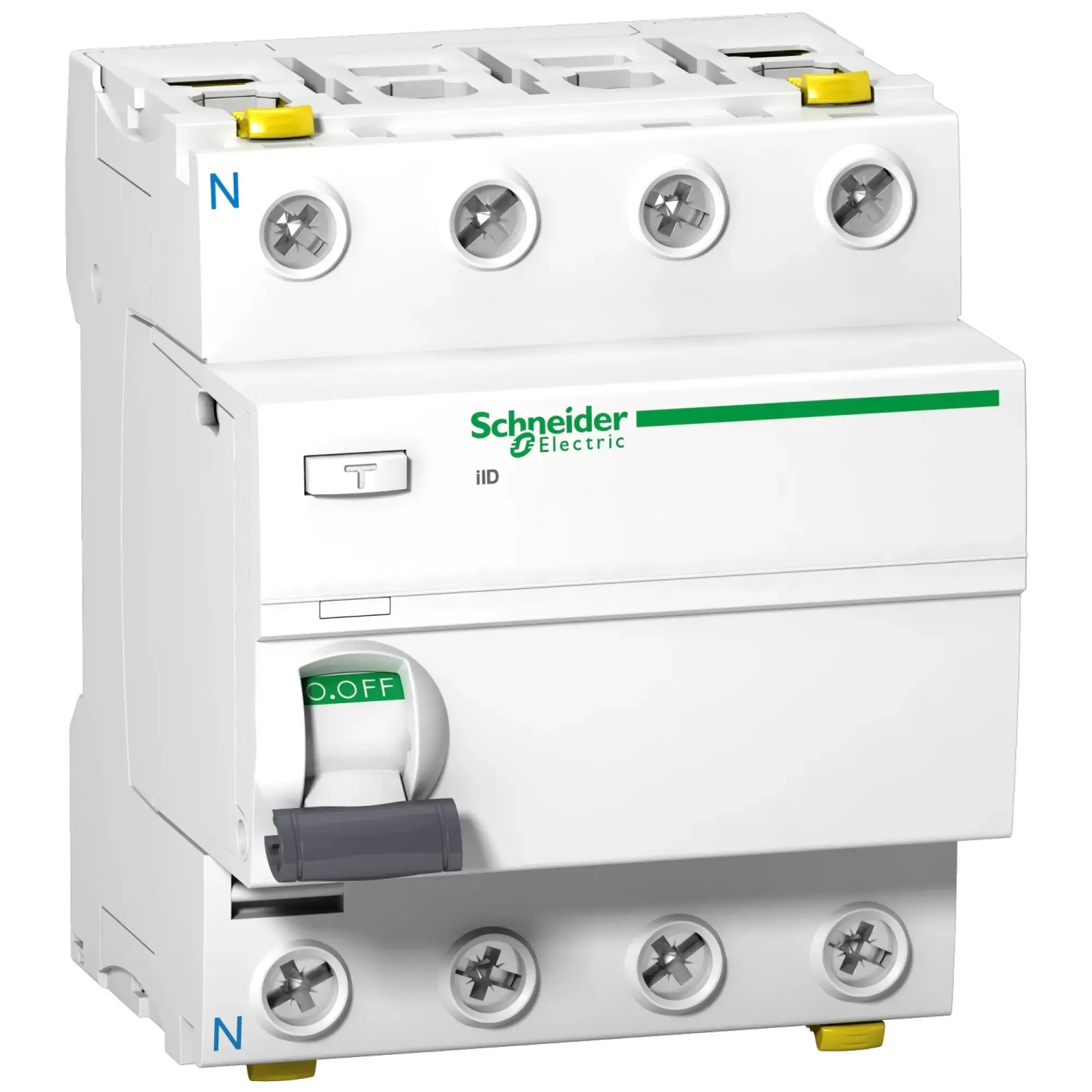

Schneider Electric A9Z24491 ACTI9 IID 4P 100A 300MA A -TYPE INTERRUPT

Residual current circuit breaker Acti 9 iID, 1.5kA (IEC/EN 61008-1). 4-pole, rated current 100A, earth leakage sensitivity 300mA, earth leakage protection class Type A, operating voltage (Ue) 400V AC, insulation voltage (Ui) 500V AC. Ensures additional protection in case of direct contact (≤ 30mA). Error protection in case of indirect contact, e.g., in the event of insulation faults (≥ 100mA, ≤ 300mA). Error protection in construction site power distribution systems (500mA). Switching and isolating circuits. Jump operation for low-wear switching of contacts. With mechanical front fault indication (VisiTrip) to display trippings due to overload or short circuit. Secure contact indication (VisiSafe) of the residual current circuit breaker when the display is green, indicates safety from voltage on the output side. Test button for regular function testing. Double connection terminals for bilateral connection of cables or phase bars. Easy removal of the individual device with an installed phase bar, thanks to the front-accessible fixing element. Additional adjacent auxiliary modules (optional) - undervoltage release (iMN), overvoltage release (iMSU), shunt trip (iMX), auxiliary switch for status reporting (iOF), error reporting switch (iSD). Tool-free mounting on the left side of the device. Color shade RAL 9003. The residual current circuit breaker iID complies with the following standards: IEC/EN 61008-1 and IEC/EN 60947-2. Furthermore, this series is VDE certified!
