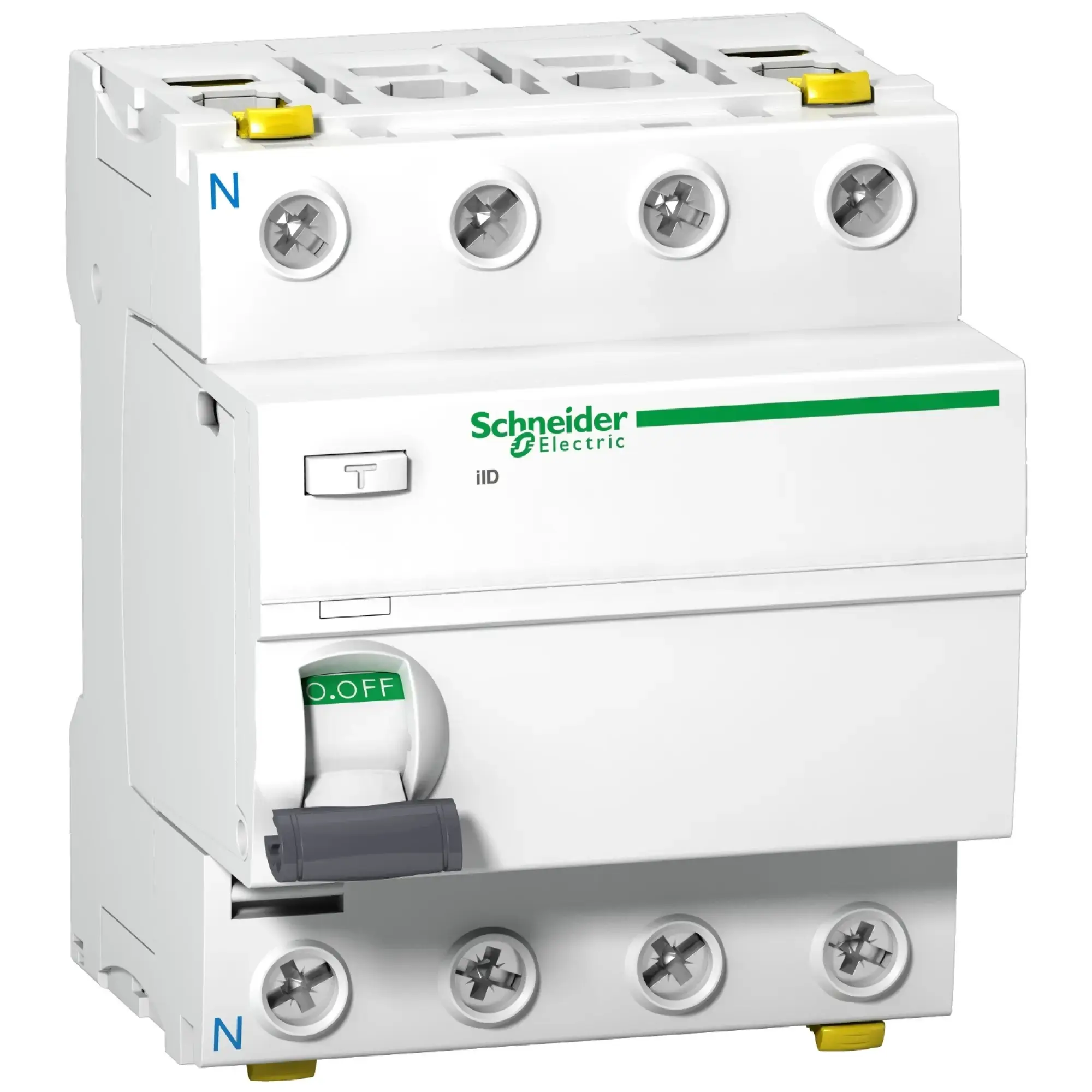

Schneider Electric A9Z24463 Acti9 iID -Interrupteur différentiel double Bornes - 4P - 63A - 100mA - type A

Residual current circuit breaker Acti 9 iID, 1.5kA (IEC/EN 61008-1). 4-pole, rated current 63A, earth fault sensitivity 300mA, earth fault protection class Type A, operating voltage (Ue) 400V AC, insulation voltage (Ui) 500V AC. Ensures additional protection in case of direct contact (≤ 30mA). Fault protection for indirect contact, e.g., in case of insulation faults (≥ 100mA, ≤ 300mA). Fault protection in construction power distribution (500mA). Switching and disconnecting of circuits. Stepping mechanism for low-wear switching of contacts. With a mechanical front-side fault indication (VisiTrip) for displaying tripping due to overload or short circuit. Safe contact indicator (VisiSafe) of the residual current circuit breaker, green indicator ensures safety of absence of voltage on the outlet side. Test button for regular function checks. Double connection terminals for bilateral connection of cables or busbars. Simple removal of individual devices with a mounted busbar, thanks to the front-accessible mounting element. Additionally modular auxiliary modules (optional) - undervoltage release (iMN), overvoltage release (iMSU), operating current release (iMX), auxiliary switch for status indication (iOF), fault signal switch (iSD). Tool-less mounting on the left side of the device. Color RAL 9003. The residual current circuit breaker iID complies with the following standards: IEC/EN 61008-1 and IEC/EN 60947-2. Moreover, this series is VDE certified!
