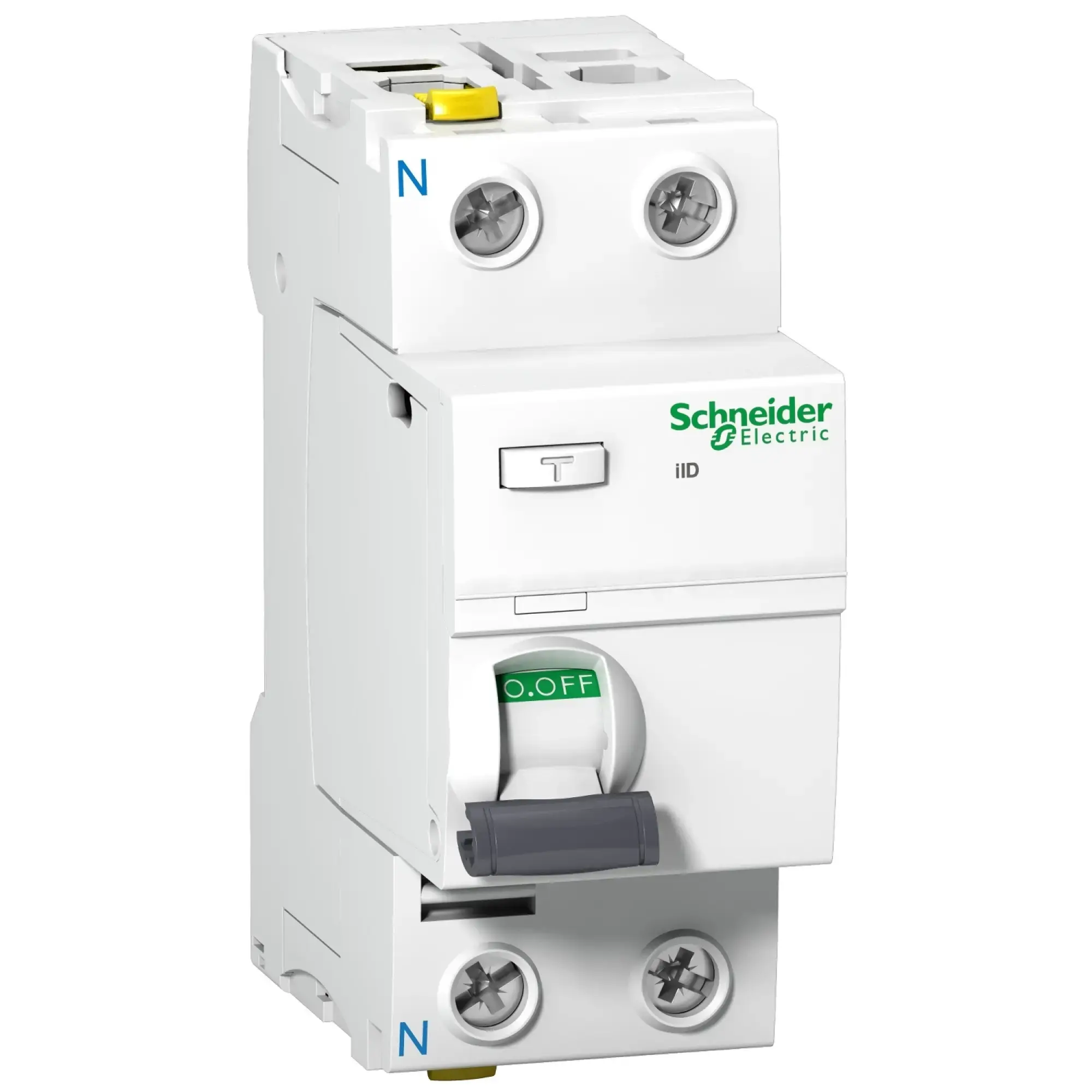

Schneider Electric A9Z24280 ACTI9 IID 2P 80A 300MA A- TYPE INTERRUPTE

Residual current circuit breaker Acti 9 iID, 1.5kA (IEC/EN 61008-1). 2-pole, rated current 80A, earth leakage sensitivity 300mA, earth fault protection class Type A, operating voltage (Ue) 230V AC, insulation voltage (Ui) 500V AC. Ensures additional protection upon direct contact (≤ 30mA). Fault protection for indirect contact, e.g., in case of insulation faults (≥ 100mA, ≤ 300mA). Fault protection in temporary power distribution boards (500mA). Switching and disconnecting circuits. Quick-break mechanism for reduced contact wear. With mechanical frontal fault indication (VisiTrip) to display trippings by overload or short circuit. Safe contact indication (VisiSafe) of the residual current circuit breaker, indicating safety from voltage on the outgoing side when the display is green. Test button for regular functional testing. Dual connection terminals for two-sided connection of cables or busbars. Simple removal of the single device with installed busbar, thanks to the front-accessible mounting element. Additional modular accessories (optional) - undervoltage release (iMN), overvoltage release (iMSU), shunt trip (iMX), auxiliary switch for status indication (iOF), fault signaling switch (iSD). Tool-less mounting on the left side of the device. Color shade RAL 9003. The residual current circuit breaker iID meets the following standards: IEC/EN 61008-1 and IEC/EN 60947-2. Furthermore, this series is VDE certified!
