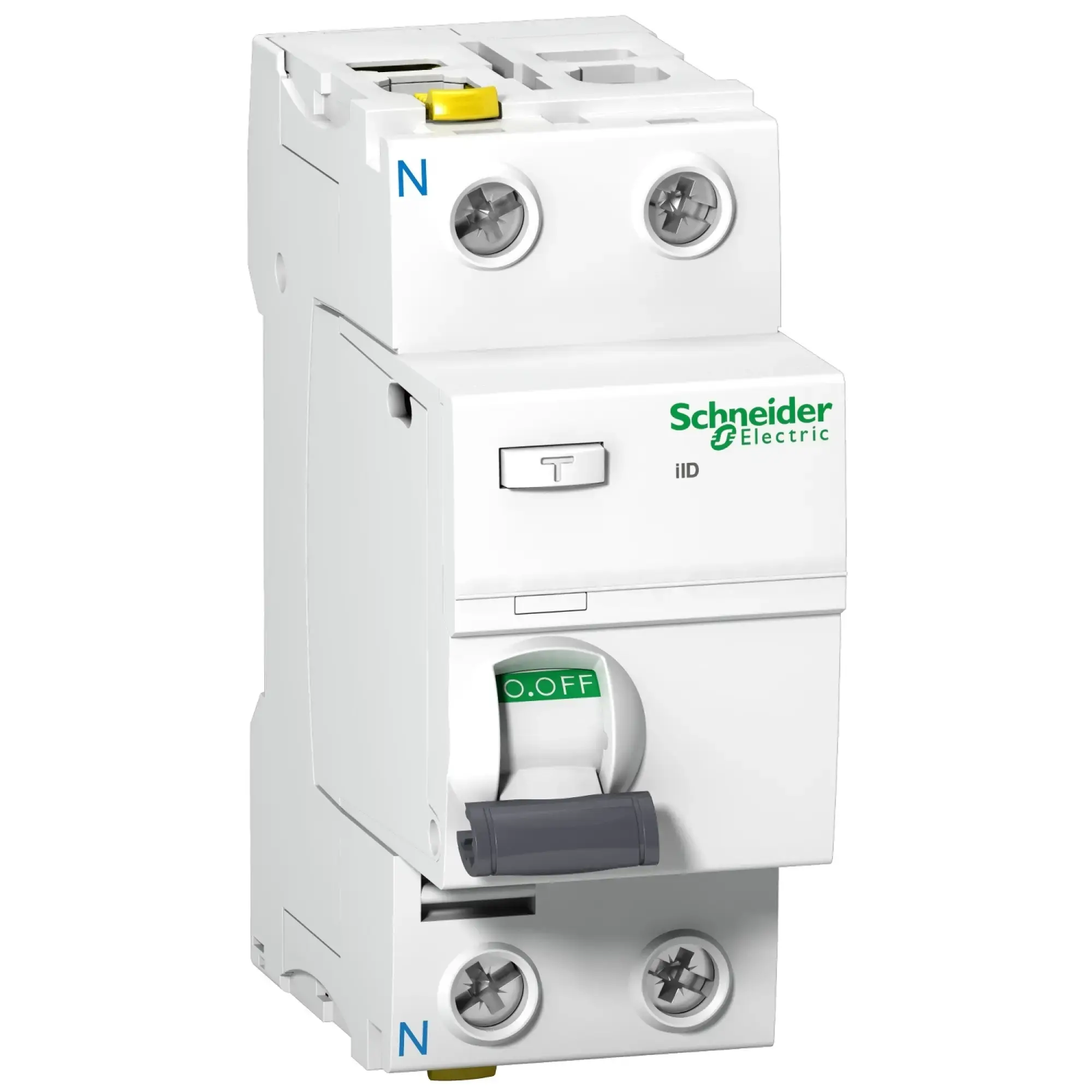

Schneider Electric A9Z24263 ACTI9 IID 2P 63A 300MA A- TYPE INTERRUPTE

Residual current circuit breaker Acti 9 iID, 1.5kA (IEC/EN 61008-1). 2-pole, rated current 63A, earth fault sensitivity 300mA, earth fault protection class Type A, operating voltage (Ue) 230V AC, insulation voltage (Ui) 500V AC. Provides additional protection against direct contact (≤ 30mA). Fault protection against indirect contact, e.g., in case of insulation faults (≥ 100mA, ≤ 300mA). Fault protection in construction power distribution boards (500mA). Switching and disconnecting of electrical circuits. Low-wear switching action of contacts. Equipped with a mechanical front-side fault indication (VisiTrip) to display tripping due to overload or short-circuit. Safe contact indication (VisiSafe) of the residual current circuit breaker, indicating safety from live contacts on the output side when the indicator is green. Test button for regular functional checks. Double connection terminals for bilateral connection of cables or busbars. Easy removal of the individual device when a busbar is installed, thanks to the front accessible mounting element. Additional auxiliary modules available (optional) - undervoltage release (iMN), overvoltage release (iMSU), shunt trip (iMX), auxiliary contact for status reporting (iOF), fault signaling switch (iSD). Tool-free mounting on the left side of the device. Colour RAL 9003. The residual current circuit breaker iID complies with the following standards: IEC/EN 61008-1 and IEC/EN 60947-2. Furthermore, this series is VDE certified!.
