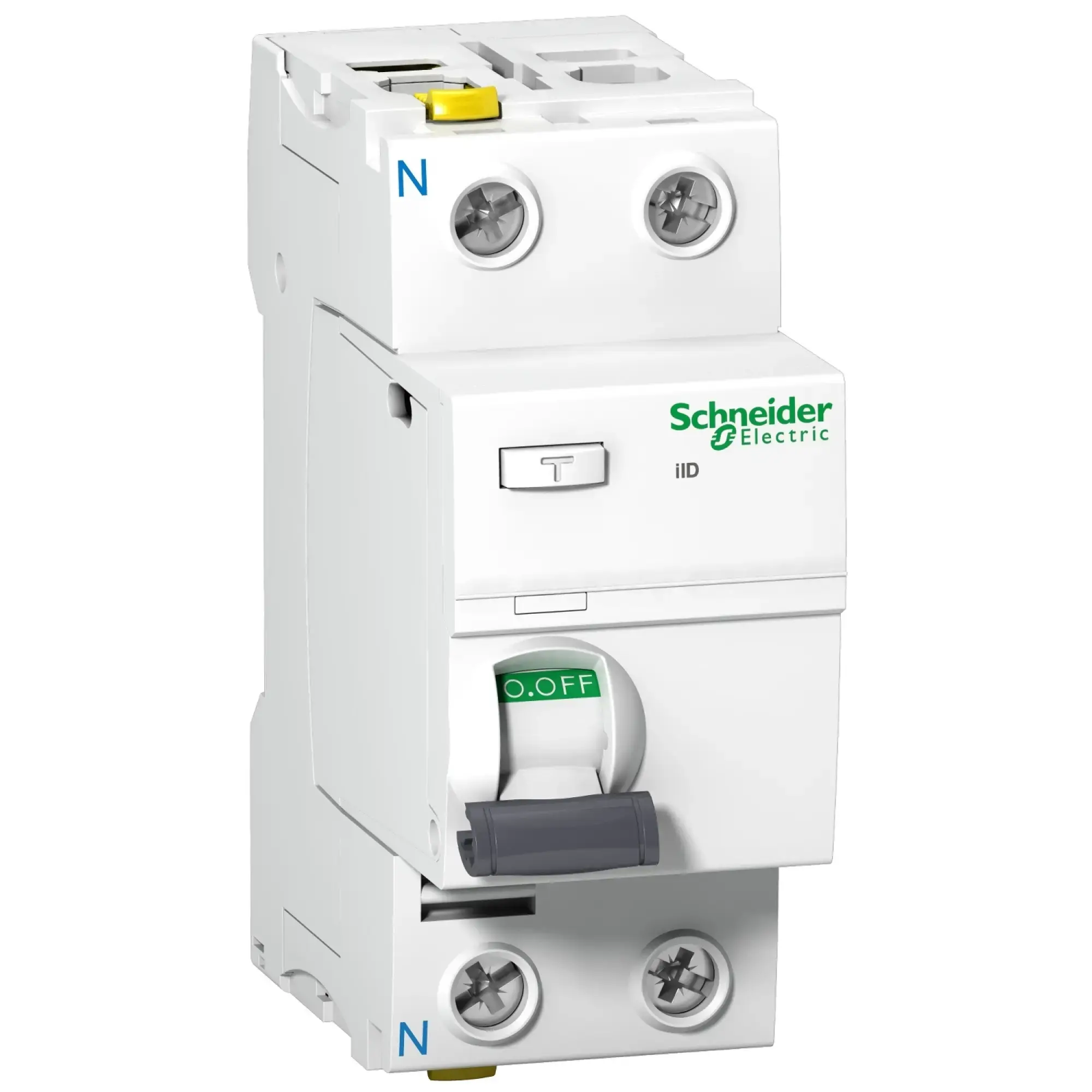

Schneider Electric A9Z24240 Acti9 iID -Interrupteur différentiel double Bornes - 2P - 40A - 300mA - type A

Residual current circuit breaker Acti 9 iID, 1.5kA (IEC/EN 61008-1). 2-pole, rated current 40A, earth fault sensitivity 300mA, earth-leakage protection class type A, operating voltage (Ue) 230V AC, insulation voltage (Ui) 500V AC. Provides additional protection in case of direct contact (≤ 30mA). Fault protection in case of indirect contact, e.g. in case of insulation faults (≥ 100mA, ≤ 300mA). Fault protection for construction site distributors (500mA). Switching and disconnecting of electrical circuits. Snap-action mechanism for low-wear switching of contacts. With mechanical front side fault indication (VisiTrip) for indicating overloads or short-circuit trips. Safe contact display (VisiSafe) of the residual current device, when the display is green it indicates that there is no voltage on the output side. Test button for regular functional checks. Dual connection terminals for connecting cables or busbars on either side. Simple removal of the individual device with installed busbar, thanks to the front-accessible mounting element. Additional auxiliary modules can be attached (optional)- undervoltage trigger (iMN), overvoltage trigger (iMSU), shunt trip (iMX), auxiliary switch for status reporting (iOF), fault signal switch (iSD). Tool-free assembly on the left side of the device. Color RAL 9003. The residual current circuit breaker iID complies with the following standards: IEC/EN 61008-1 and IEC/EN 60947-2. Moreover, this series is VDE certified!.
