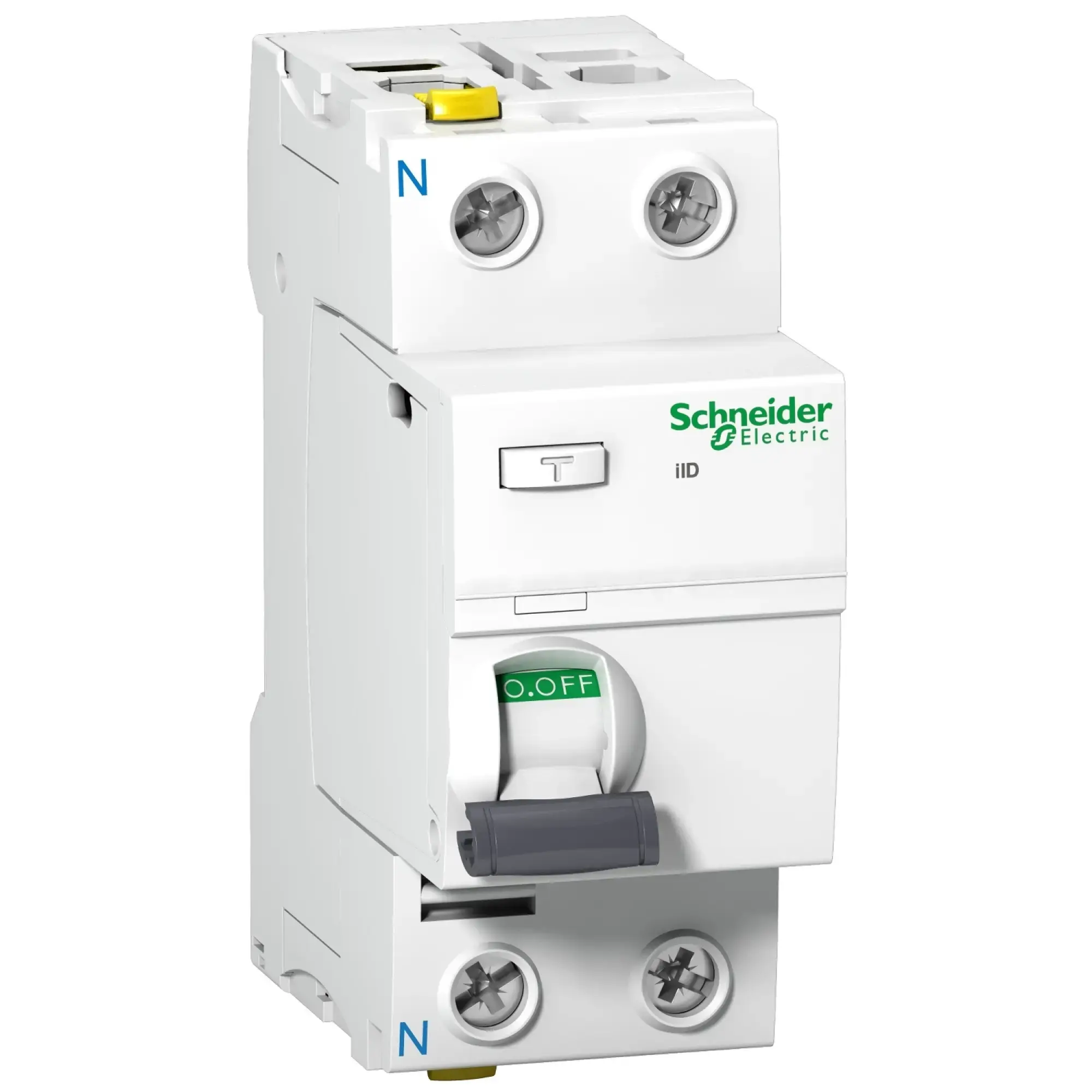

Schneider Electric A9Z24225 Acti9 iID -Interrupteur différentiel double Bornes - 2P - 25A - 300mA - type A

The Acti 9 iID residual current circuit breaker, 1.5kA (IEC/EN 61008-1). 2-pole, rated current 25A, earth leakage sensitivity 300mA, earth fault protection class Type A, operating voltage (Ue) 230V AC, insulation voltage (Ui) 500V AC. Ensures additional protection upon direct contact (≤ 30mA). Fault protection for indirect contact, e.g., insulation faults (≥ 100mA, < 300mA). Fault protection in temporary power distribution (500mA). Switching and disconnecting of circuits. Step switching for low-wear activation of contacts. With mechanical front-side fault indication (VisiTrip) showing tripping by overload or short circuit. Secure contact indicator (VisiSafe) of the residual current circuit breaker, green indicator assures safety from voltage on the output side. Test button for regular functionality checks. Double terminal connections for bilateral cable or busbar connection. Easy removal of individual devices when a busbar is installed, thanks to the front-accessible mounting element. Additional modular auxiliary units (optional)- under-voltage release (iMN), over-voltage release (iMSU), shunt trip (iMX), auxiliary switch for status reporting (iOF), fault signal switch (iSD). Tool-free assembly on the left-hand side of the device. Color RAL 9003. The iID residual current circuit breaker meets the following standards: IEC/EN 61008-1 and IEC/EN 60947-2. Moreover, this series is VDE certified!
