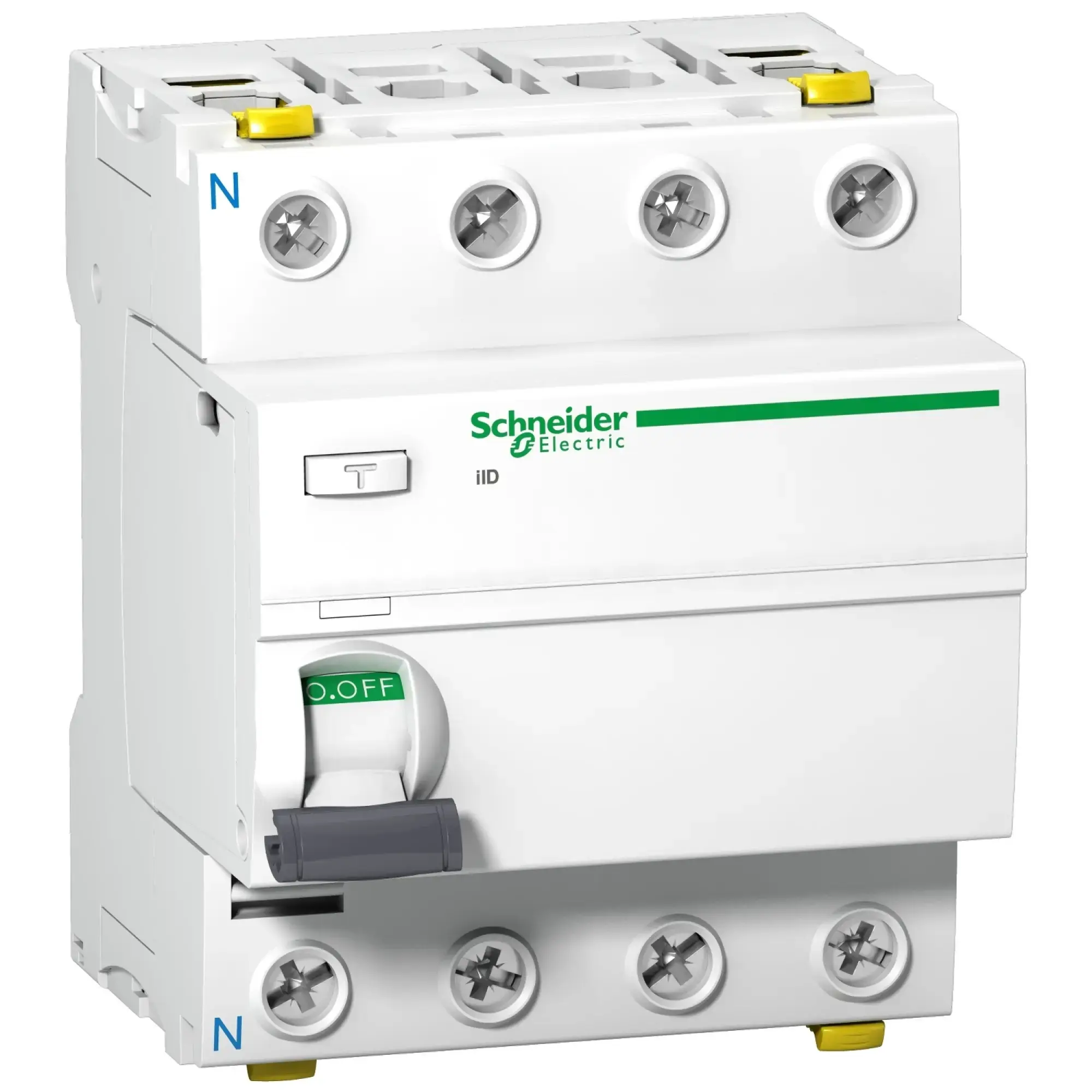

Schneider Electric A9Z22491 ACTI9 IID 4P 100A 100MA A -TYPE INTERRUPT

Residual current circuit breaker Acti 9 iID, 1.5kA (IEC/EN 61008-1). 4-pole, rated current 100A, earth fault sensitivity 100mA, earth fault protection class type A, operating voltage (Ue) 400V AC, insulation voltage (Ui) 500V AC. Ensures additional protection in case of direct contact (≤ 30mA). Fault protection in case of indirect contact, e.g., in case of insulation faults (≥ 100mA, ≤ 300mA). Fault protection in construction site distribution boards (500mA). Switching and isolating of circuits. Step switching for low-wear activation of contacts. Equipped with a mechanical front-side fault indication (VisiTrip) to show tripping due to overload or short circuit. Reliable contact indicator (VisiSafe) for the residual current device, with a green indicator ensuring the absence of voltage on the outgoing side. Test button for regular functional tests. Dual connection terminals for the connection of cables or busbars on both sides. Easy removal of the individual device with installed busbar, thanks to the front accessible fastening element. Additionally, connectable auxiliary modules (optional) - undervoltage release (iMN), overvoltage trip (iMSU), working current trip (iMX), auxiliary switch for status reporting (iOF), fault signaling switch (iSD). Tool-free assembly on the left side of the device. Color RAL 9003. The residual current circuit breaker iID meets the following standards: IEC/EN 61008-1 and IEC/EN 60947-2. This series is also VDE certified!.
