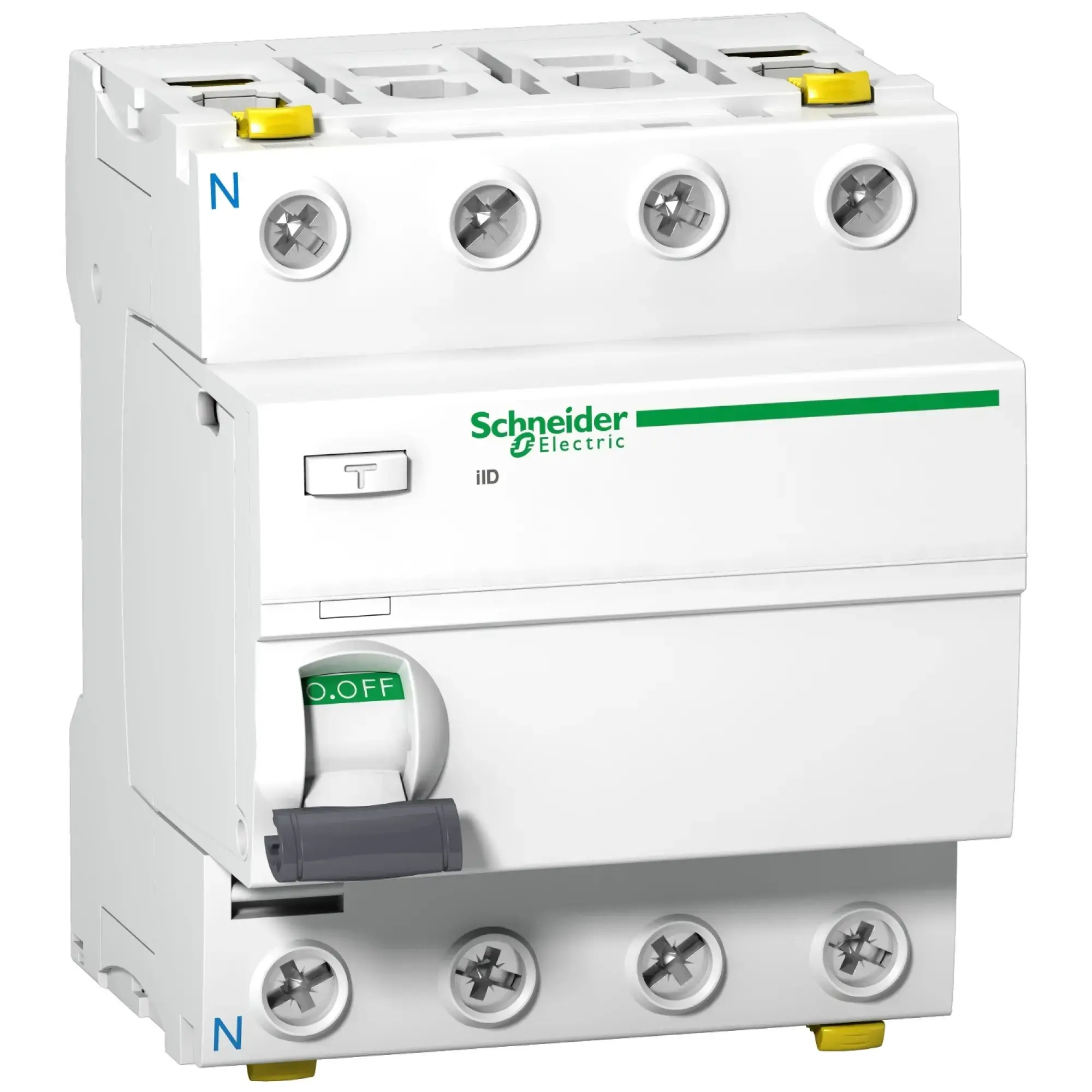

Schneider Electric A9Z21480 Acti9 iID -Interrupteur différentiel double Bornes - 4P - 80A - 30mA - type A

The Acti 9 iID residual current circuit breaker, 1.5kA (IEC/EN 61008-1). 4-pole, rated current 80A, earth fault sensitivity 30mA, earth fault protection class Type A, operating voltage (Ue) 400V AC, insulation voltage (Ui) 500V AC. Ensures additional protection in case of direct contact (≤ 30mA). Fault protection in case of indirect contact, e.g., in case of insulation faults (≥ 100mA, ≤ 300mA). Fault protection in construction power distributors (500mA). Switching and disconnecting of circuits. Snap action for low-wear switching of contacts. With mechanical front-side fault indication display (VisiTrip) to indicate trippings by overload or short circuit. Safe contact display (VisiSafe) of the residual current circuit breaker when the display is green indicating safety from live voltage on the output side. Test button for regular functional testing. Dual connection terminals for connecting cables or busbars on both sides. Simple removal of the individual device when a busbar is installed, thanks to the front-accessible fastening element. Additionally connectable auxiliary modules (optional)- undervoltage release (iMN), overvoltage release (iMSU), shunt trip (iMX), auxiliary switch for status indication (iOF), fault signaling switch (iSD). Tool-free mounting on the left side of the device. Color RAL 9003. The iID residual current circuit breaker meets the following standards- IEC/EN 61008-1 and IEC/EN 60947-2. Furthermore, this series is VDE certified!.
