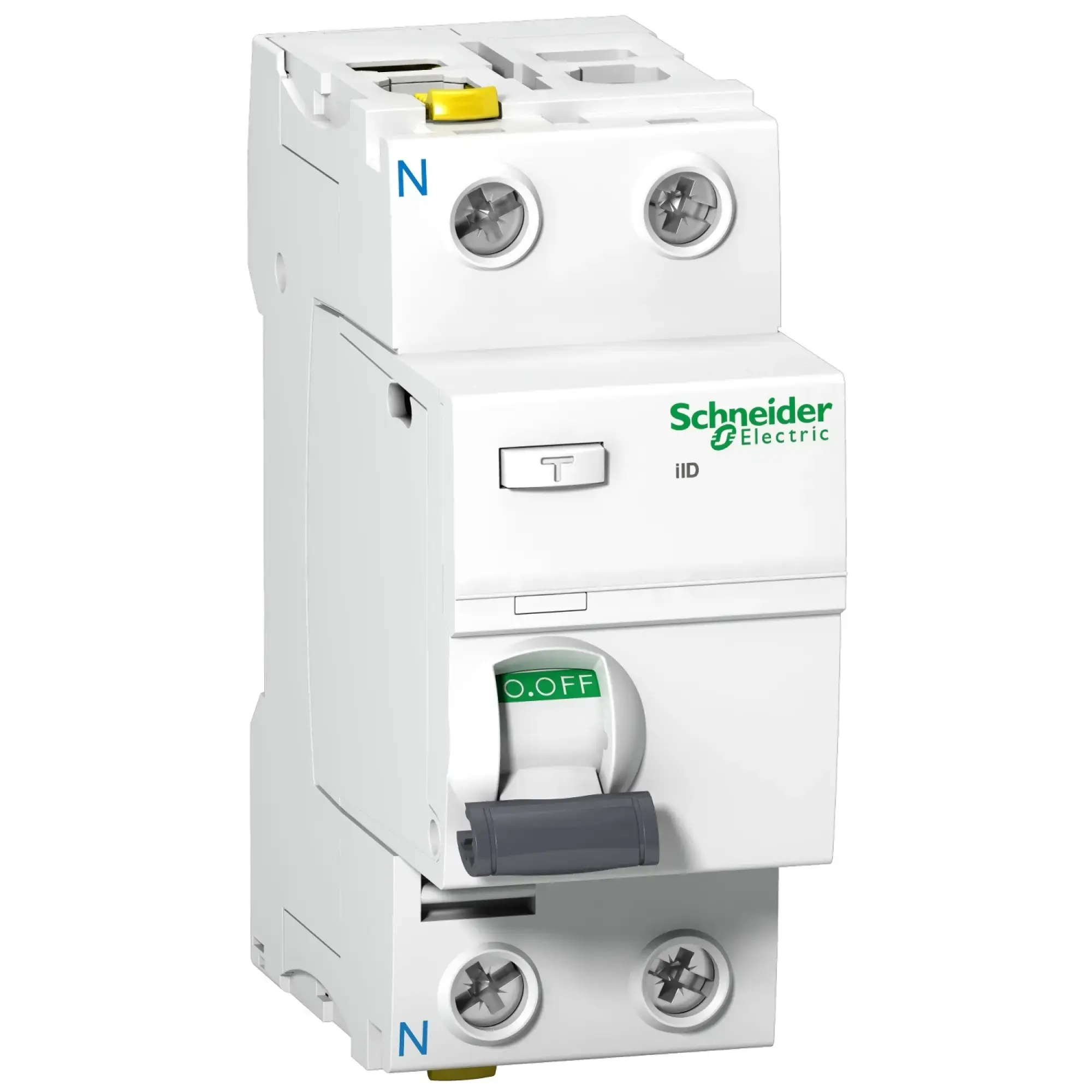

Schneider Electric A9Z21263 ACTI9 IID 2P 63A 30MA A-T YPE INTERRUPTEU

Residual current circuit breaker Acti 9 iID, 1.5kA (IEC/EN 61008-1). 2-pole, rated current 63A, ground fault sensitivity 30mA, ground fault protection class Type A, operating voltage (Ue) 230V AC, insulation voltage (Ui) 500V AC. Provides additional protection in case of direct contact (≤ 30mA). Fault protection in case of indirect contact, e.g., insulation faults (≥ 100mA, ≤ 300mA). Fault protection in construction power distribution (500mA). Switching and disconnecting circuits. Jump switch for wear-reduced switching of contacts. With mechanical front-side fault indication (VisiTrip) for displaying trips caused by overload or short circuit. Secure contact indication (VisiSafe) of the residual current device, with green indication safety of de-energized condition on the output side. Test button for regular functional testing. Double connection terminals for dual-sided connection of cables or phase bars. Simple removal of the individual device when the phase bar is installed, thanks to the front-accessible fixing element. Additionally connectable auxiliary modules (optional)- undervoltage release (iMN), overvoltage release (iMSU), shunt trip (iMX), auxiliary switch for status reporting (iOF), fault signaling switch (iSD). Tool-free assembly on the left side of the device. Color shade RAL 9003. The residual current circuit breaker iID meets the following standards- IEC/EN 61008-1 and IEC/EN 60947-2. Furthermore, this series is VDE certified!.
