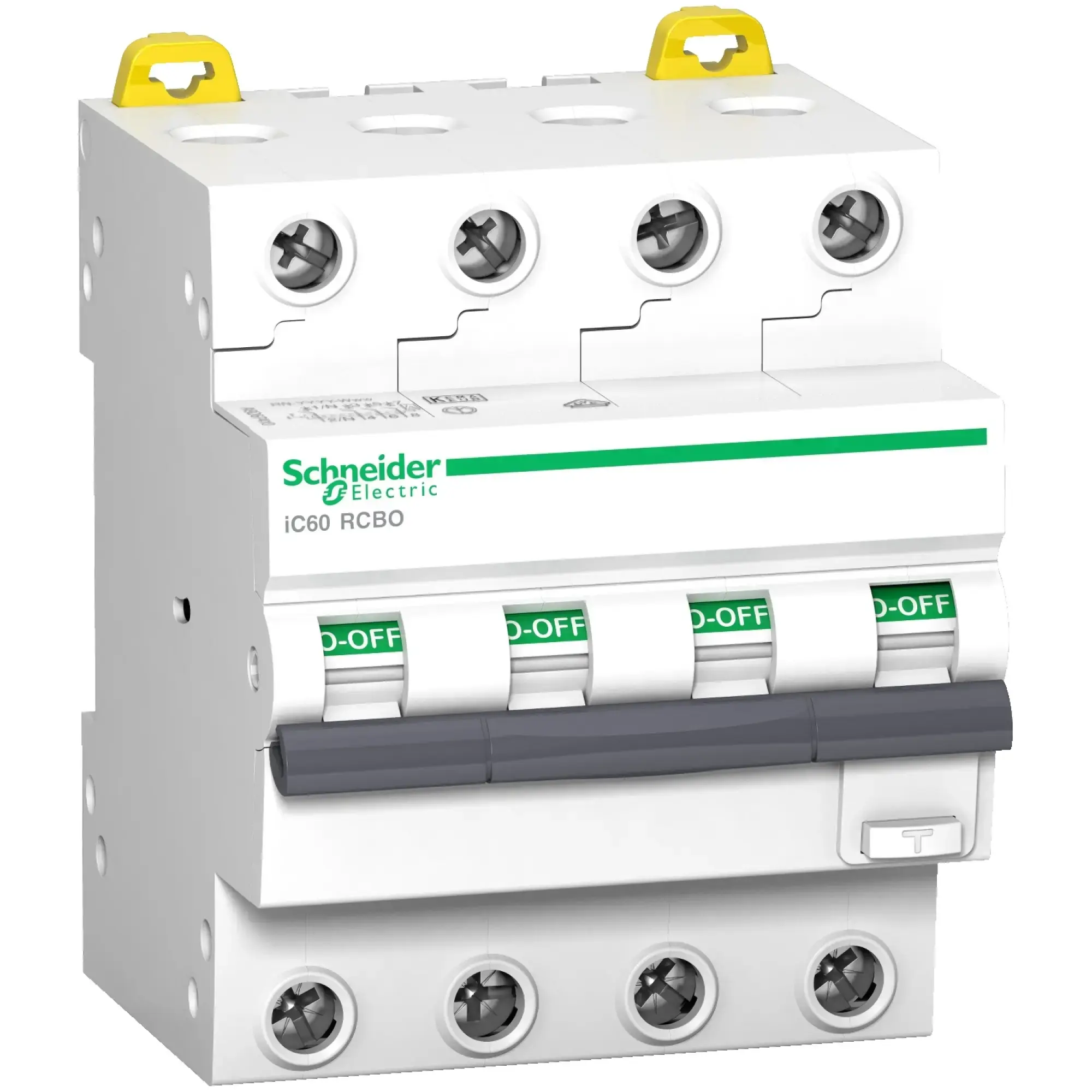

Schneider Electric A9D87420 Acti9 IC60 RCBO 4P 20A Cb B 30mA Type A 6KA Régime IT 400V

Residual current circuit breaker with overcurrent protection (RCBO) Acti 9 iC60N, 6kA (IEC/EN 61009-1 and IEC/EN 61009-2-1), 6kA (IEC/EN 60947-2). 4-pole, rated current 20A, B-characteristics, earth fault sensitivity 30mA, earth leakage protection type A, operating voltage (Ue) 230V AC, insulation voltage (Ui) 500V AC. Ensures comprehensive protection of final circuits against overcurrents and fault currents. Switching and disconnecting circuits. Arc-free switchgear for low-wear switching of contacts. Mechanically separate red indicator in case of fault trip of the circuit breaker or tripping due to a residual current. Clear switching position indication by green marking on the device's switch toggle. Test button for regular function testing. Unit technology - thermomagnetic. Additionally arrangeable auxiliary modules (optional) - Auxiliary switch for status reporting (iOF), fault signaling switch (iSD), OF/SD switch with Ti24 interface for status reporting to a programmable logic controller (iOF/SD24). Tool-less mounting on the left side of the device. Color RAL 9003. The iC60N RCBO complies with the following standards: IEC/EN 61009-1, IEC/EN 61009-2-1, and IEC/EN 60947-2. Moreover, this series is VDE certified!
