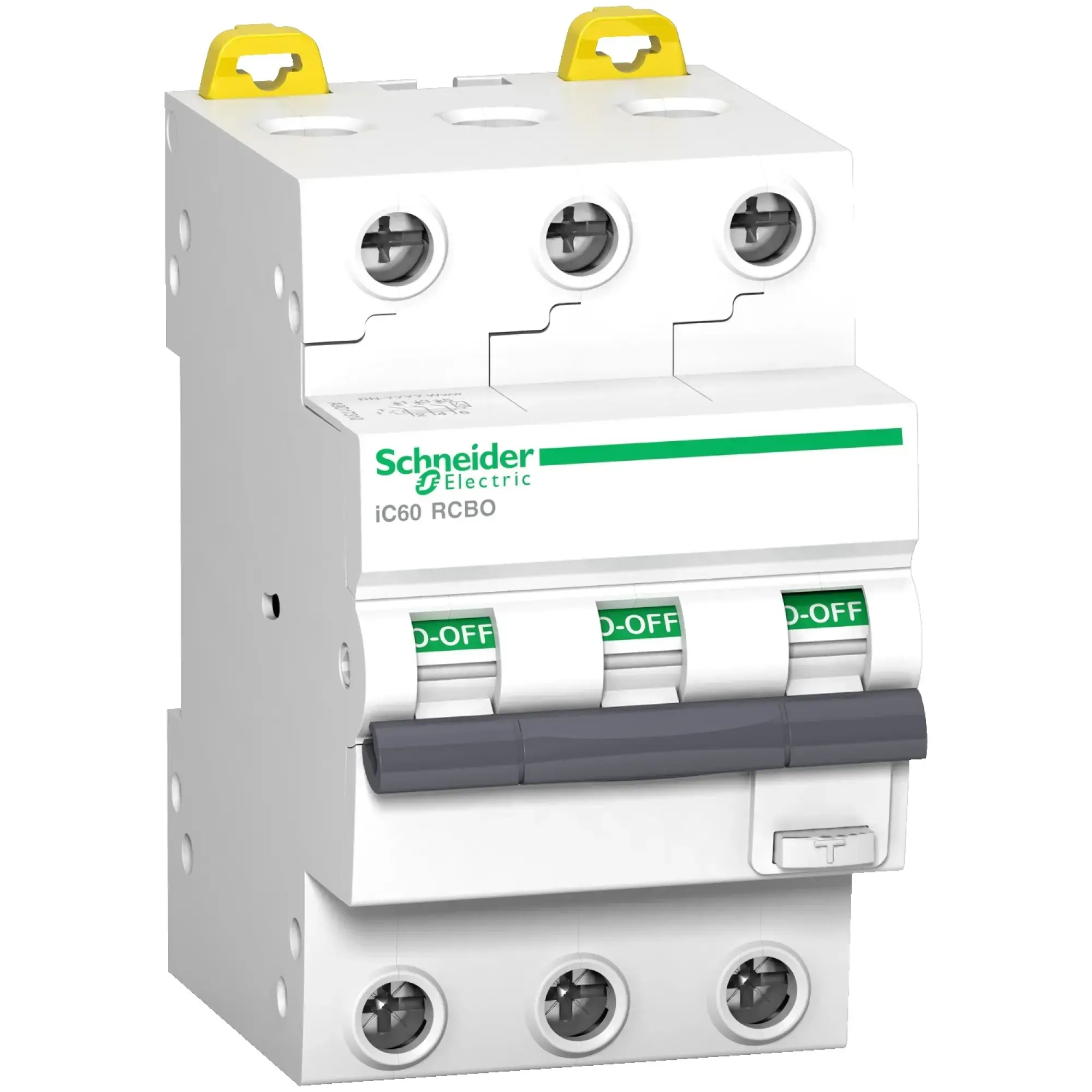

Schneider Electric A9D67316 Acti9 IC60 RCBO 3P 16A Cb C 30mA Type A 6KA Régime IT 400V

Residual current circuit breaker with overcurrent protection (RCBO) Acti 9 iC60N, 6kA (IEC/EN 61009-1 and IEC/EN 61009-2-1), 6kA (IEC/EN 60947-2). 3-pole, rated current 16A, C-characteristic, ground fault sensitivity 30mA, ground fault protection class Type A, operating voltage (Ue) 230V AC, insulation voltage (Ui) 500V AC. Ensures comprehensive protection of end circuits against overcurrents and residual currents. Switching and disconnecting circuits. Step switching for low-wear contact switching. Mechanically separate red indication for circuit breaker trip or residual current trip. Clear switching position indication by green marking on the toggle of the device. Test button for regular function check. Technology of the trip unit- thermomagnetic. Additional auxiliaries can be attached (optional)- Auxiliary switch for status reporting (iOF), fault signal switch (iSD), OF/SD switch with Ti24 interface for status reporting to a programmable logic controller (iOF/SD24). Tool-free mounting on the left side of the device. Color RAL 9003. The RCBO iC60N complies with the following standards: IEC/EN 61009-1, IEC/EN 61009-2-1 and IEC/EN 60947-2. Furthermore, this series is VDE certified!.
