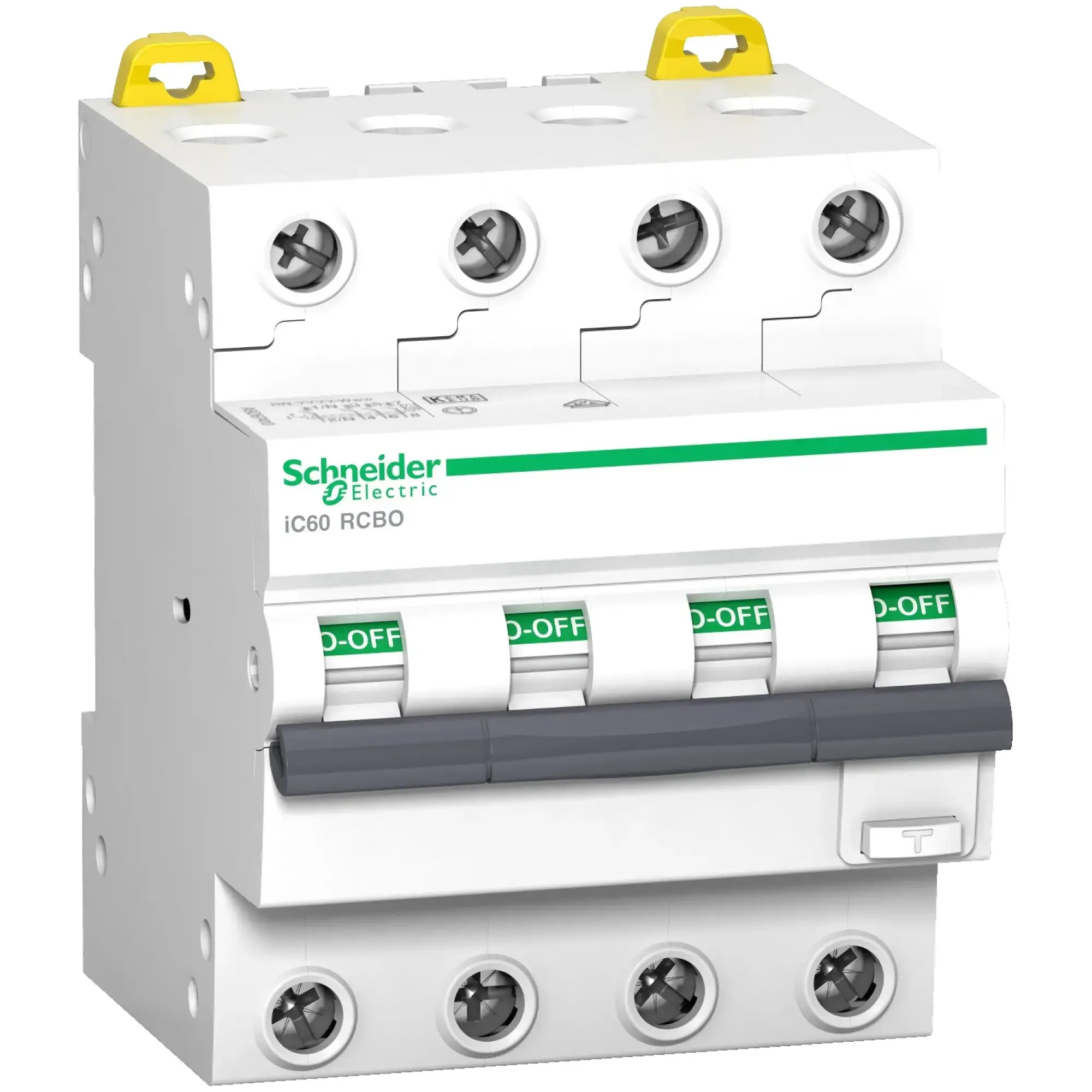

Schneider Electric A9D52432 Acti9 IC60 RCBO 4P 32A Cb C 300mA Type A 6KA Régime IT 400V

Residual current circuit breaker with overcurrent protection (RCBO) Acti 9 iC60N, 6kA according to IEC/EN 61009-1 and IEC/EN 61009-2-1, 6kA according to IEC/EN 60947-2. 4-pole, nominal current 32A, C-characteristic, earth fault sensitivity 300mA, earth leakage protection class type A, operating voltage (Ue) 230V AC, insulation voltage (Ui) 500V AC. Ensures comprehensive protection of end circuits against overcurrents and fault currents. Switching and disconnecting of circuits. Cyclic switching for low-wear switching of contacts. Mechanically separated red indicator for circuit breaker trip or tripping due to residual current. Clear switching position indication by green marking on the device's control lever. Test button for regular function testing. Tripping unit technology- thermal magnetic. Additional modular accessories (optional)- Auxiliary contact for status indication (iOF), fault-signal contact (iSD), OF/SD contact with Ti24 interface for condition reporting to a programmable logic controller (iOF/SD24). Tool-free mounting on the left side of the device. Color shade RAL 9003. The RCBO iC60N complies with the following standards: IEC/EN 61009-1, IEC/EN 61009-2-1 and IEC/EN 60947-2. Furthermore, this series is VDE certified!
