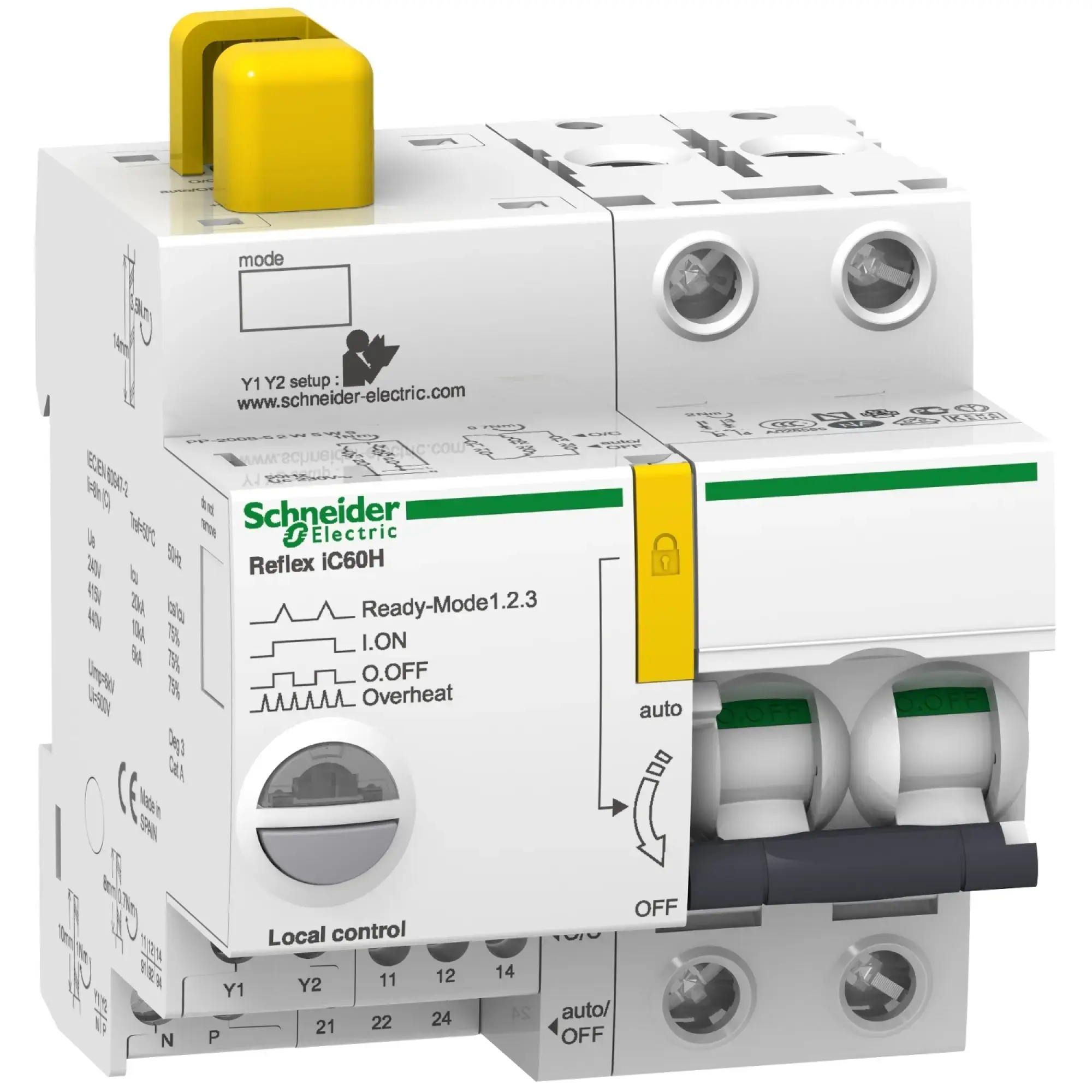

Schneider Electric A9C64210 Acti9, Reflex iC60H disjonct. à commande intégrée interface Ti24 10A 2P courbe B

Remotely controllable circuit breaker Acti 9 Reflex iC60H, breaking capacity of 30kA at 220-240V AC (EN/IEC 60947-2), 15kA at 380-415V AC (EN/IEC 60947-2). 2-pole, nominal current 10A, B-characteristic, Ti24 interface, insulation voltage (Ui) 500V. Remote switching via pulse and/or continuous signal according to one of three adjustable operating modes set by the user. Protects circuits against short-circuit currents. Protects circuits against overload currents. Disconnects circuits. With Ti24 connection for direct integration into PLC or decentralized I/O. Bistable switching mechanism requires no holding power. Green indicator on the switch guarantees that the contacts are open and safe work on the outgoing side is ensured. Snap-action mechanism ensures low-wear switching of contacts. Operating state indicator light. Control via three adjustable operating modes using the push button on the front of the device. IP20 protection rating. For controlling the Y1 and Y2 inputs with 24/48V AC/DC, the iMDU coupling relay can be used. Color RAL 9003. The remotely controllable circuit breaker Reflex iC60H meets the following standards IEC/EN 60947-2.
