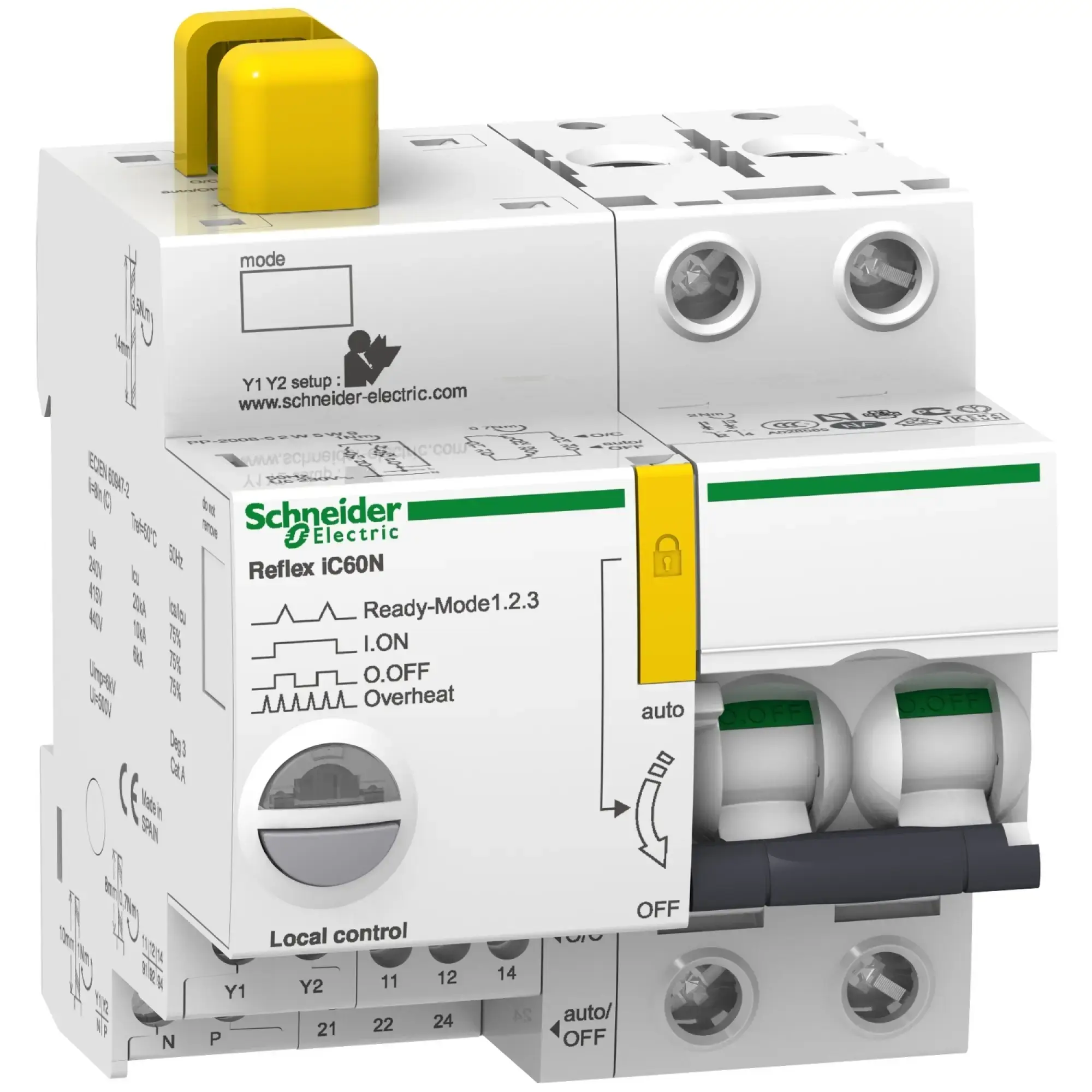

Schneider Electric A9C63225 Acti9, Reflex iC60N disjonct. à commande intégrée interface Ti24 25A 2P courbe D

Remote controllable circuit breaker Acti 9 Reflex iC60N, tripping capacity 20kA at 220-240V AC (EN/IEC 60947-2), 10kA at 380-415V AC (EN/IEC 60947-2). 2-pole, rated current 25A, D-characteristic, Ti24 interface, insulation voltage (Ui) 500V. Remote switching by means of pulse and/or continuous signal according to one of the three adjustable operating modes by the user. Protecting circuits against short-circuit currents. Protecting circuits against overload currents. Disconnecting circuits. With Ti24 connection for the direct connection to PLC or decentralized I/O. Bistable switching mechanism does not require holding power. Green indicator on the switch guarantees that the contacts are open and ensures safe working on the outgoing side. Spring switching guarantees wear-resistant switching of the contacts. Operating state indicator light. Control by three adjustable operating modes using the push button on the device front panel is possible. Protection rating IP20. For the control of inputs Y1 and Y2 via 24/48V AC/DC, the coupling relay iMDU can be used. Shade RAL 9003. The remote controllable circuit breaker Reflex iC60N complies with the following standards IEC/EN 60947-2.
