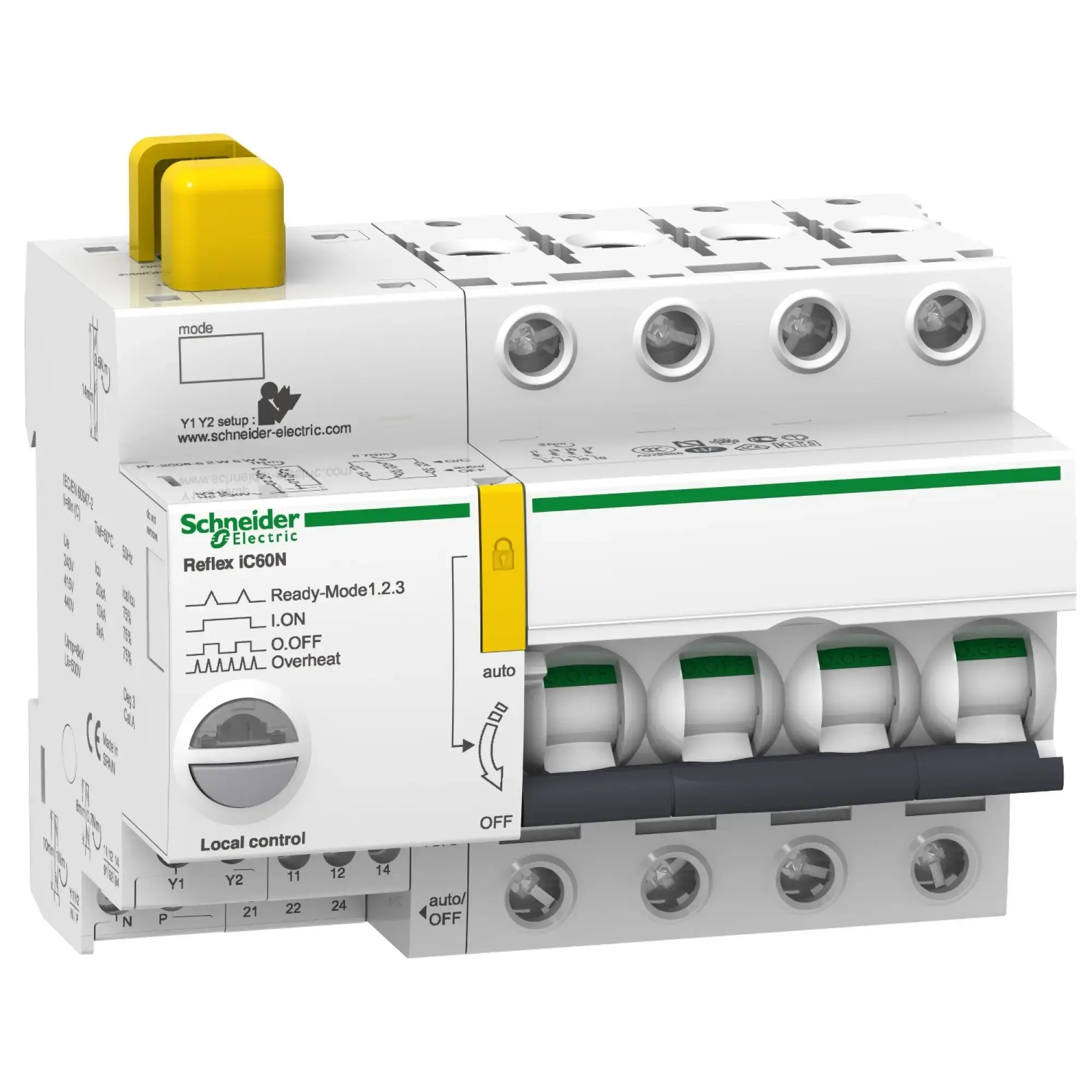

Schneider Electric A9C61410 Acti9 Reflex iC60N - disjonc. à commande intégrée interface Ti24 10A 4P courbe B

Remotely switchable circuit breaker Acti 9 Reflex iC60N, disconnecting capacity 20kA at 220-240V AC (EN/IEC 60947-2), 10kA at 380-415V AC (EN/IEC 60947-2). 4-pole, rated current 10A, B-characteristic, Ti24 interface, insulation voltage (Ui) 500V. Remote control by pulse and/or continuous signal according to one of the three adjustable operating modes by the user. Protection of circuits against short-circuit currents. Protection of circuits against overload currents. Disconnecting circuits. With Ti24 connection for direct integration into PLCs or decentralized I/O. Bistable switching mechanism requires no holding power. Green indication on the switch guarantees that the contacts are open and ensures safe work on the outgoing side. Snap action ensures low-wear switching of the contacts. Operating state indicator light. Control by three adjustable operating modes using the push button on the front of the device. Degree of protection IP20. For controlling inputs Y1 and Y2 with 24/48V AC/DC, the coupling relay iMDU can be used. Color tone RAL 9003. The remotely switchable circuit breaker Reflex iC60N meets the following standards IEC/EN 60947-2.
