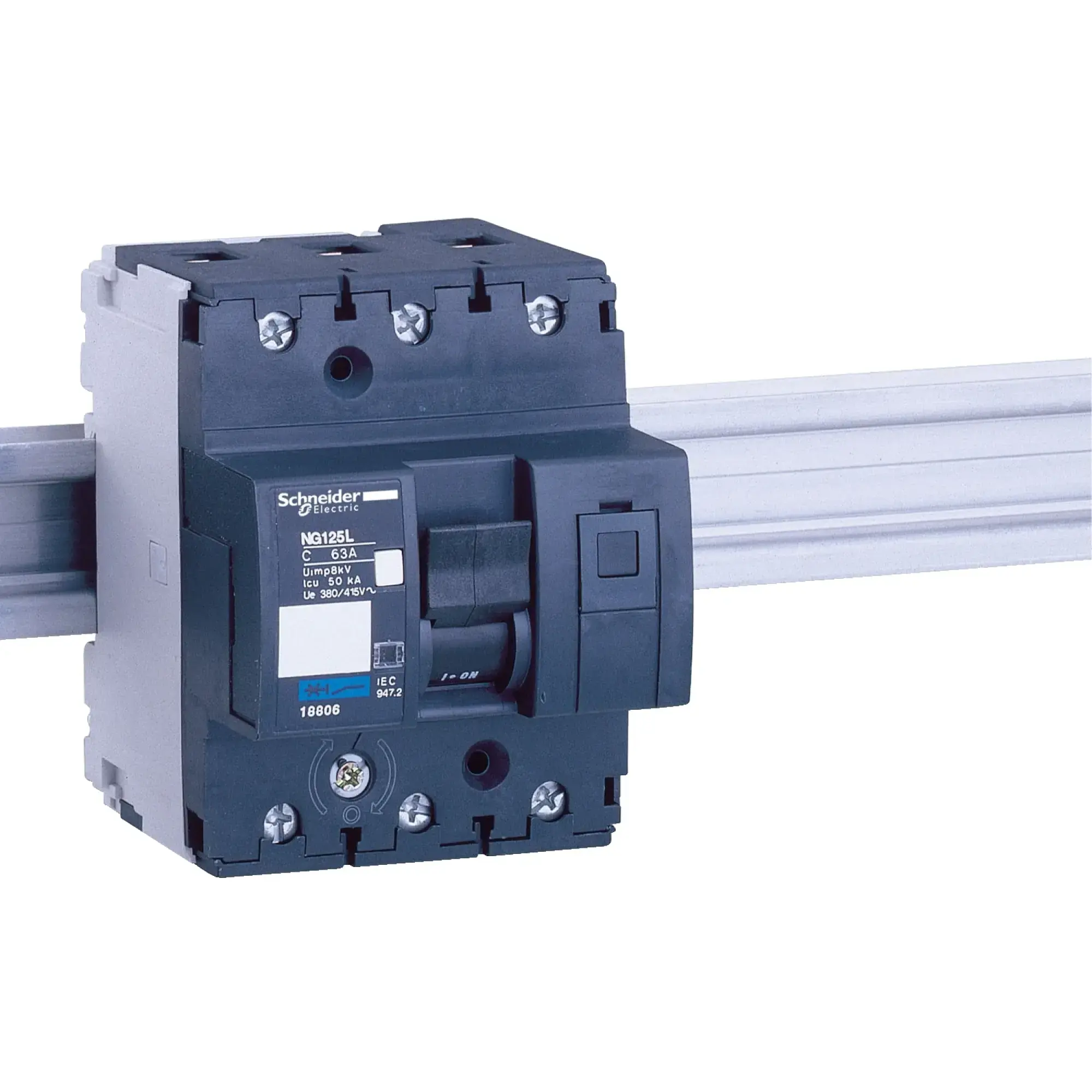

Schneider Electric 18764 Multi9 disjoncteur modulaire - NG125L - 3 pôles - 40 A- courbe B

Circuit breaker Acti 9 NG125L, 50kA (IEC/EN 60947-2). 3-pole, rated current 40A, B-characteristic, operating voltage (Ue) 380-415V AC, isolation voltage (Ui) 690V AC. Protection of the circuit against short-circuit currents. Protection of the circuit against overload currents. The tripping is indicated by the central position of the toggle switch and a red, mechanical indicator on the front of the device. Test button for checking the tripping mechanism. Supply from top or bottom. Snap action for low-wear switching of contacts. Technology of the tripping unit- thermomagnetic. Additional modular auxiliary units (optional)- indication of switch position, fault trip, shunt trip, undervoltage release, overvoltage release. The NG125L circuit breaker meets the following standards- IEC/EN 60947-2.
