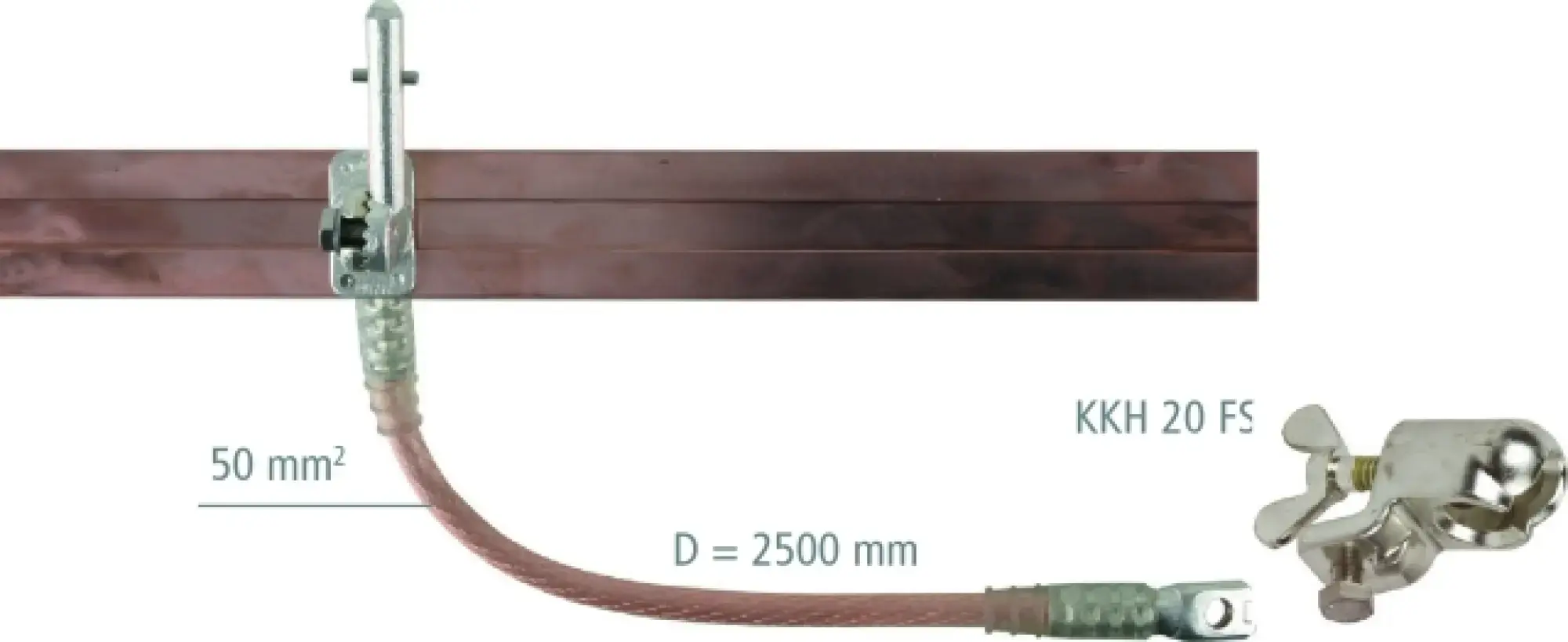

Dehn VHNEFQE Short-circuiting bar 60x12mm E-Cu F20 with hexagon shaft

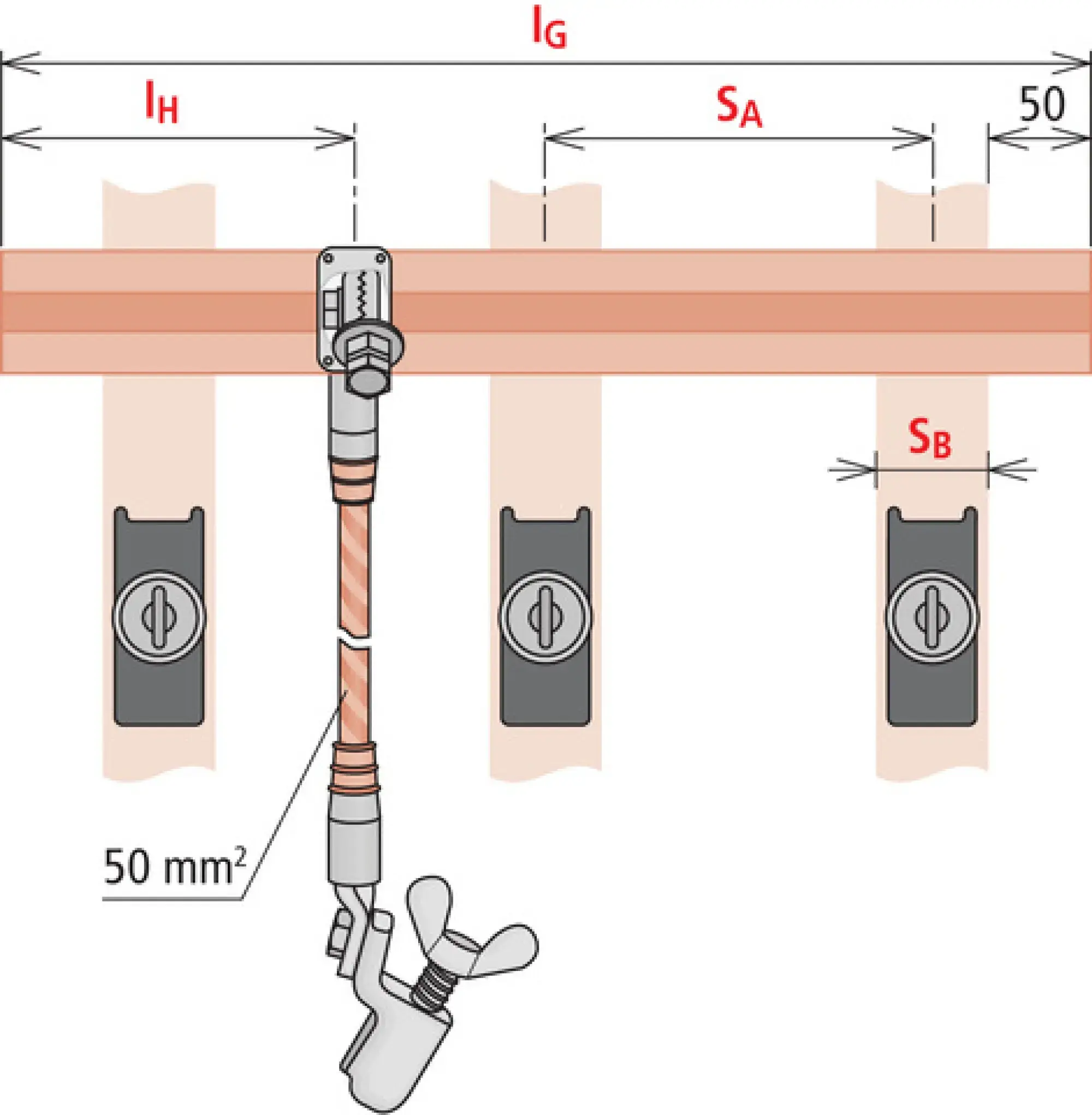

Copper short-circuiting bar in accordance with EN/IEC 61230 (DIN VDE 0683-100) for earthing and short-circuiting electrical installations at the work location in accordance with EN 50110 (DIN VDE 0105-100). Coupling mechanism: hexagon shaft, profile: 60x12 mm, max. short-circuit current: 130 kA / 0.5 s, variant No.: VHNEFQE (with standard lengths: short-circuiting bar = 500 mm, earthing cable = 2500 mm fitted with KKH Part No. 772 312). Other short-circuiting bar and earthing cable lengths can be selected online via the earthing and short-circuiting configurator at www.dehn.de/en/euk.
