909831

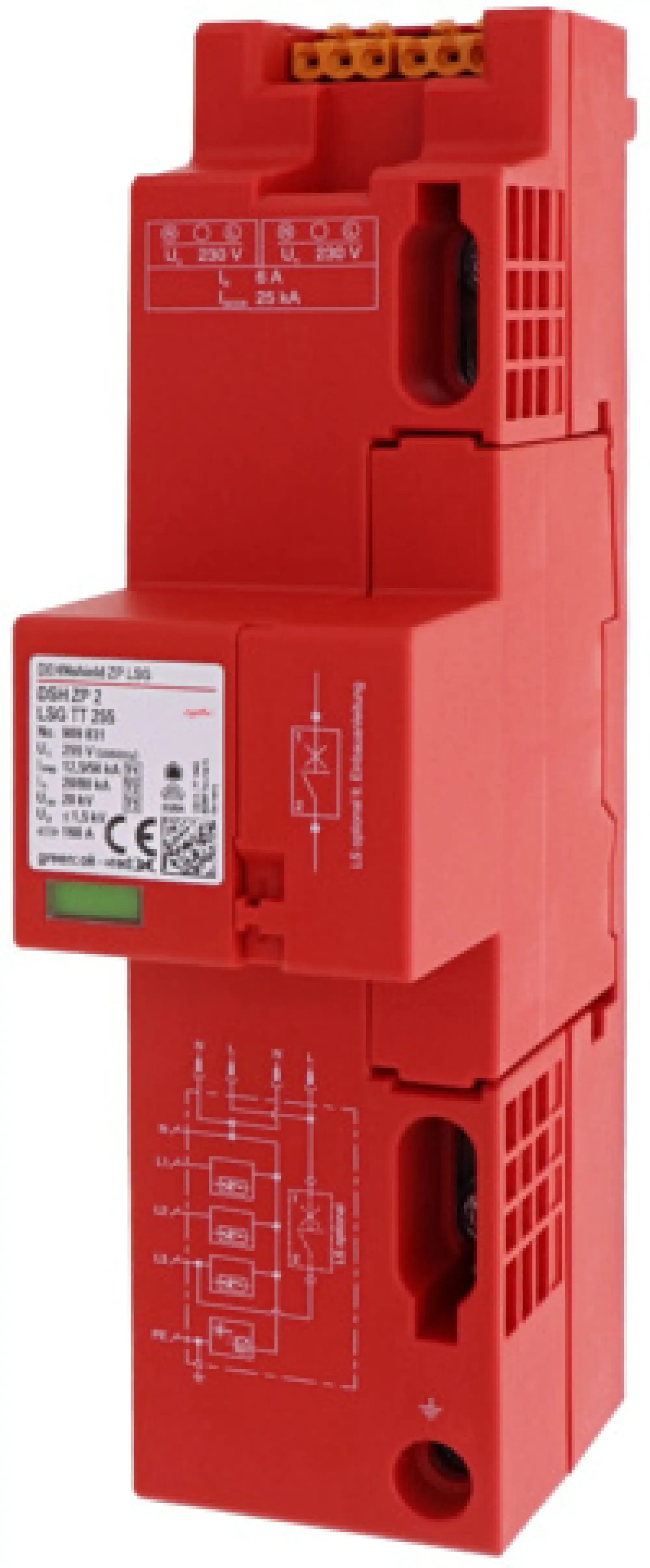

Dehn 909831 Type 1+2+3 combined arrester DEHNshield ZP 2 LSG for TT and TN-S systems
587,91 €
% 1 040,18 € (économie de 43.48%)
Disponible, délai de livraison : 2-3 Weeks
Réf. produit : WST8810209840
Manufacturer: DEHNP/N: 909831
Informations sur le produit "Dehn 909831 Type 1+2+3 combined arrester DEHNshield ZP 2 LSG for TT and TN-S systems"
Dehn Type 1+2+3 combined arrester DEHNshield ZP 2 LSG for TT and TN-S systems
Dehn 909831
EAN
Description
Type 1 + type 2 + type 3 combined arrester for TT and TN-S systems (3+1 configuration). Subsequent integration of a single-pole B6 circuit breaker for supplying the intelligent measuring system possible. Two sockets for the 230 V power supply (N and L) for the compartment for additional applications / termination point meter mounting board according to VDE-AR-N 4100 are integrated in the device; for use on the 40 mm busbar system in the main power supply system according to IEC 60634-4-44 clause 443 of buildings with external lightning protection system (class of LPS III/IV).
Documents & Téléchargements
Attributs du produit
Données techniques
| P/N (Numéro de pièce) | 909831 |
|---|---|
| ETIM | EC001457 |
| Poids | 0.661 kg |
| Poids (emballé) | 0.77 kg |
Désignations
Energietechnik Surge Protection for Power Supply Systems
