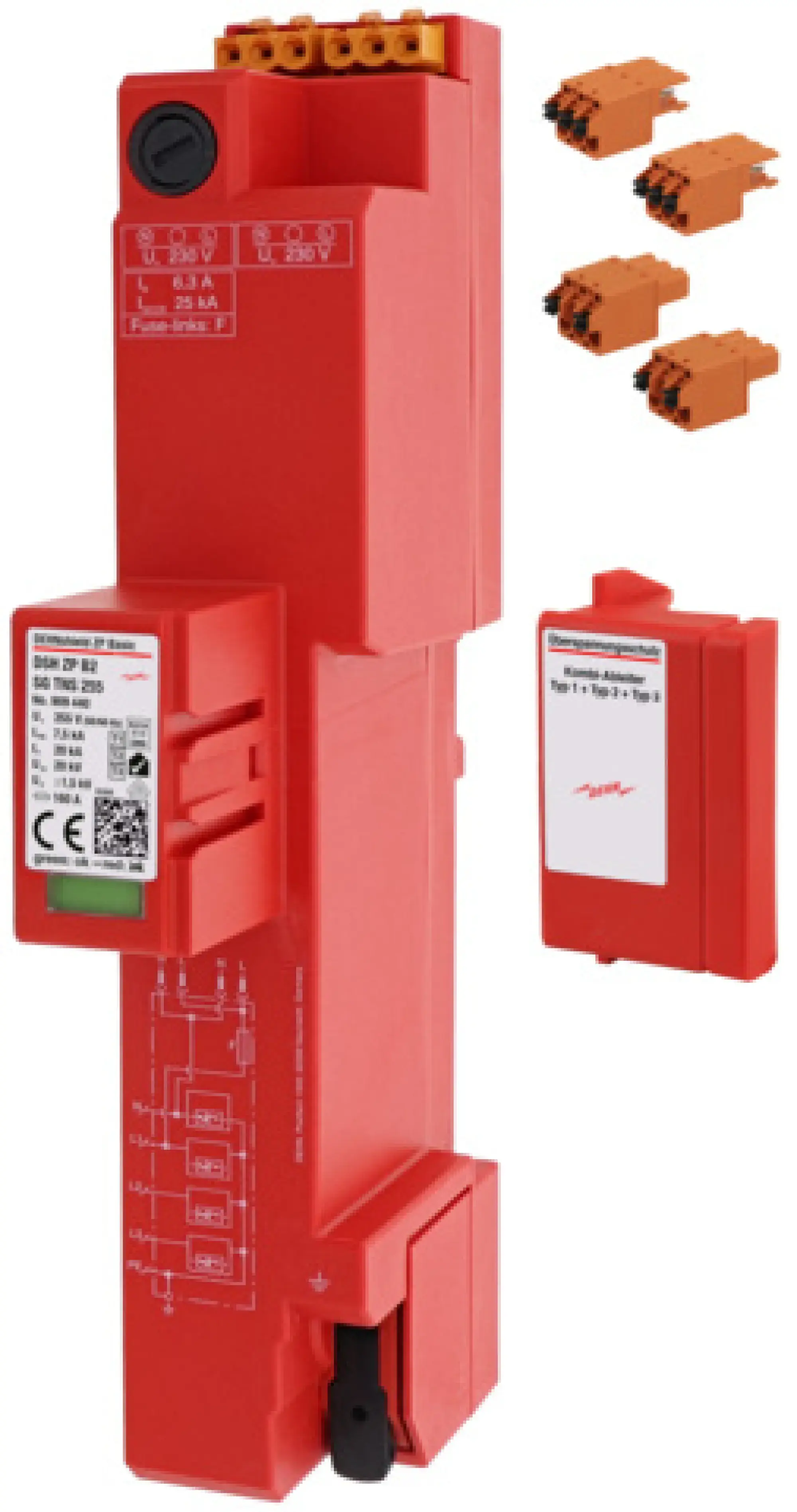

Dehn 909440 Type1+2+3 combined arrester DEHNshield ZP Basic 2 SG for TN-S systems

Tested type 1 + type 2 + type 3 combined arrester according to IEC 61643-11 for TN-S systems (4+0 configuration) including overcurrent-protected 230 V power supply (N and L) including spare fuse for the compartment for additional applications / termination point meter mounting board according to VDE-AR-N 4100; can be installed completely without tools thanks to click + power connection method for 40 mm busbar systems and push-in earthing terminal; for use in the main power supply system according to IEC 60634-4-44 clause 443 of buildings without an external lightning protection system (also in case of overhead line supply). A suitable cover clip according to DIN VDE 0603-1 for every standard meter panel and 2 x socket and 2 x plug (without connecting cables) for wiring the intelligent measuring system according to VDE-AR 4100 are included in delivery.
