KBA25ED4305TW
Schneider Electric KBA25ED4305TW CANALIS LENGTH KBA25 BUS WHITE
176,88 €
% 266,56 € (ahorro del 33.64%)
Disponible para pedir, plazo de entrega: 2-3 Semanas
Art. No: WST8810016400 P/N: KBA25ED4305TW Fabricante: Schneider Electric
Pago seguro
Envío rápido
Asesoramiento especializado
Información sobre el producto "Schneider Electric KBA25ED4305TW CANALIS LENGTH KBA25 BUS WHITE"
Schneider Electric CANALIS LENGTH KBA25 BUS WHITE
Schneider Electric KBA25ED4305TW
EAN 3606480498787
Descripción

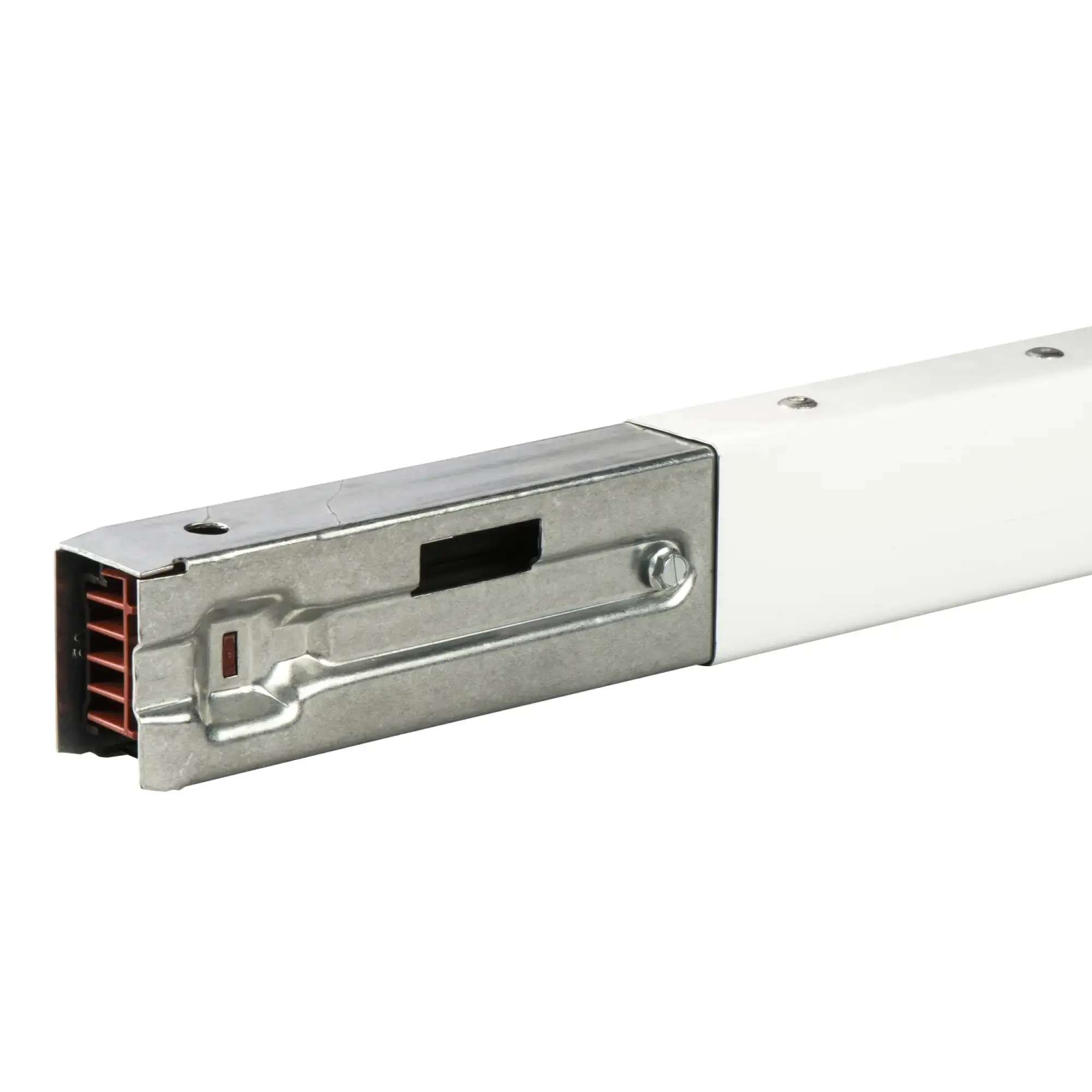

Canalis busbar trunking for KBA. It's applied to lighting and power socket distribution. The operational voltage is from 230VAC 50/60Hz to 400VAC 50/60Hz. The rated operational current is 25A at 35 ℃. It has white RAL 9003 surface treatment. Straight length busbar which mounting by clips and whose busbar trunking polarity is 3L + N + PE. Designed with 5 tap-off outlets. It provides 2 pT radiated magnetic field. Sold in lots of 6 units. It provides IP55 protection which conforming to EN/IEC 60529 standard. IK06 conforms to EN/IEC 62262. It is compliant with both IEC 60439-2 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).
Documentos y Descargas
Atributos del producto
| Ausführung | Einzel |
|---|---|
| Bemessungsstrom AC 50 Hz | 25A |
| Polzahl | 5 |
| Anzahl der Leiter (ohne Erde) | 4 |
| Flexibel | |
| Bemessungsspannung AC 50 Hz | 230V |
| Anzahl der Abgangsstellen | 5 |
| Farbe | weiß |
| RAL-Nummer | 9003 |
| Schutzart (IP) | IP55 |
| Schutzart (NEMA) | |
| Länge | 3000mm |
| Breite | 30mm |
| Höhe | 46mm |
Datos técnicos
| P/N (Número de pieza) | KBA25ED4305TW |
|---|---|
| EAN | 3606480498787 |
| ETIM | EC000091 |
| ECLASS | eClass_10_AIZ439015 |
| Peso | 2.67 kg |
| Peso (embalaje) | 2.67 kg |
Designaciones
25A Canalis IP55 KBA KBA25ED4305TW busbar trunking busway canalis lighting power socket straight length
