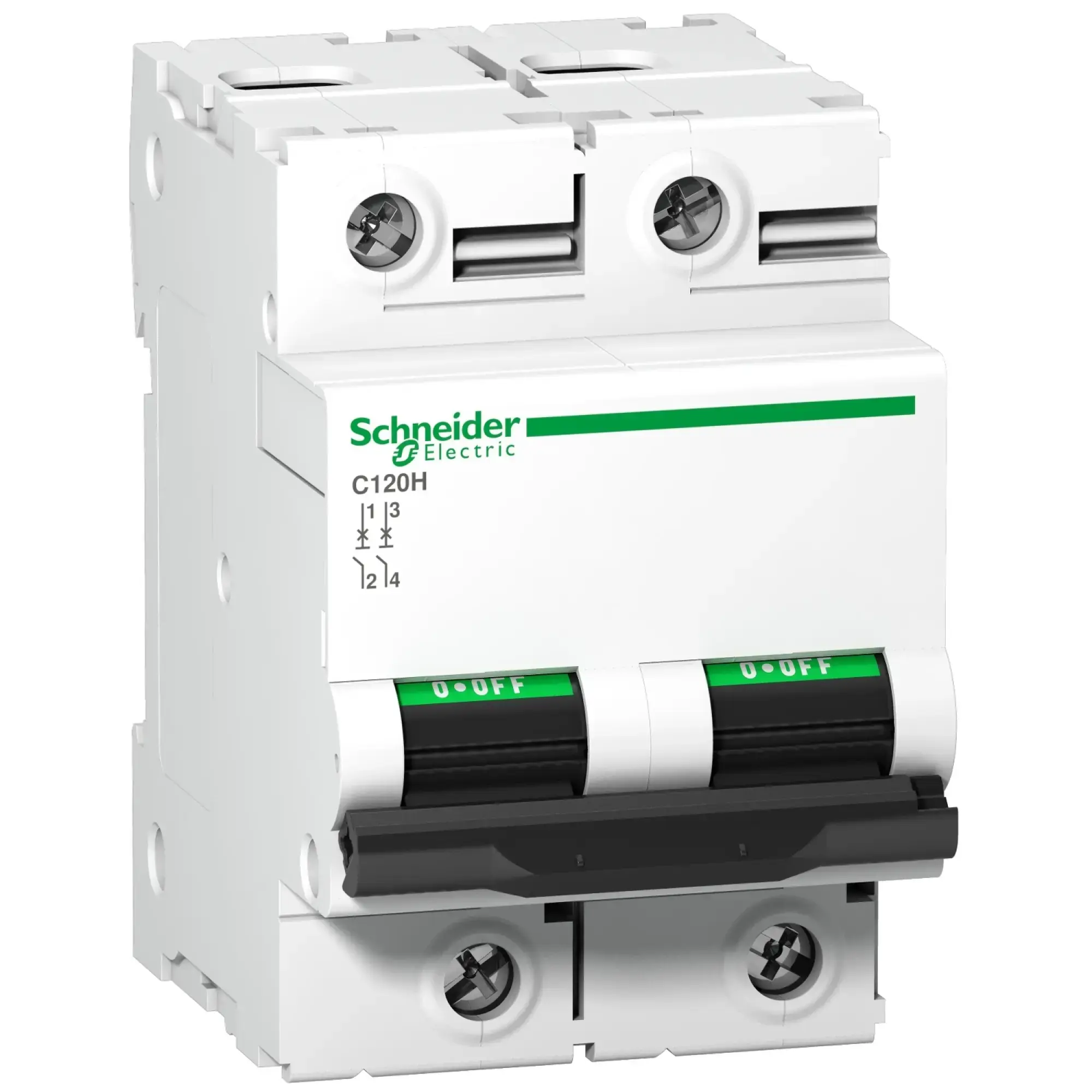

Schneider Electric A9N18501 Magnetotérmico, Acti9 C120H, 2P, 80 A, D curva, 15000 A (IEC 60898-1), 15 kA (IEC 60947-2)

Circuit breaker Acti 9 iDPN, 6kA (IEC/EN 60898-1). 3-pole+N, rated current 25A, C characteristic, 3TE, operating voltage (Ue) 400V AC, insulation voltage (Ui) 440V AC. Protection against short circuit and overload in electrical systems where the neutral conductor is also switched. The very compact design allows for a high packing density in the distribution board. Technology of the tripping unit- thermomagnetic. Can be combined with residual current devices. Additional modular accessories (optional)- display of switching position, fault indication, shunt trip, under-voltage trip, over-voltage trip. Colour RAL 9003. The iDPN circuit breaker complies with the following standards: IEC/EN 60898-1.
