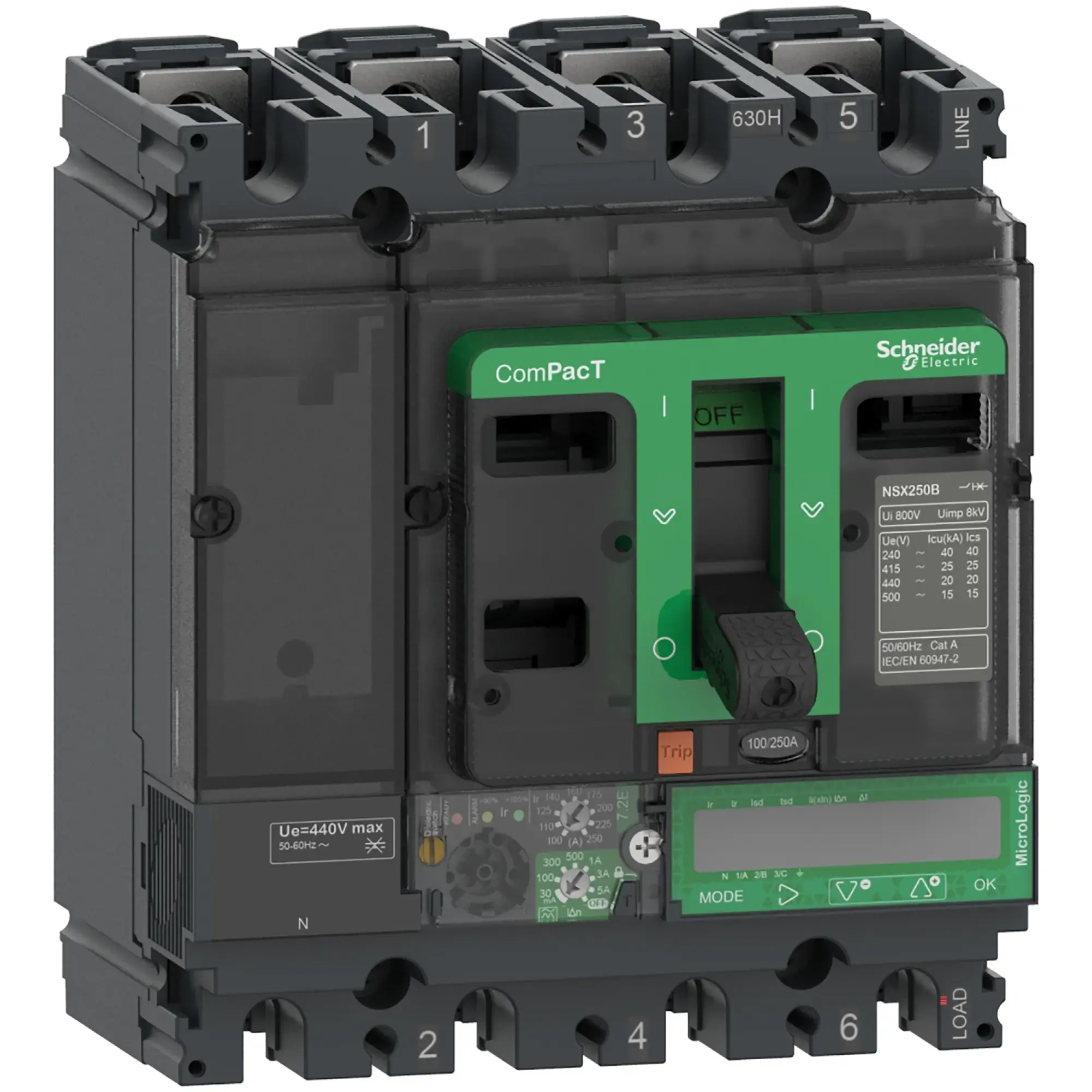

Schneider Electric C25F47E250 Interruttore, ComPacT NSX250F, 36kA/415VAC, 4 poli, Sganciatore Micrologic Vigi 7.2E 250A

The ComPacT NSX250F is a complete, space-saving and optimized for switching capacity, fixed 4P3D compact circuit breaker. It is an optimal choice for all standard and special applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operating voltage is 440VAC 50/60Hz. This product includes an electronic MicroLogic 7.2 E Vigi trigger with a rated current of 250 A and integrated adjustable residual current protection. The MicroLogic 7.2 E Vigi trigger offers adjustable long-time, short-time and instantaneous protection. MicroLogic 7.2 E Vigi features an integrated display device for fine-tuning and displaying energy (energy meter). This 4-pole version (140mm x 161mm x 86mm) comes with a variety of optional features and accessories. It complies with international standards (IEC 60947), CCC, EAC, and marine specifications. ComPacT NSX250F is part of the EcoStruxure Power architecture by Schneider Electric.
