C25F3TM250

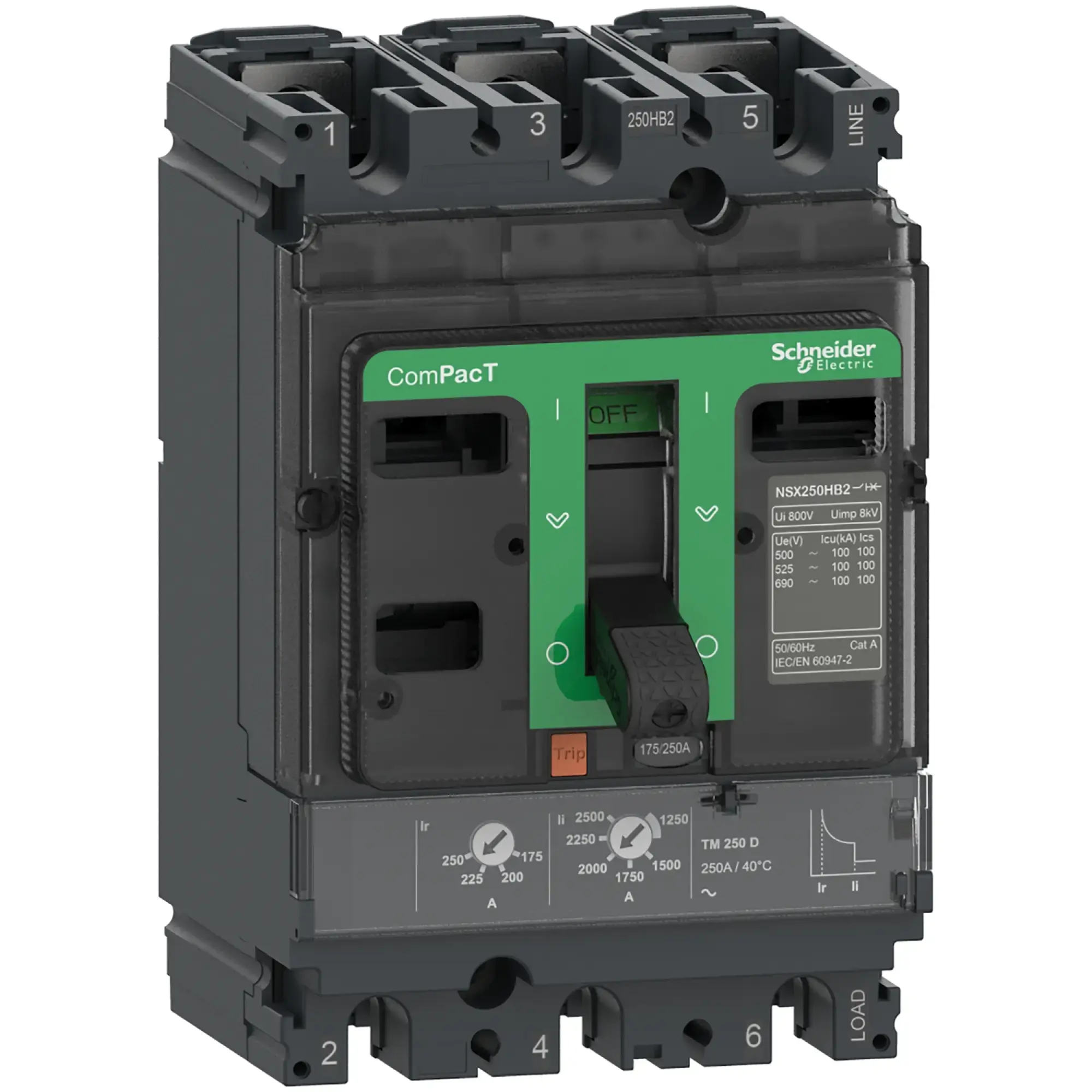

Schneider Electric C25F3TM250 Interruttore, ComPacT NSX250F, 36kA/415VAC, 3 poli, Sganciatore TMD 250A

1.378,20 €

Disponibile, tempi di consegna: 2-3 Giorni lavorativi

Art. No: WST8810013472 P/N: C25F3TM250 Produttore: Schneider Electric

Pagamento sicuro

Spedizione rapida

Consulenza specializzata

Info sui prodotti "Schneider Electric C25F3TM250 Interruttore, ComPacT NSX250F, 36kA/415VAC, 3 poli, Sganciatore TMD 250A"

Schneider Electric Interruttore, ComPacT NSX250F, 36kA/415VAC, 3 poli, Sganciatore TMD 250A

Schneider Electric C25F3TM250

EAN 3606481997142

Apri la visualizzazione a schermo intero a 360°

Descrizione

Deze ComPacT NSX250F is een complete 3P 3d vaste stroomonderbreker die is ontworpen om de ruimte en de onderbrekingscapaciteit te optimaliseren. Het is de optimale keuze voor alle standaard- en specifieke toepassingen. De uitschakelcapaciteit (Icu) is 36 kA rms bij 415VAC 50/60Hz. De operationele spanning is 690VAC 50/60Hz. In dit product is een thermisch-magnetische trip unit (TMD) met een 250A classificatie geïntegreerd. De TMD-uitschakeleenheid biedt een instelbare thermische overbelastingsbeveiliging en een vaste magnetische beveiliging. Deze 3-polige versie (105 x 161 x 86 mm) wordt geleverd met diverse optionele functies en accessoires. Het voldoet aan internationale normen (IEC 60947), CCC, EAC en maritieme specificaties. ComPacT NSX250F maakt deel uit van de EcoStruxure Power-architectuur van Schneider Electric.

Documenti e download

Attributi del prodotto

Bemessungsdauerstrom Iu	250A
Bemessungsspannung	690V
Bemessungsgrenzkurzschlussausschaltstrom Icu bei 400 V	36kA
Überlastauslöser Stromeinstellung	175A
Einstellbereich des kurzzeitverzögerten Kurzschlussauslösers	1250A
Einstellbereich des unverzögerten Kurzschlussauslösers	1250A
Verlustleistung	56.25W
Gerätebauart	Einbaugerät Festeinbautechnik
Integrierter Erdschlussschutz
Anschlussart Hauptstromkreis	Schraubanschluss
Geeignet für Hutschienenmontage
Hutschienenmontage optional	1
Anzahl der Hilfskontakte als Öffner	0
Anzahl der Hilfskontakte als Schließer	0
Anzahl der Hilfskontakte als Wechsler	0
Mit Ausgelöstmelder	1
Mit integriertem Unterspannungsauslöser
Polzahl	3
Position des Anschlusses für Hauptstromkreis	vorne
Ausführung des Betätigungselements	Knebel
Komplettgerät mit Schutzeinheit	1
Motorantrieb integriert
Motorantrieb optional	1
Schutzart (IP)	IP40

Dati tecnici

P/N (Codice articolo)	C25F3TM250
EAN	3606481997142
ETIM	EC000228
SCIP	3874e08b-fcb8-4aa9-87c4-d36abebf2833
ECLASS	eClass_10_AJZ716013
Peso	1.88 kg
Peso (pacco)	1.96 kg

Designazioni

250 A 3 Poles 415 VAC C25F3TM250 Circuit Breaker Compact NSX TMD
