C2536E250

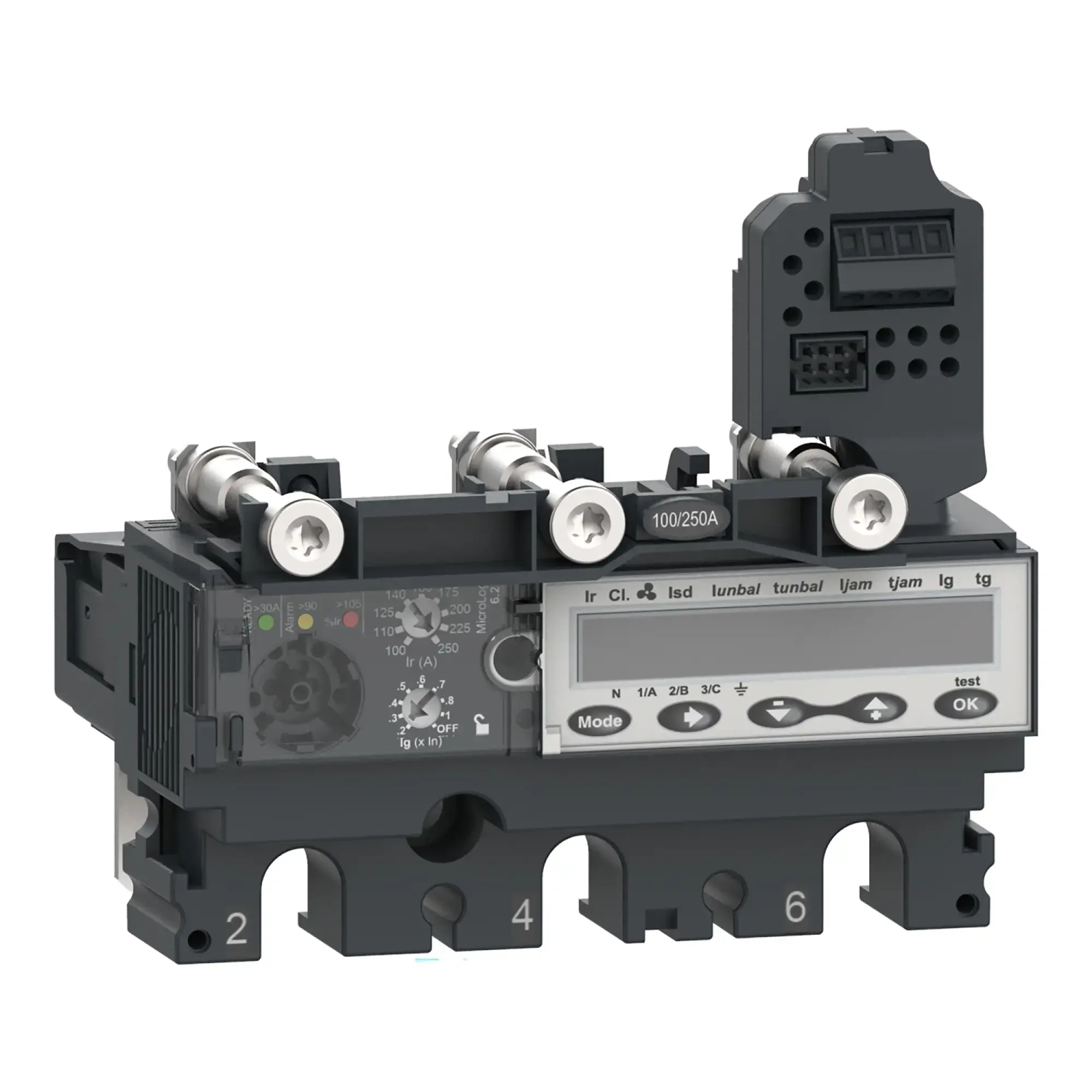

Schneider Electric C2536E250 Sganciatore MicroLogic 6.2E, ComPacT NSX250, 3 poli, protezioni elettroniche di base e per correnti differenziali, misuratore di energia, 250A

1.921,27 €

Ordinabile ora, tempo di consegna: 7-10 Giorni lavorativi

Art. No: WST8810013403 P/N: C2536E250 Produttore: Schneider Electric

Pagamento sicuro

Spedizione rapida

Consulenza specializzata

Info sui prodotti "Schneider Electric C2536E250 Sganciatore MicroLogic 6.2E, ComPacT NSX250, 3 poli, protezioni elettroniche di base e per correnti differenziali, misuratore di energia, 250A"

Schneider Electric Sganciatore MicroLogic 6.2E, ComPacT NSX250, 3 poli, protezioni elettroniche di base e per correnti differenziali, misuratore di energia, 250A

Schneider Electric C2536E250

EAN 3606481999733

Apri la visualizzazione a schermo intero a 360°

Descrizione

This electronic trip unit MicroLogic 6.2 E (Energy) is a 3-pole, 3d trip unit that is used in ComPacT NSX 250 circuit breakers. This electronic trip unit with a rated current of 250 A is the best choice for all standard and special applications. It features an adjustable long-time protection against overload. It also offers an adjustable short-time delay short-circuit protection and immediate short-circuit protection. It features an additional and adjustable ground fault protection. MicroLogic 6.2 E indicates overloads with alarm LEDs. The green Ready LED flashes when the circuit breaker is ready to trip. MicroLogic 6.2 E is equipped with a display module that enables energy measurements and allows fine adjustment. This product is part of our EcoStruxure Power architecture, provided it is combined with the basic switch PowerTag NSX and ComPacT NSX.

Documenti e download

Attributi del prodotto

Ausführung des Motorschutzes	elektronischer Auslöser
Polzahl	3
Bemessungsdauerstrom Iu	250A
Bemessungsschaltstrom	250A
Überlastauslöser Stromeinstellung	100A
Kurzschlussauslöserfunktion	verzögert
Stromeinstellung verzögerter Kurzschlussauslöser	150A
Stromeinstellung unverzögerter Kurzschlussauslöser	375A
Mit Erdschlussschutzfunktion	1
Externe Stromversorgung erforderlich	1
Spannungsart der Versorgungsspannung	DC
Versorgungsspannung AC 50 Hz	-V
Versorgungsspannung AC 60 Hz	-V
Versorgungsspannung DC	24V
Anzahl der Hilfskontakte als Öffner	0
Anzahl der Hilfskontakte als Schließer	0
Anzahl der Hilfskontakte als Wechsler	0
Spannungsart der Betriebsspannung	AC
Betriebsspannung AC 50 Hz	690V
Betriebsspannung AC 60 Hz	690V
Betriebsspannung DC	-V
Breite	104.7mm
Höhe	96.9mm
Tiefe	90.3mm

Dati tecnici

P/N (Codice articolo)	C2536E250
EAN	3606481999733
ETIM	EC000617
SCIP	9cd110c5-7f48-4bb3-91b8-ba77f361496d
ECLASS	eClass_10_AKF008013
Peso	0.56 kg
Peso (pacco)	0.56 kg

Designazioni

250 A 3 poli C2536E250 Compact NSX MicroLogic 6.2 interruttore
