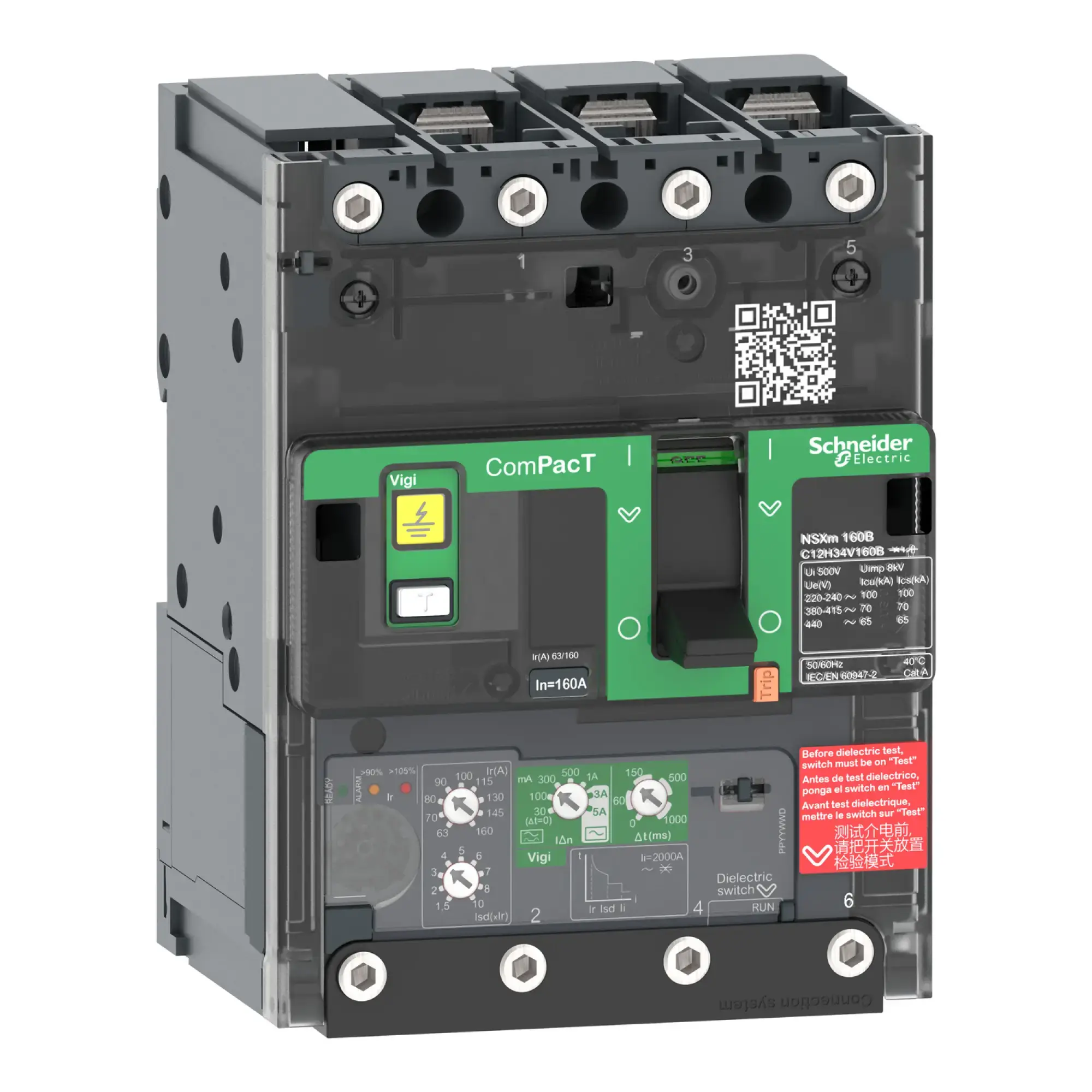

Schneider Electric C12B34V160B Interruttore, ComPacT NSXm 160B, 25kA/415VAC, 3 poli, Sganciatore MicroLogic 4.1 160A, busbar/connettori

The ComPacT NSXm160B is a complete 3P-fixed mount circuit breaker designed for space optimization and switching capacity. The breaking capacity (Icu) is 25 kA RMS at 415 VAC, 50/60 Hz. The operating voltage is 440 VAC 50/60 Hz. It introduces new features, such as EverLink connection technology. It provides built-in DIN rail and plate mounting capabilities as well as additional equipment with spring terminal blocks that are externally visible. This 3-pole residual current circuit breaker (RCB) is one of the smallest on the market. The dimensions are 108 mm (W) x 144 mm (H) x 80 mm (D). It ensures compliance with international standards (IEC 60947/CCC/EAC) and marine specifications.
