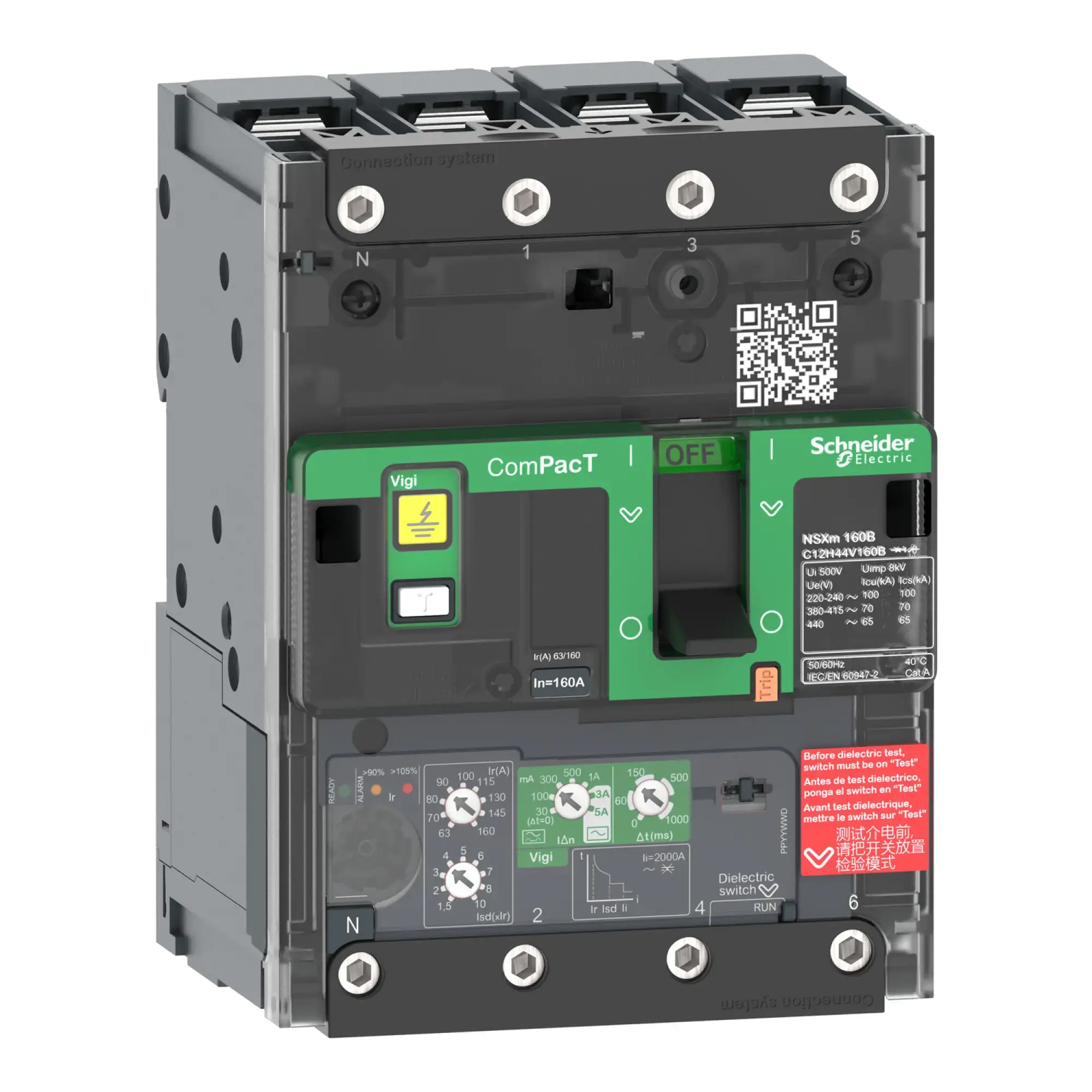

Schneider Electric C11N44V100B Interruttore, ComPacT NSXm 100N, 50kA/415VAC, 4 poli, Sganciatore MicroLogic 4.1 100A, busbar/connettori

ComPacT NSXm100N is a complete 4P fixed-mount circuit breaker developed to optimize space requirements and breaking capacity. The breaking capacity (Icu) is 50 kA rms at 415 VAC, 50/60 Hz. The operating voltage is 440 VAC 50/60 Hz. It introduces new features such as the EverLink terminal technology. It offers built-in DIN rail and panel mounting capabilities, as well as additional equipment with spring-clamp terminals, which are externally visible. This 4-pole residual current circuit breaker (RCBO) is one of the smallest on the market. The dimensions are 108 mm (W) x 144 mm (H) x 80 mm (D). It ensures conformity with international standards (IEC 60947/CCC/EAC) and marine specifications.
